Repair and Diagnosis: Transmission: Clutches: Overhaul

NOTE: If clutch tube, hose or clutch master cylinder has been removed, or if clutch pedal has become spongy, bleed system using only DOT 3 or DOT 4 brake fluid. For exploded view of clutch master cylinder and clutch release cylinder, see Fig 1 .

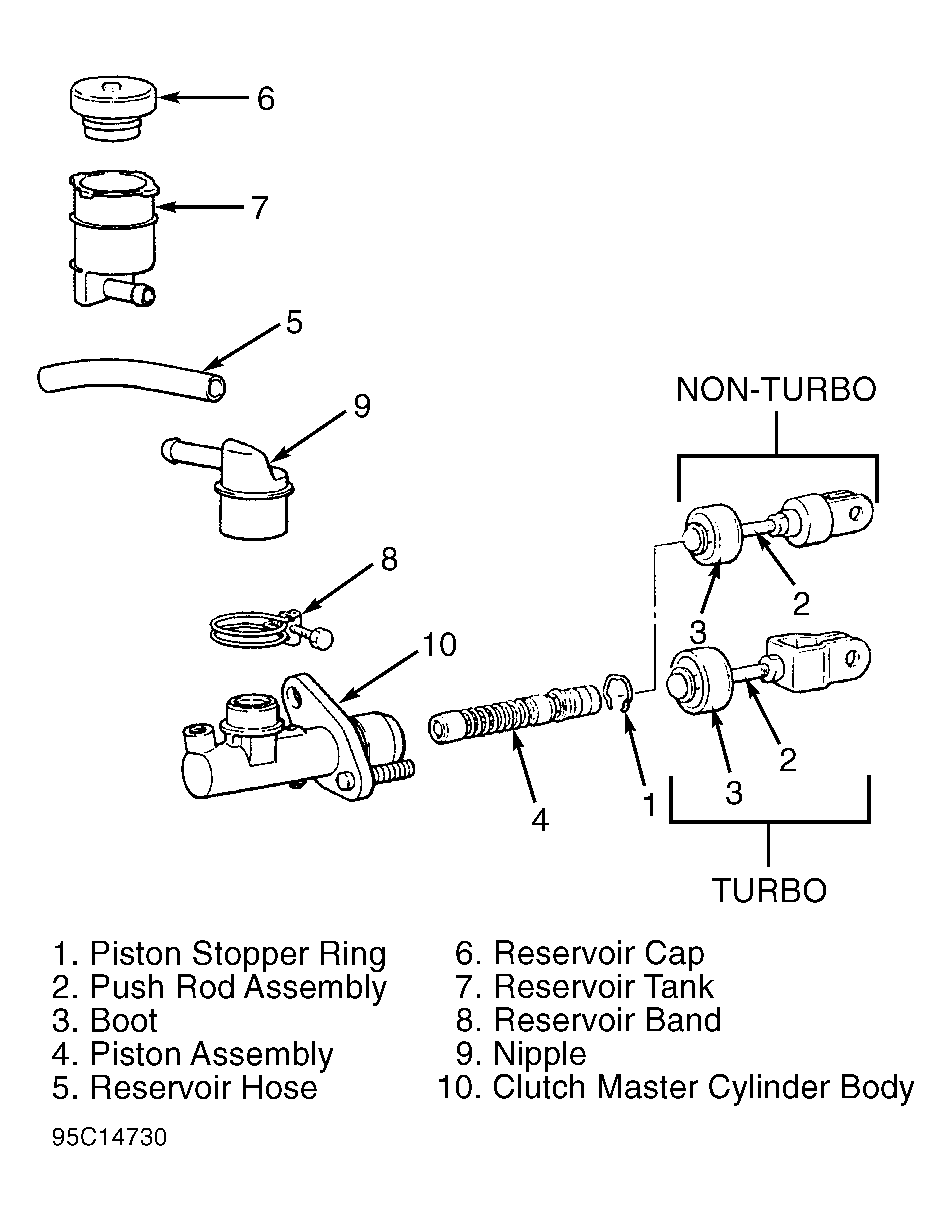

Fig 1: Exploded View of Clutch Master Cylinder

Courtesy of CHRYSLER CORP.
