Power Steering Pump

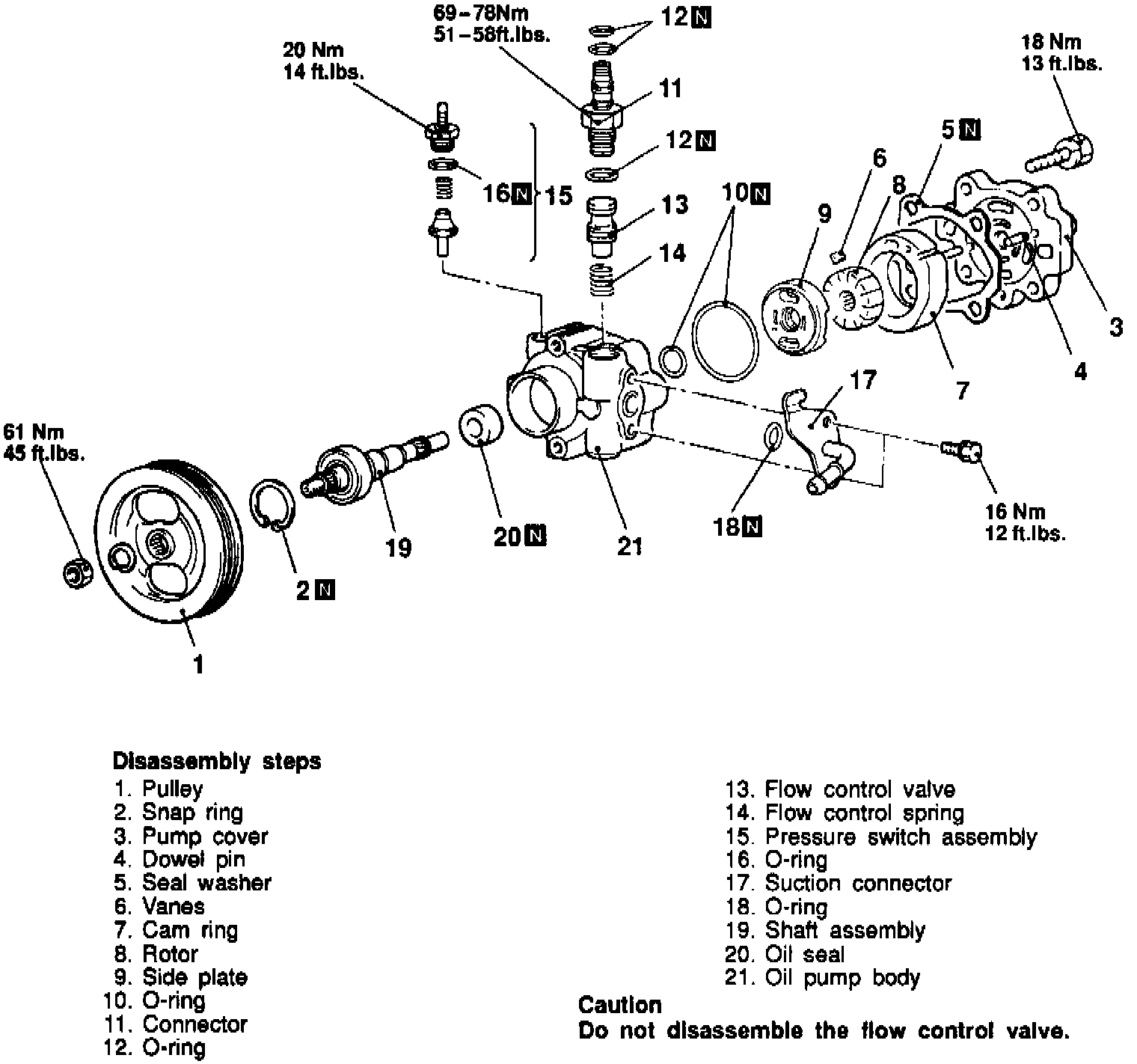

Fig.2 Exploded View Of Power Steering Pump.:









A vane type oil pump with a fluid flow control system is used on this model.
