Alternator: Service and Repair

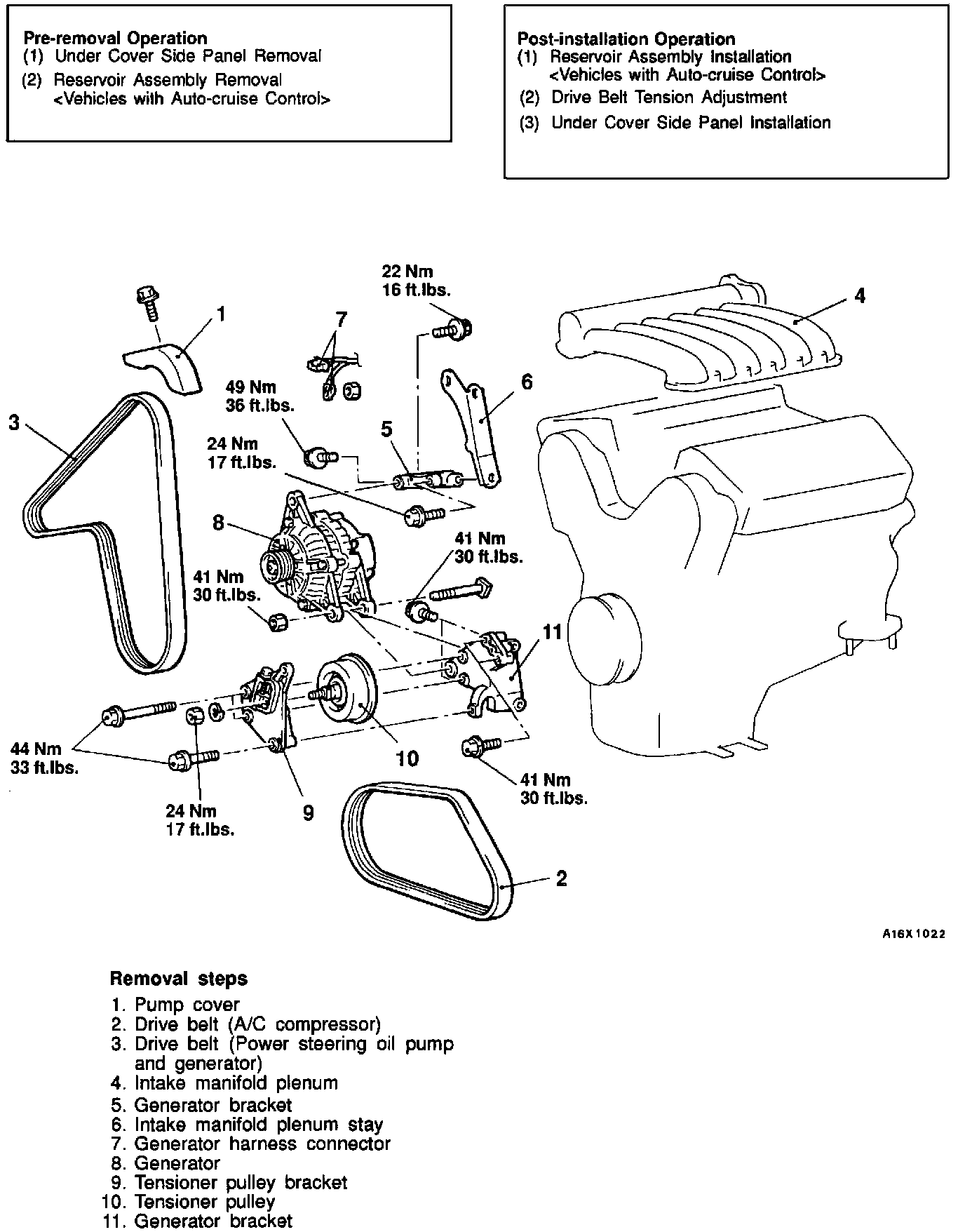

Generator - Removal And Installation:

Pre-Removal Operation
1. Under cover side panel
2. Reservoir Assembly

REMOVE
1. Pump cover
2. Drive belt (A/C compressor)
3. Drive belt (Power steering oil pump and generator)
4. Intake manifold plenum
5. Generator bracket
6. Intake manifold plenum stay
7. Generator harness connector
8. Generator
9. Tensioner pulley bracket
10. Tensioner pulley
11. Generator bracket

INSTALL
1. Generator bracket
2. Tensioner pulley
3. Tensioner pulley bracket
4. Generator
5. Generator harness connector
6. Intake manifold plenum stay
7. Generator bracket
8. Intake manifold plenum
9. Drive belt (Power steering oil pump and generator)
10. Drive belt (A/C compressor)
11. Pump cover

Post-Installation Operation
1. Reservoir Assembly
2. Drive Belt Tension Adjustment
3. Under cover side panel
