Amperage Output Test

NOTE: Ammeter with inductive pick-up clamp-type test lead is recommended. Perform test soon after starting engine, as charging amperage will drop quickly.

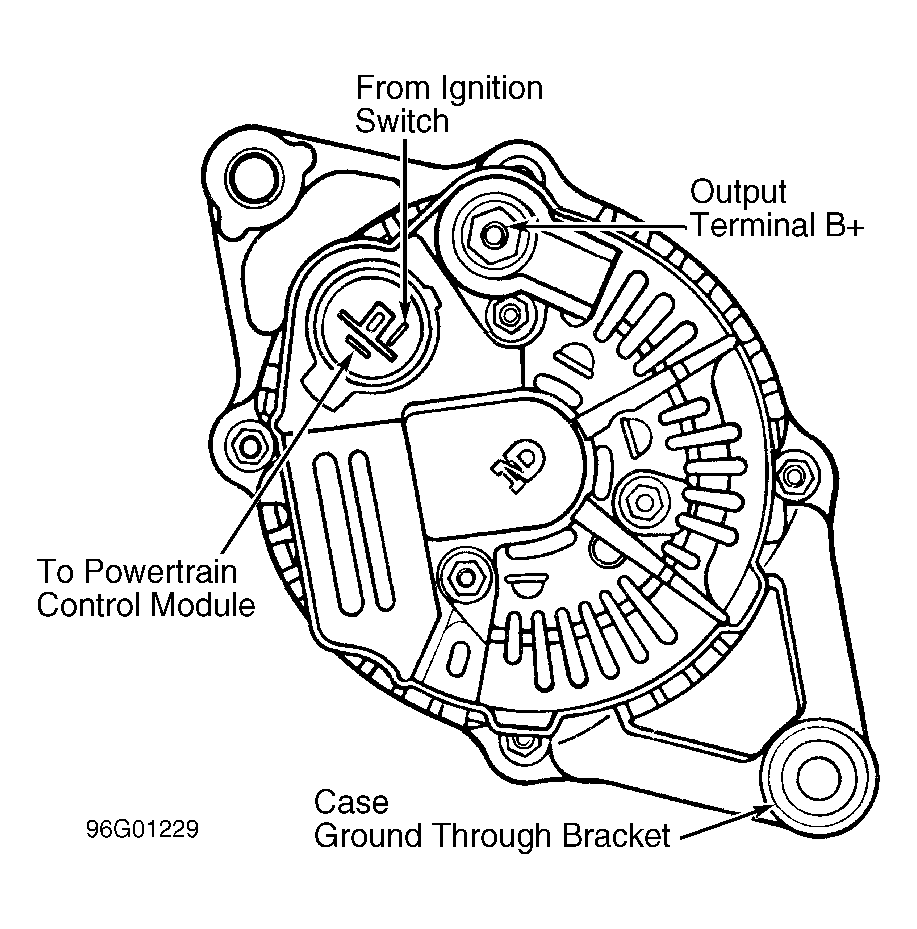

Disconnect negative battery cable. Disconnect generator output wire from generator terminal "B". See Figure . Connect ammeter in series between terminal "B" and disconnected output wire. Connect voltmeter between terminal "B" and ground. Reconnect negative battery cable.
Voltmeter should read battery voltage. If voltmeter reads zero volts, check for an open in wire between generator terminal "B" and positive battery terminal, a blown fusible link or a poor ground connection.
Turn on all electrical accessories. Start engine and accelerate to 2500 RPM. Read maximum amps output. If generator amps output is within specification, generator is functioning properly. See GENERATOR SPECIFICATIONS table.

GENERATOR SPECIFICATIONS ⁽¹⁾

Application

Rated Output

Minimum Output

Concorde, Intrepid, LHS, New Yorker & Vision

2.0L, 3.3L & 3.5L

90 Amps

63 Amps

⁽¹⁾	At 2500 RPM.
