Catalytic Converter: Service and Repair






REMOVAL AND INSTALLATION
Pre-Removal Remove Under Cover

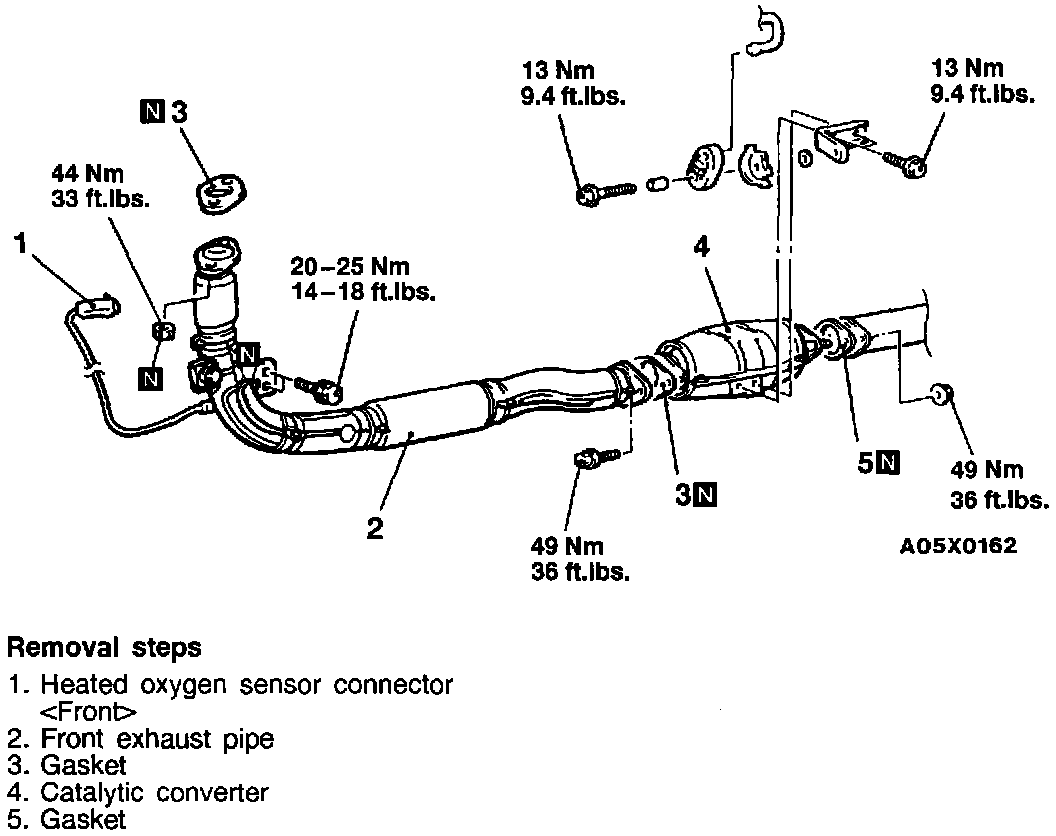

Removal Steps
1. Heated oxygen sensor connector
2. Front exhaust pipe
3. Gasket
4. Catalytic converter
5. Gasket
6. Reverse procedure to install

Post installation Install Under Cover

INSPECTION
Inspect for damage, cracking or deterioration.
- Replace the catalytic converter if obvious damage is found.
