Ignition System: Service and Repair

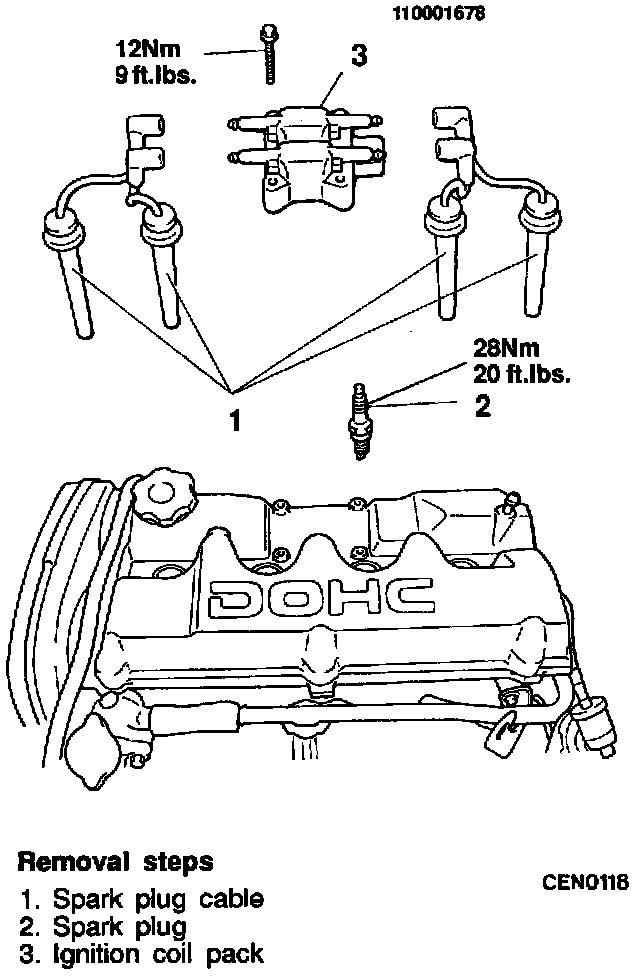

Ignition System - Removal And Installation:





REMOVE
1. Spark plug cable.
2. Spark plug.
3. Ignition coil pack.

INSTALL
1. Ignition coil pack.
2. Spark plug.
3. Spark plug cable.
