Alternator: Service and Repair

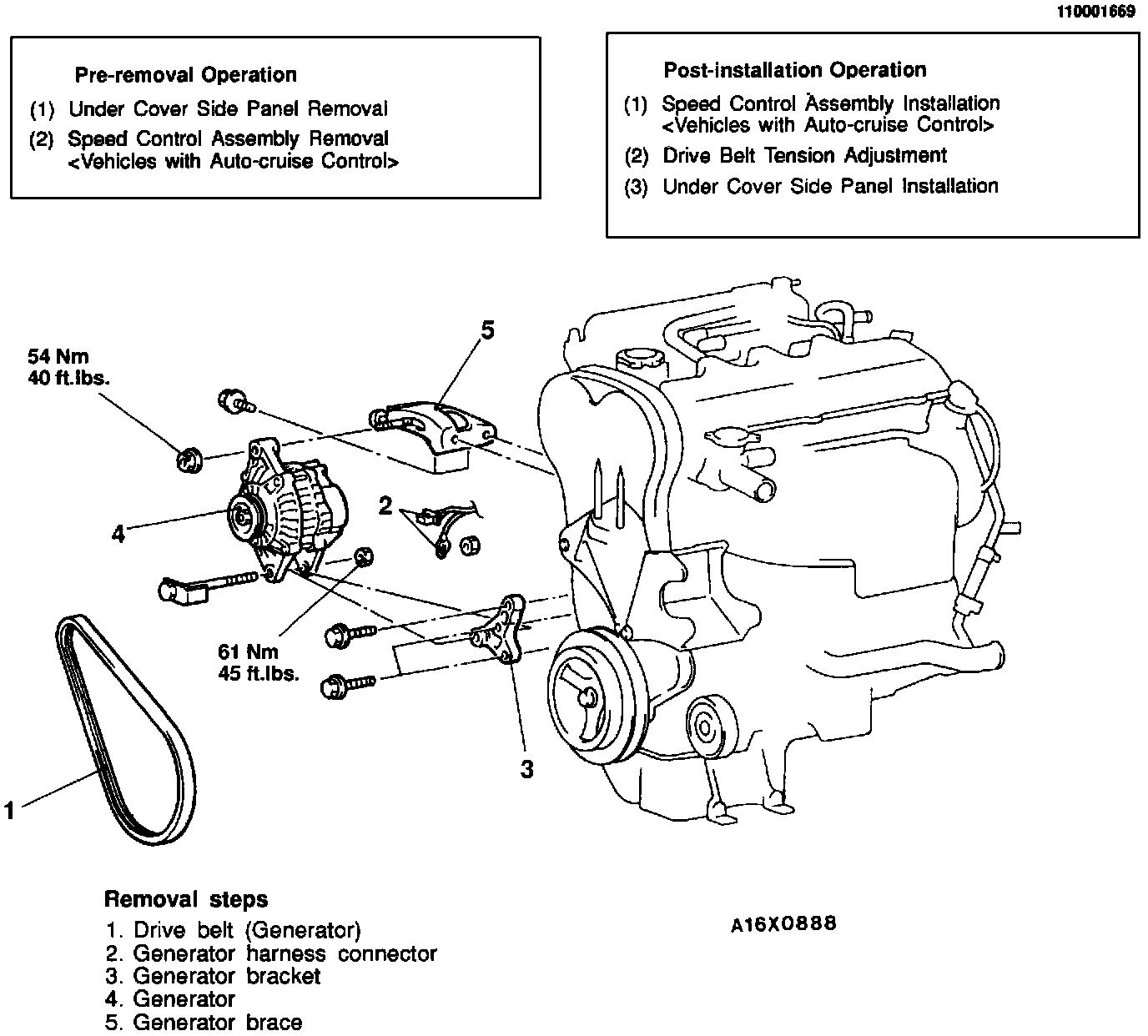

Generator - Removal And Installation:

Pre-Removal
1. Under cover side panel
2. Speed Control Assembly

REMOVE
1. Drive belt (Generator)
2. Generator harness connector
3. Generator bracket
4. Generator
5. Generator brace

INSTALL
1. Generator brace
2. Generator
3. Generator bracket
4. Generator harness connector
5. Drive belt (Generator)

Post-Installation
1. Under cover side panel
2. Drive Belt Tension Adjustment
3. Speed Control Assembly
