Up-Stop Adjustment

Remove door panel, if not already removed. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION. Loosen up-stop nut and bolt. See Fig 1 and Fig 2 . Remove weatherstrip only at area being adjusted and measured. Close door and raise window. Adjust up-stop until window is at proper height. See Fig 3 . Tighten up-stop nut. Check that forward up-stop fully contacts hook on window. Adjust contact bolt on forward up-stop as necessary. Install door trim panel.

Fig 1: Adjusting Front Window Forward Up-Stop

Courtesy of CHRYSLER CORP.

Fig 2: Adjusting Front Window Rear Up-Stop

Courtesy of CHRYSLER CORP.

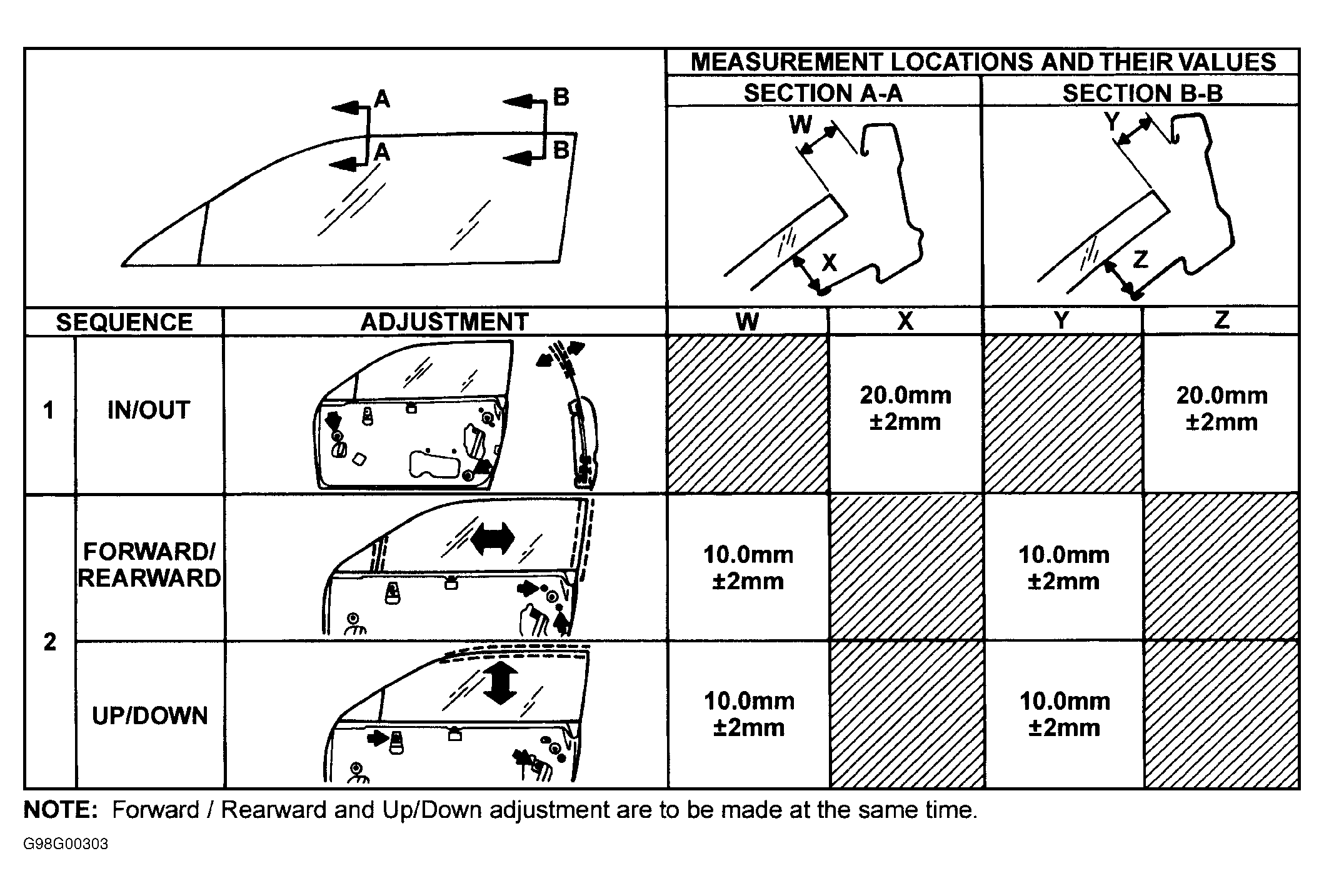

Fig 3: Front Window Adjustment Measurements

Courtesy of CHRYSLER CORP.
