Engine Controls/Fuel System - Manual Revisions

NUMBER: 26-01-99C

GROUP: Miscellaneous

DATE: January, 1999

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1998 Powertrain 2.5L. 3.9L, 5.2L, 5.9L, 8.0 SFI, Mechanical Injected Diesel Diagnostic Manual - Publication Number 81-699-97027

DESCRIPTION OF CHANGES

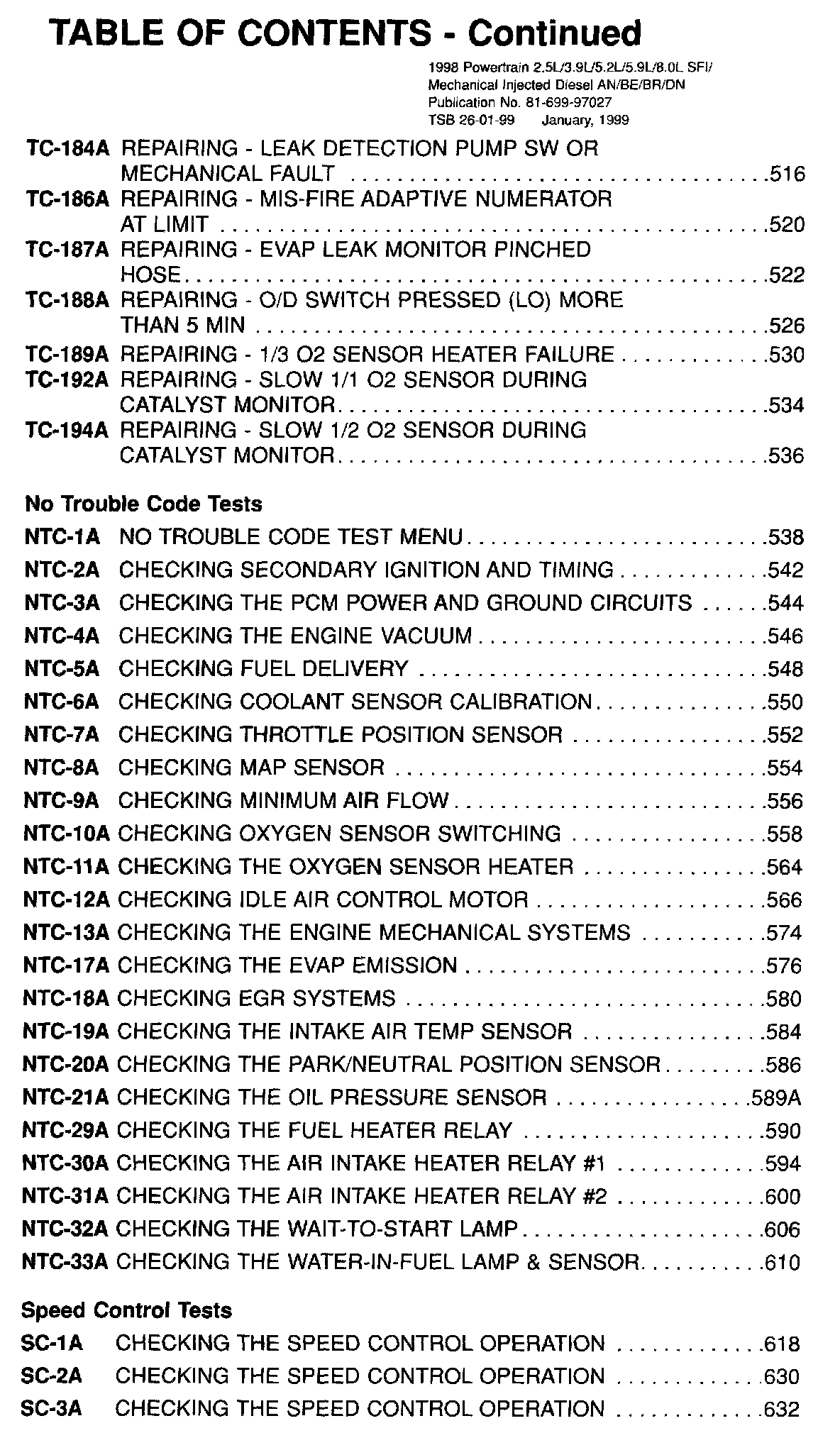

Revision to the Table of Contents





vi

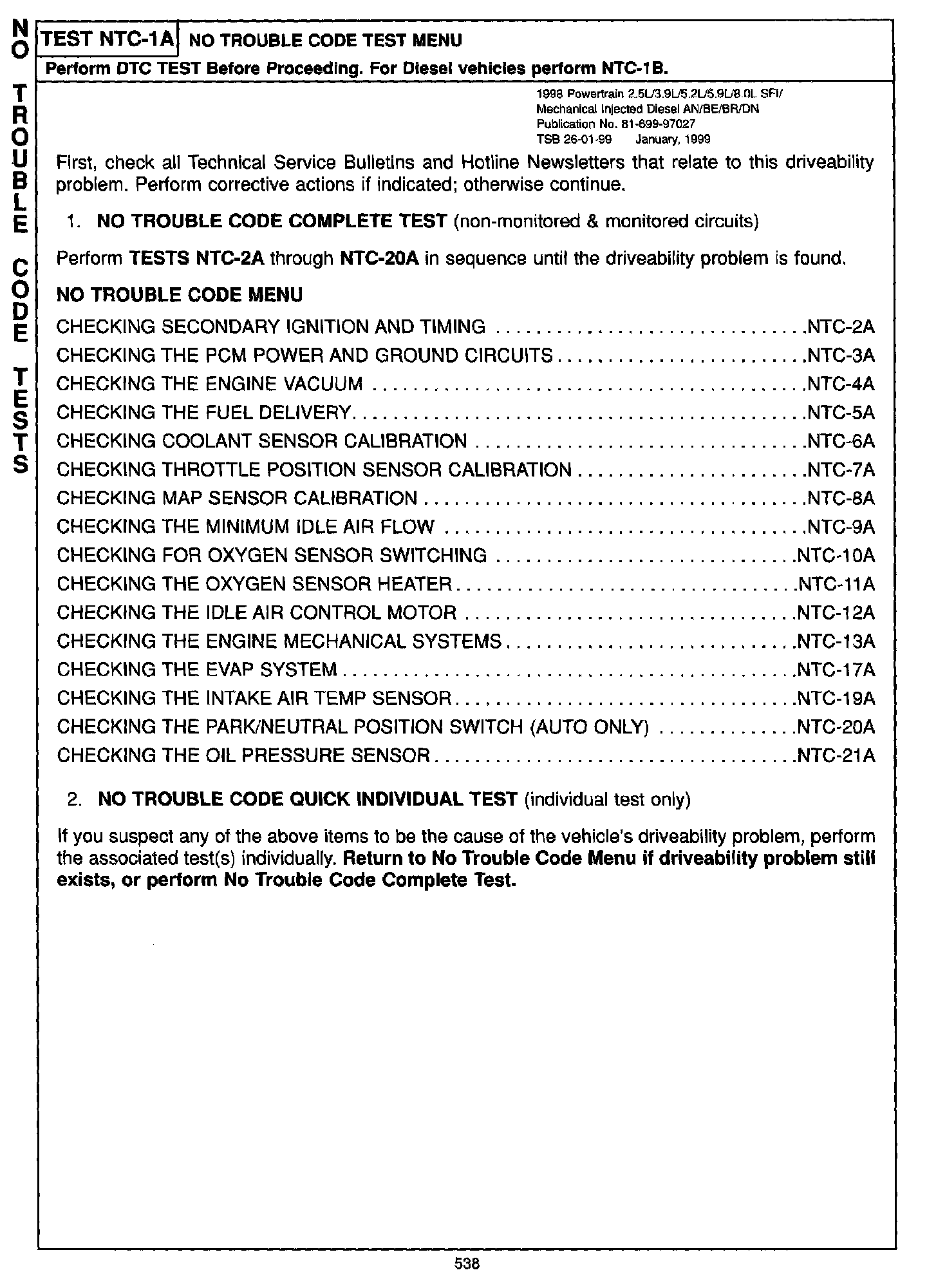

Revision to the Trouble Code Test menu





538

Revision to the Oil Pressure Sensor test


589, 589A through 589F

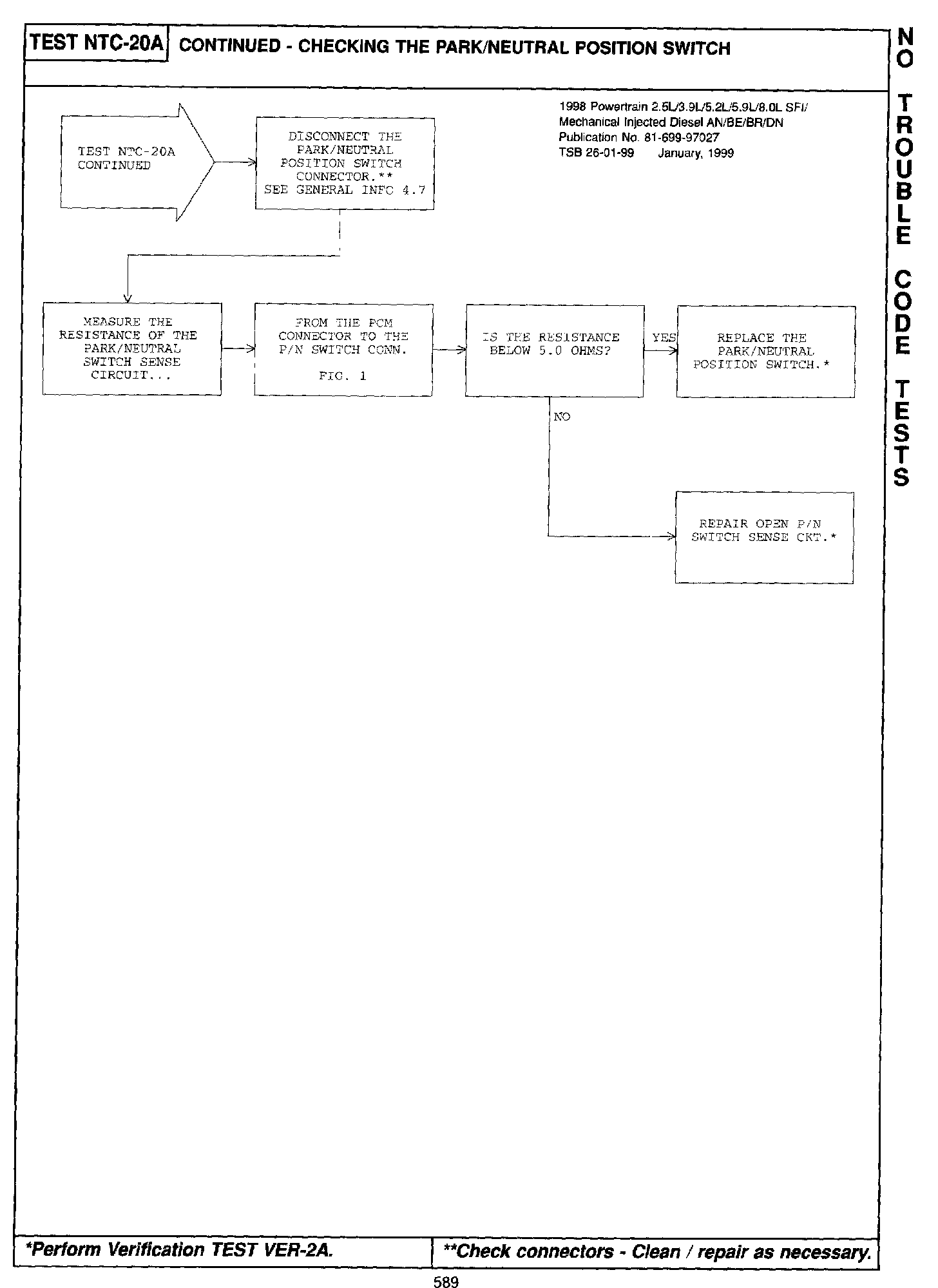

589

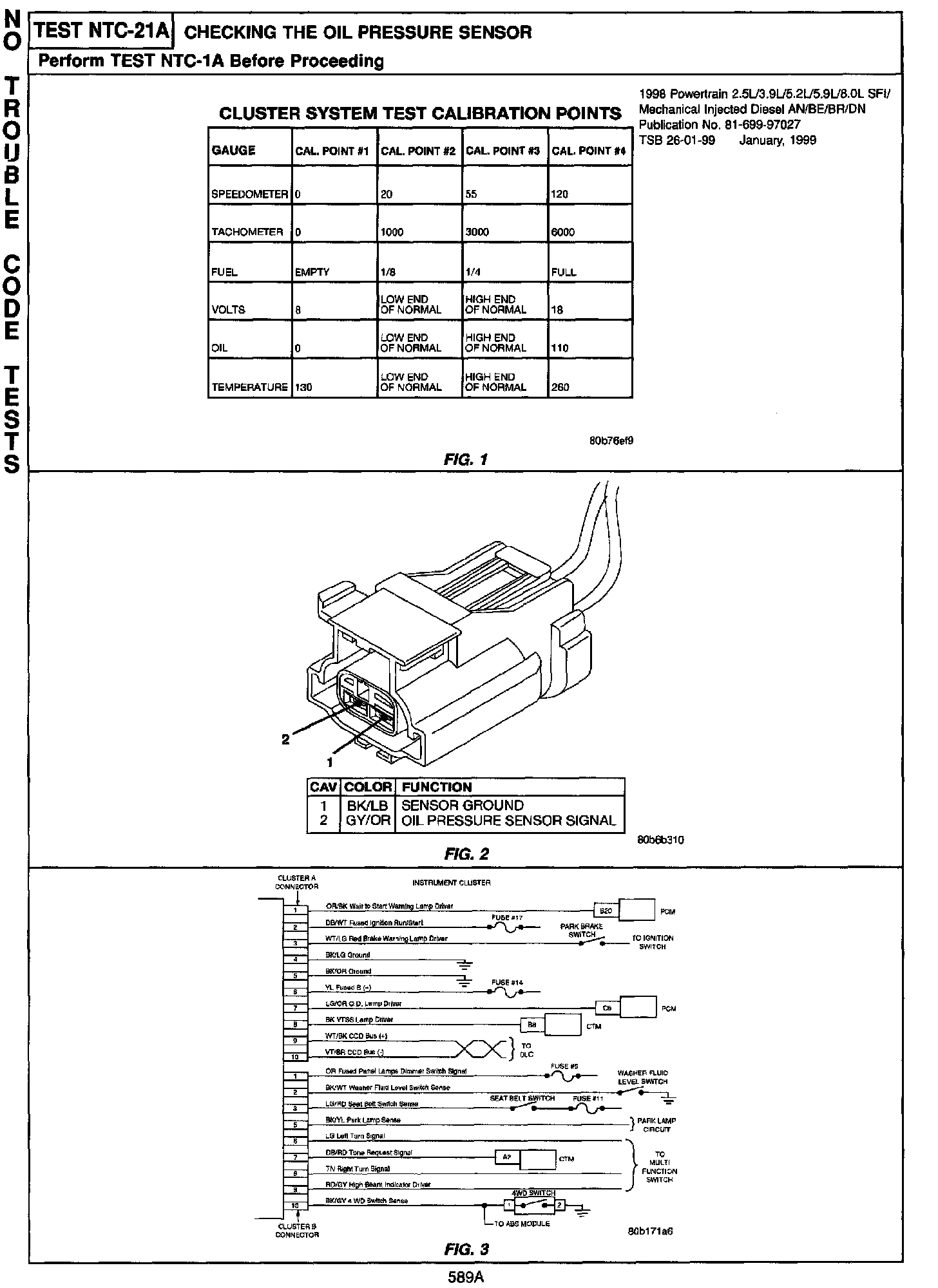

589A





589B

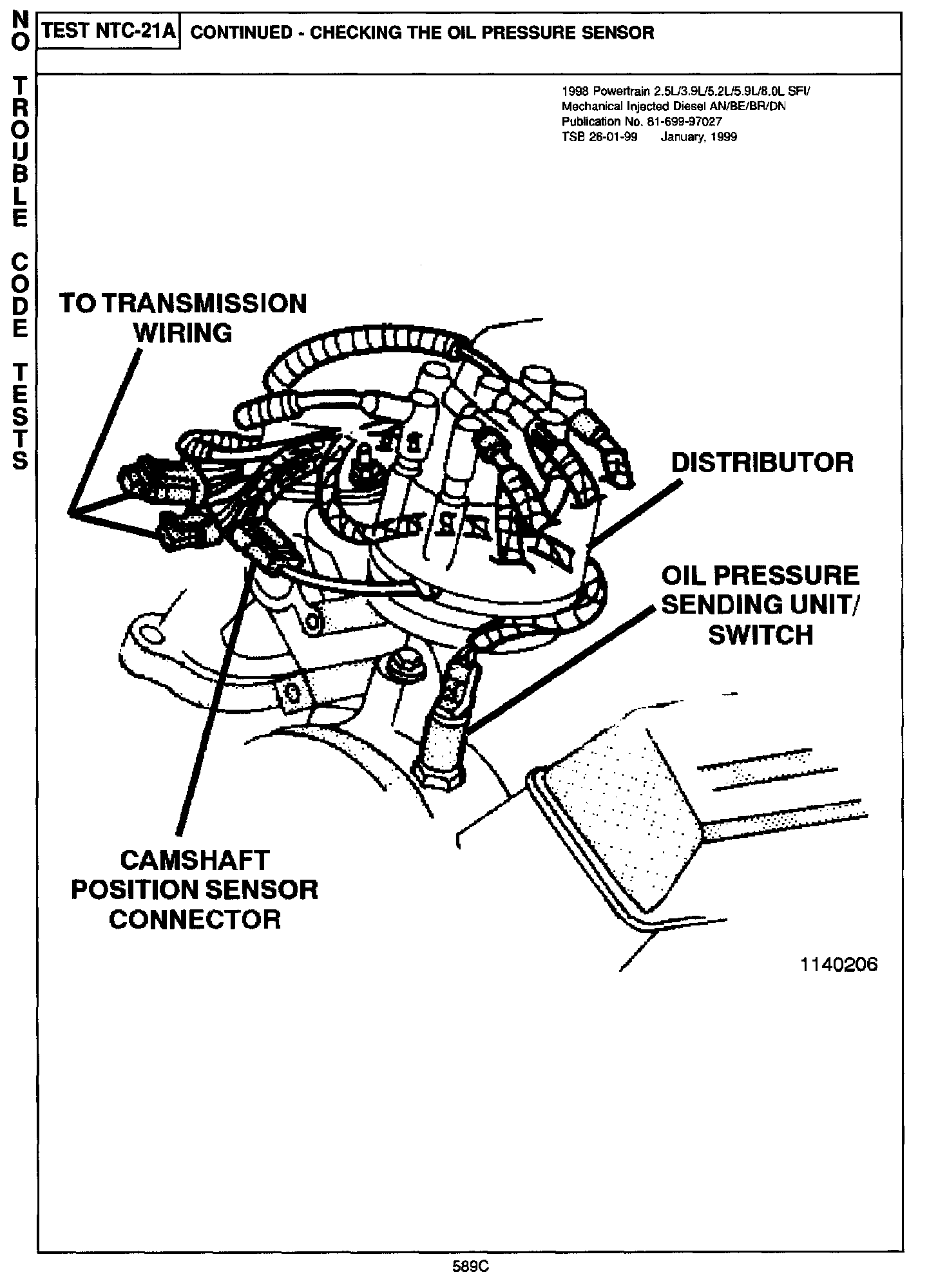

589C

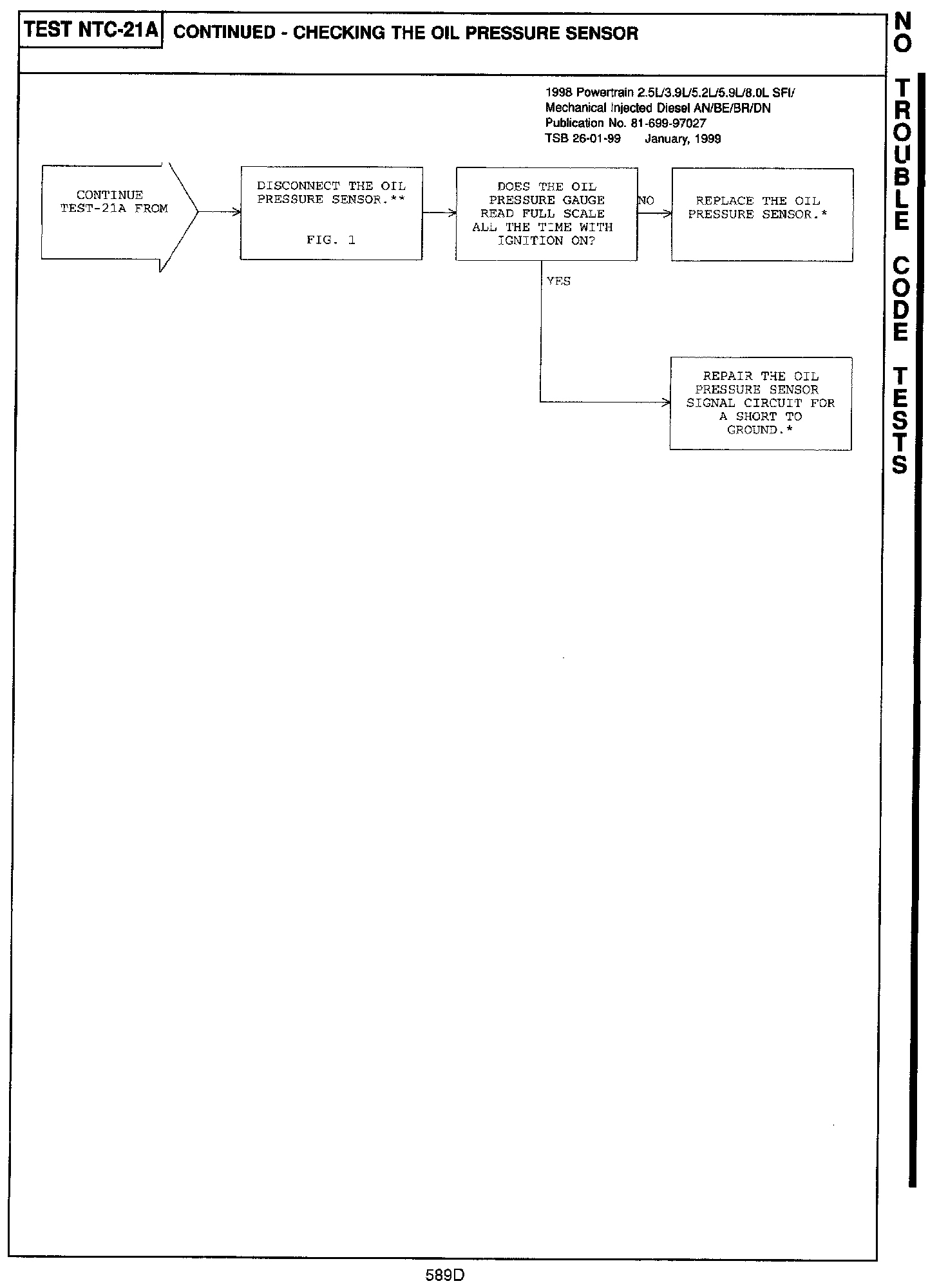

589D

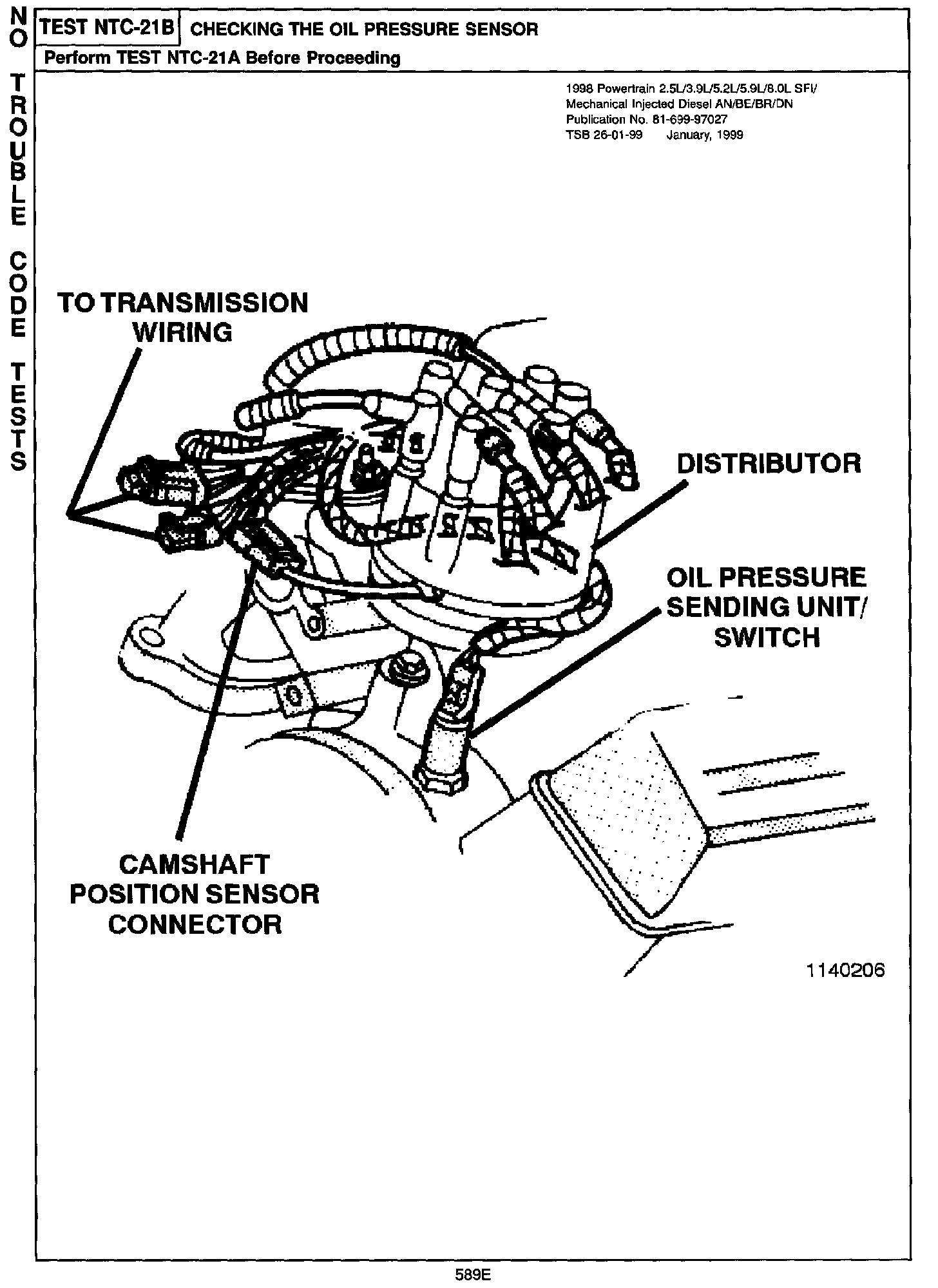

589E

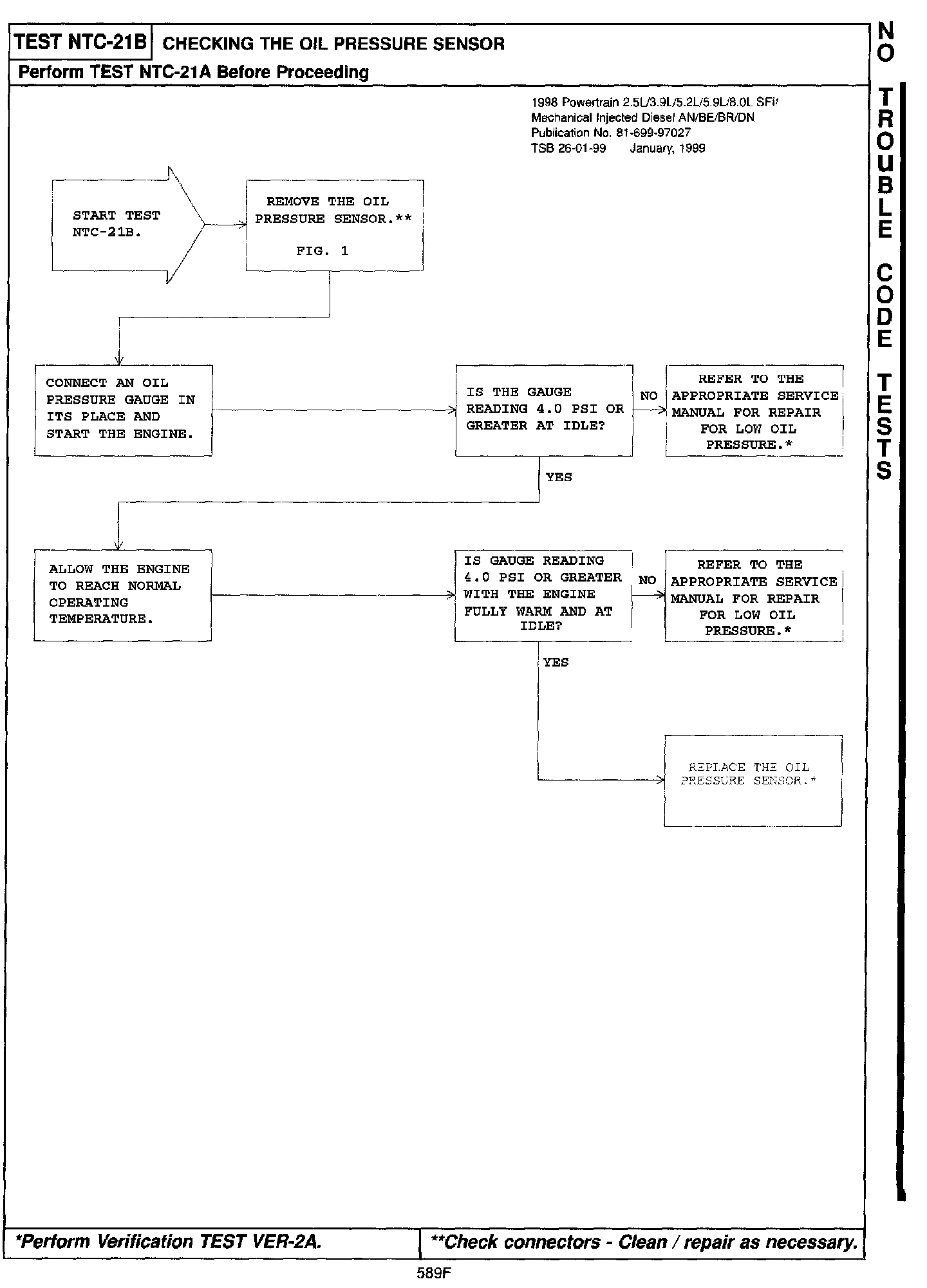

589F
