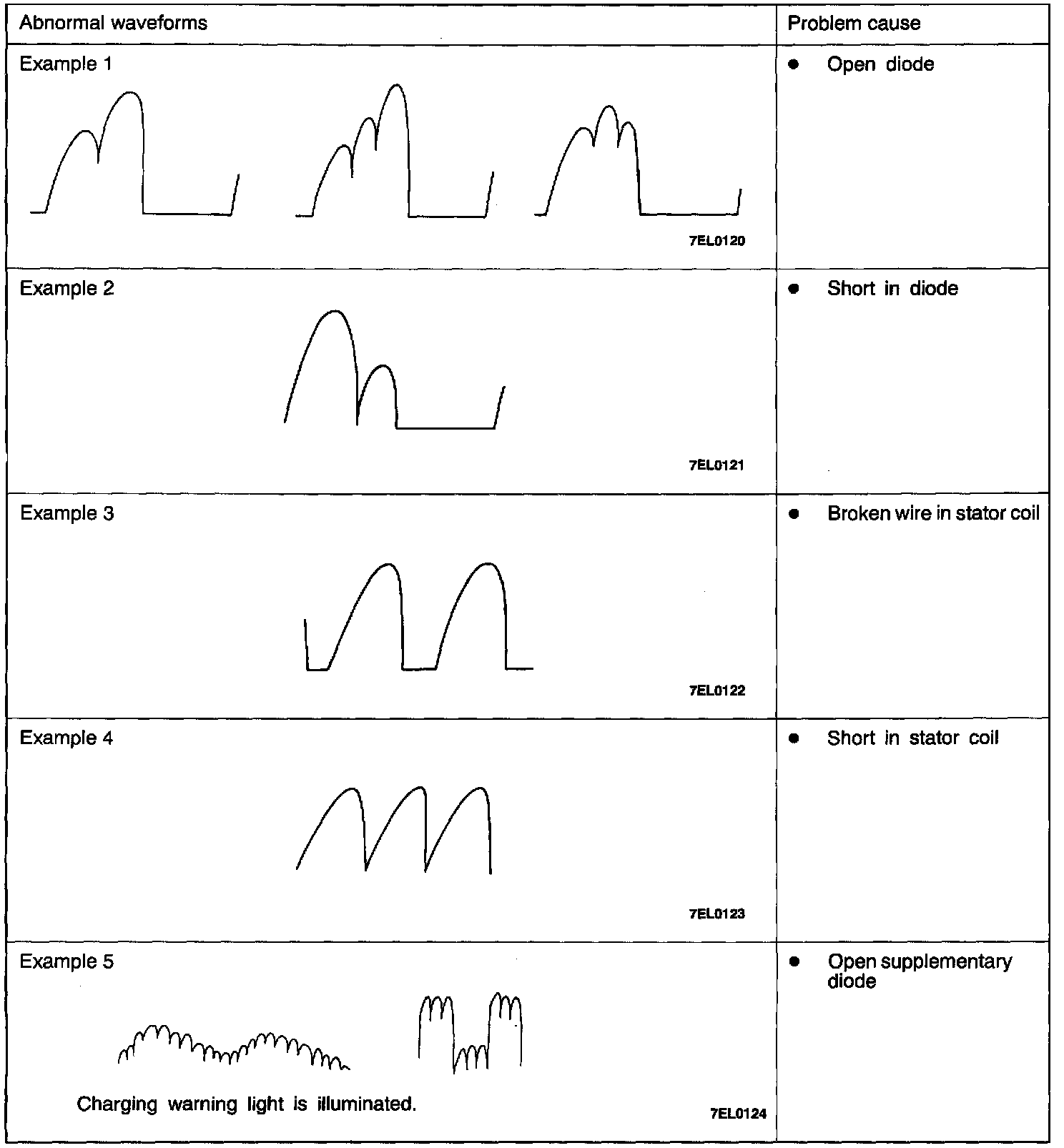

Abnormal Waveform

NOTE:
1. The size of the wave-form patterns differs largely depending on the adjustment of the variable knob on the analyzer.
2. Identification of abnormal wave-forms is easier when there is a large output current (regulator is not operating). These Wave-forms can be observed when the headlights are illuminated.
3. Check the conditions of the charge light (illuminated/not illuminated) also, and carry out a total check.
