Starter Relay
Power Distribution Center:

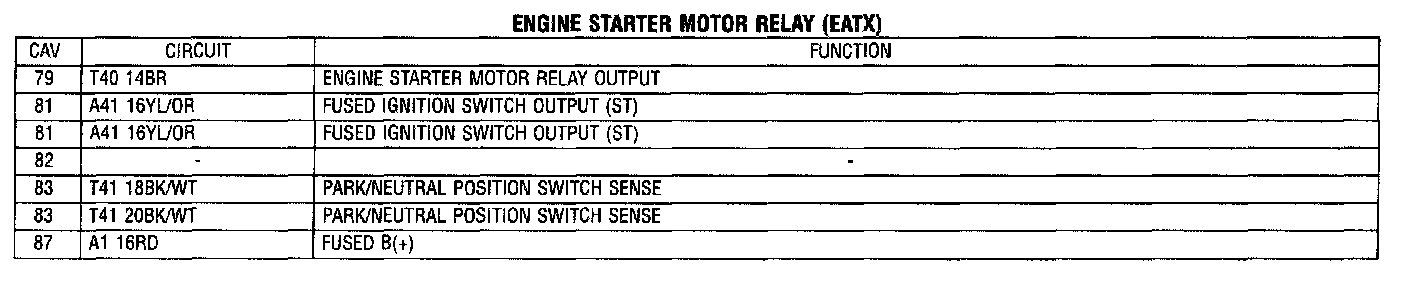

Engine Starter Motor Relay (EATX):

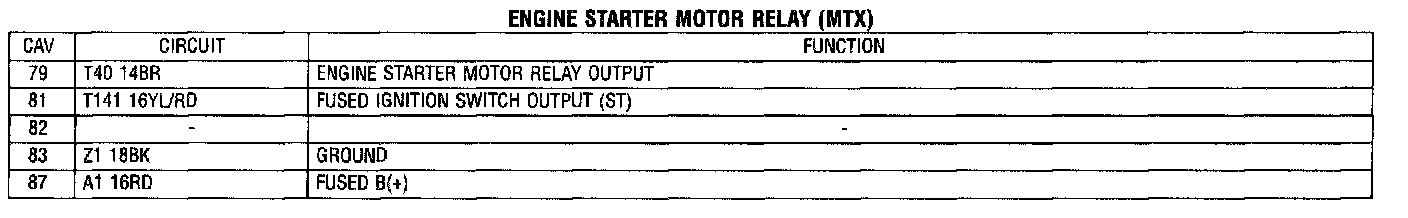

Engine Starter Motor Relay (MTX):
