Manifold Absolute Pressure (MAP) Sensor Replacement

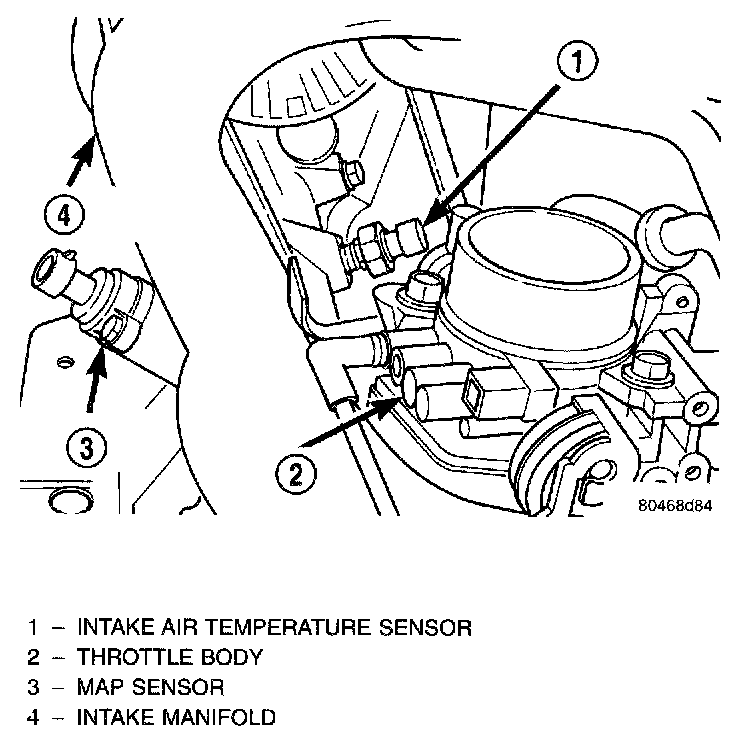

IAT Sensor And MAP Sensor:

The MAP sensor attaches to the intake manifold plenum.

REMOVAL
1. Remove the negative battery cable.
2. Disconnect electrical connector from MAP sensor.
3. Remove sensor mounting screws.
4. Remove sensor.

INSTALLATION
1. Insert sensor into intake manifold while making sure not to damage O-ring seal.
2. Tighten mounting screws to 3.4 Nm (30 in. lbs) torque.
3. Attach electrical connector to sensor.
4. Install the negative battery cable.
