Procedures

REMOVAL
1. Seat removed from vehicle. Using a clean area to place seat.

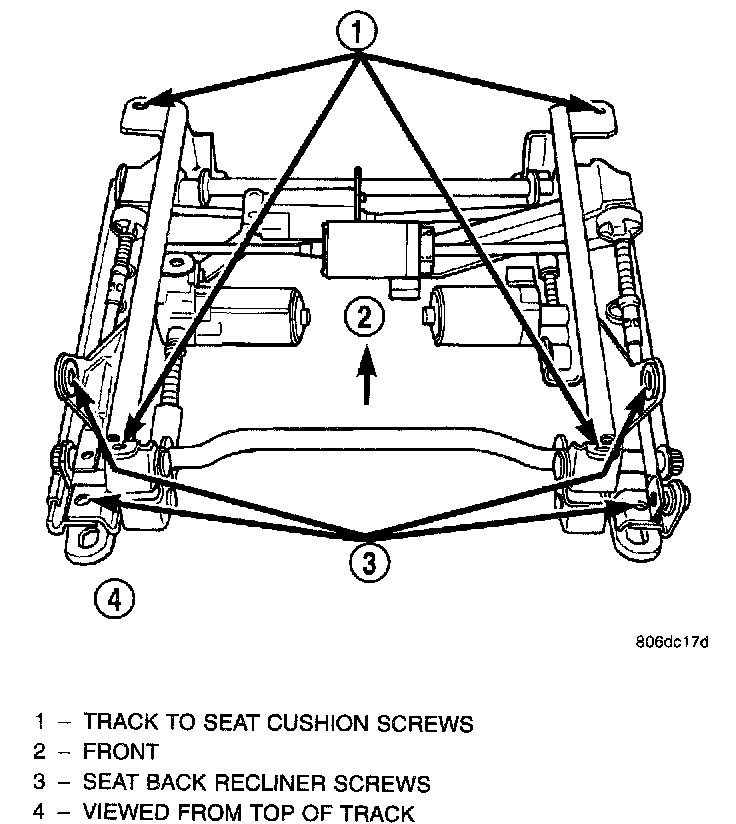

Seat Adjuster Removal:




2. Remove two seat back mounting screws and also remove two seat back recliner screws.
3. Remove four seat adjuster mounting screws from cushion pan.
4. Remove adjuster from seat.

INSTALLATION
For installation, reverse the above procedure.
