Connector Views

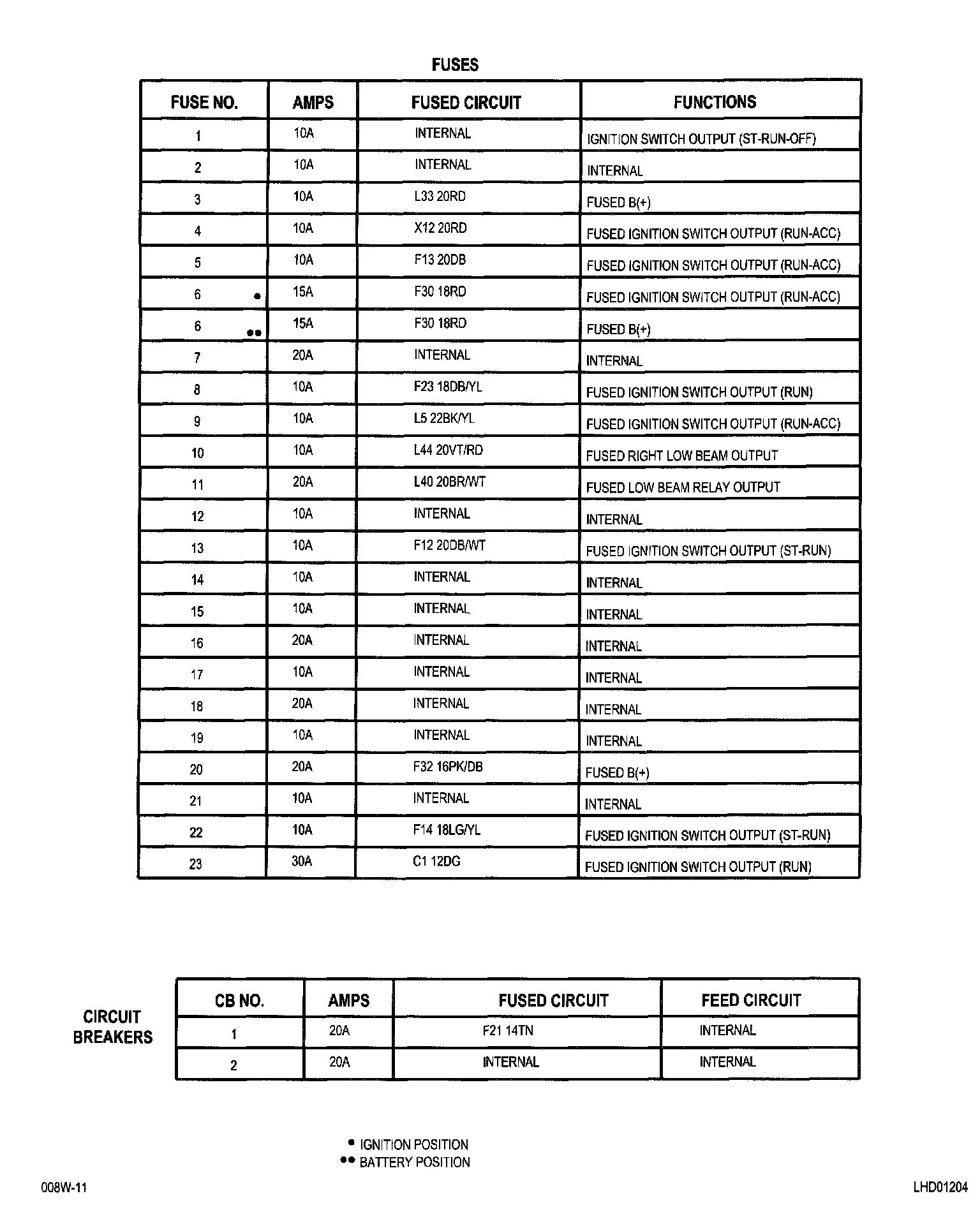

8W-12-2:




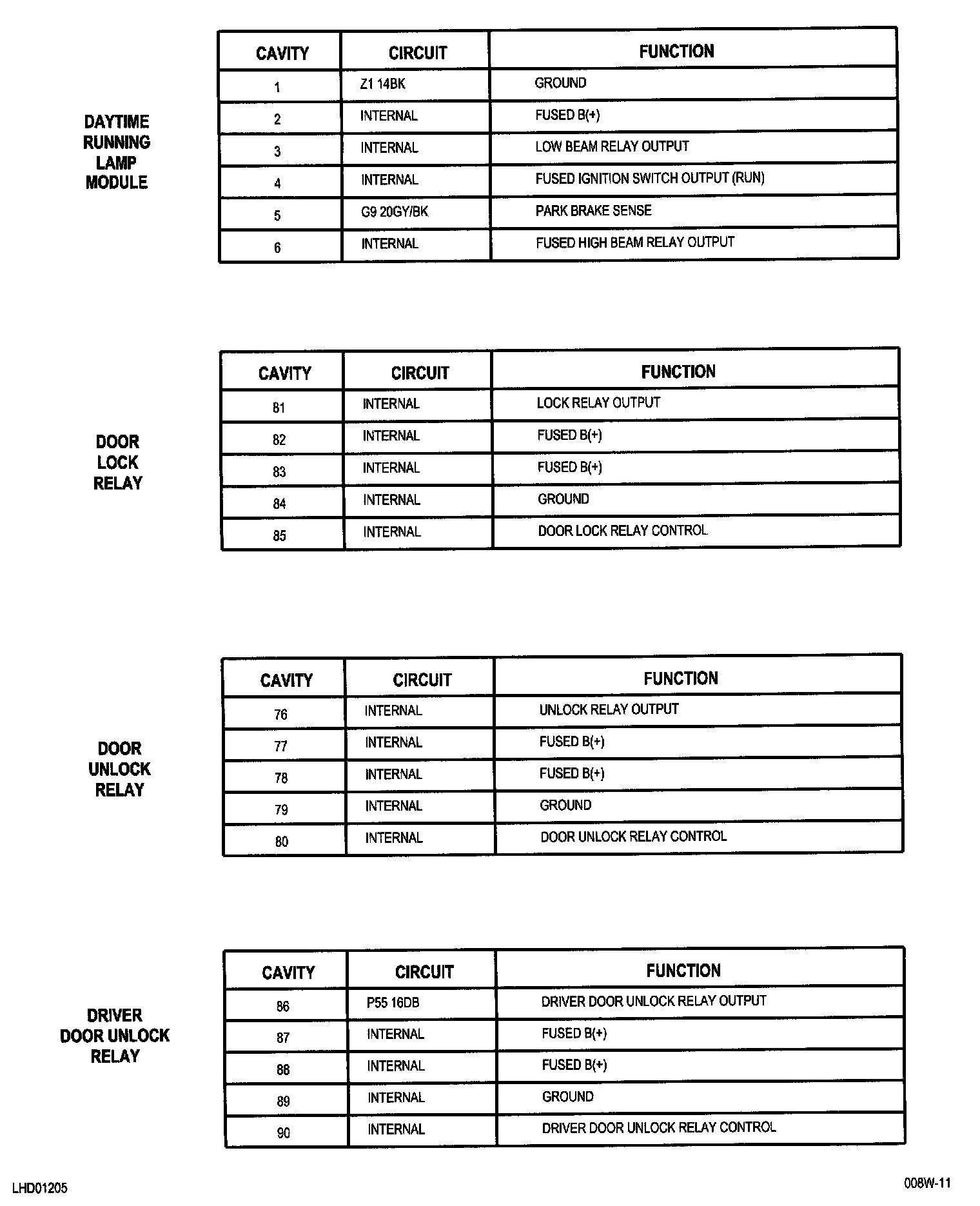

8W-12-3:




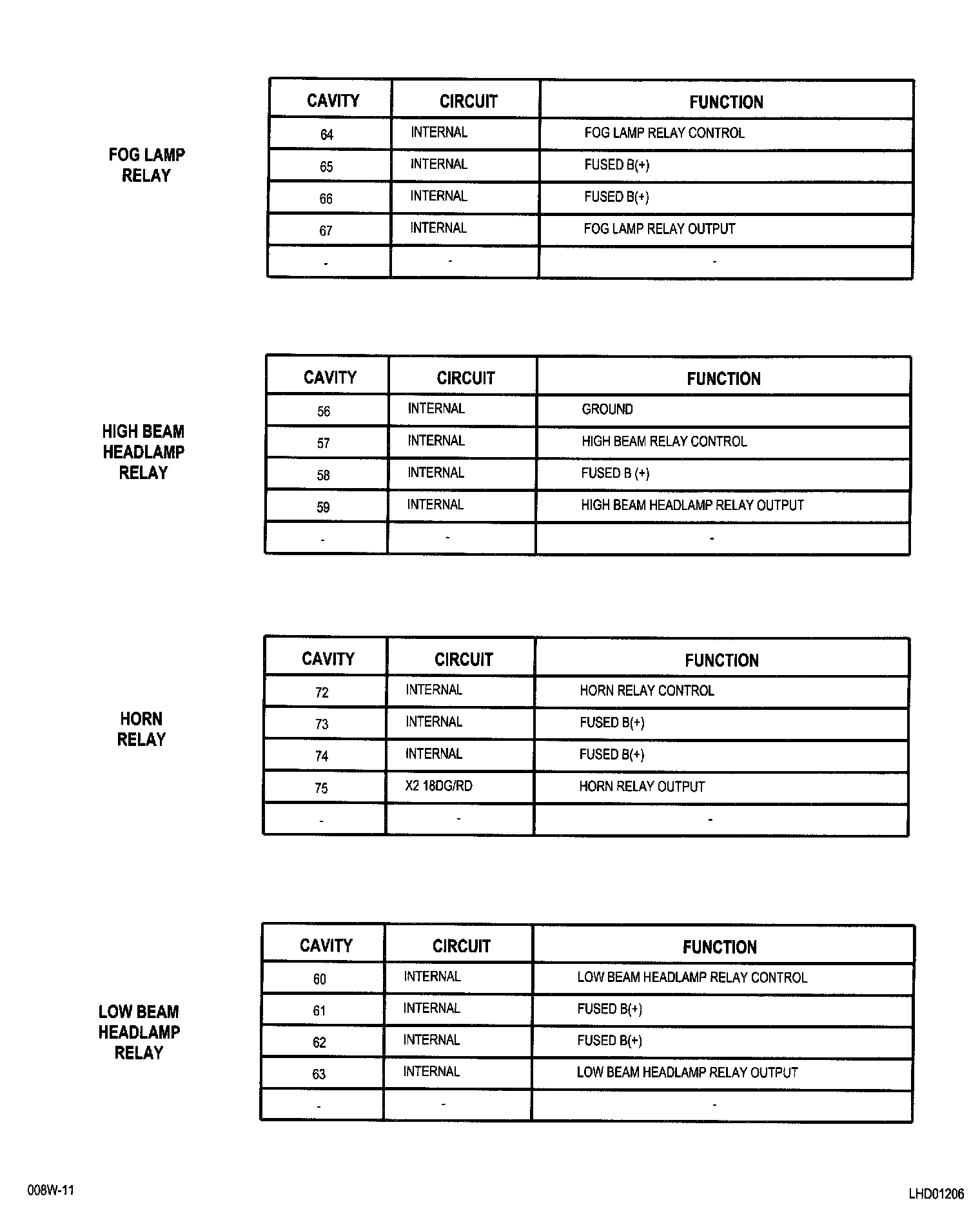

8W-12-4:




8W-12-5:




8W-12-6:




8W-12-7:

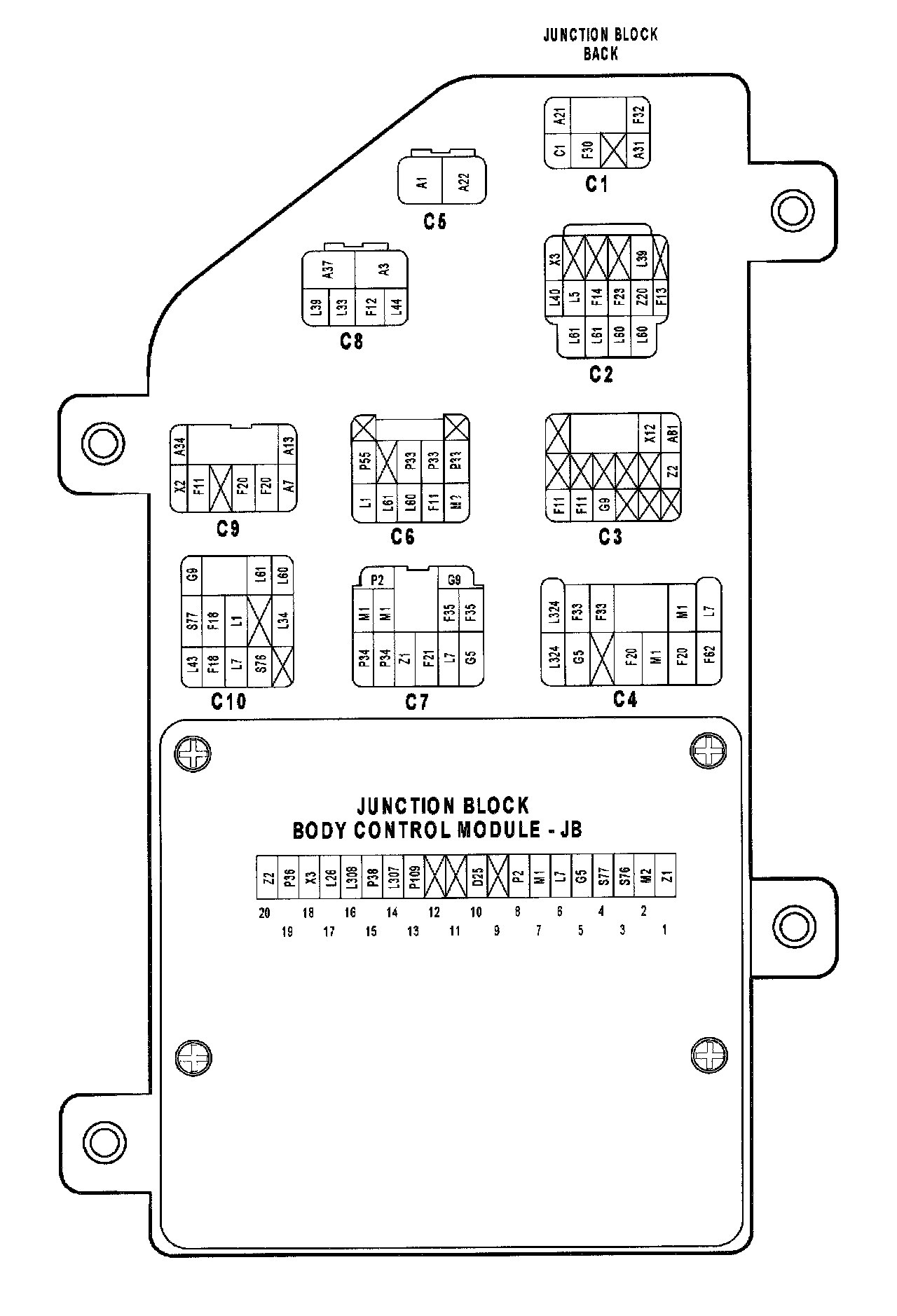

Junction Block Back:

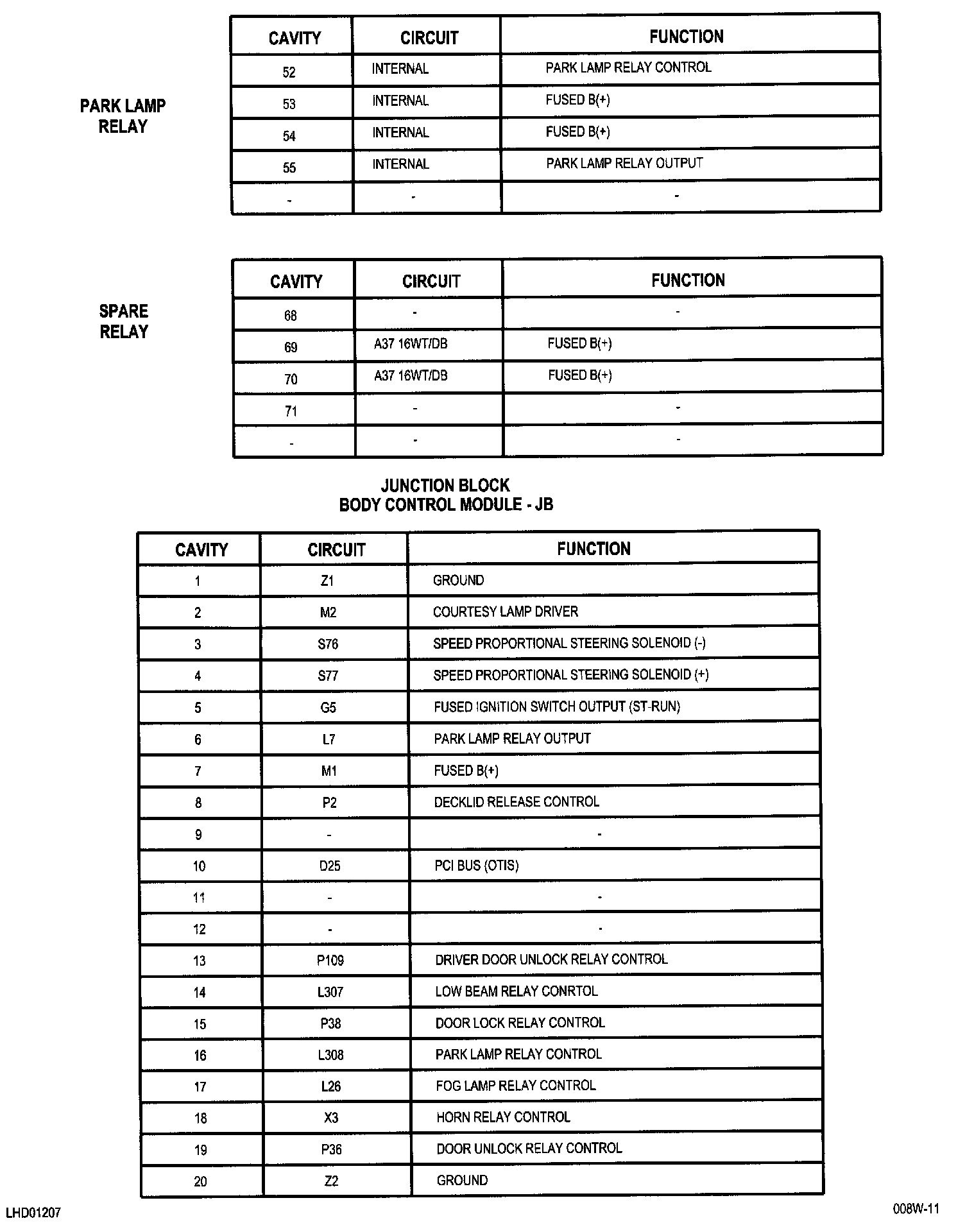

Junction Block Body Control Module - JB:




Junction Block - C1:




Junction Block - C2:




Junction Block - C3:




Junction Block - C4:




Junction Block - C5:




Junction Block - C6:




Junction Block - C7:




Junction Block - C8:




Junction Block - C9:
