Transmission Control System Relay: Service and Repair

REMOVAL
1. Open hood and locate power distribution center in the engine compartment.
2. Remove power distribution center plastic cover.

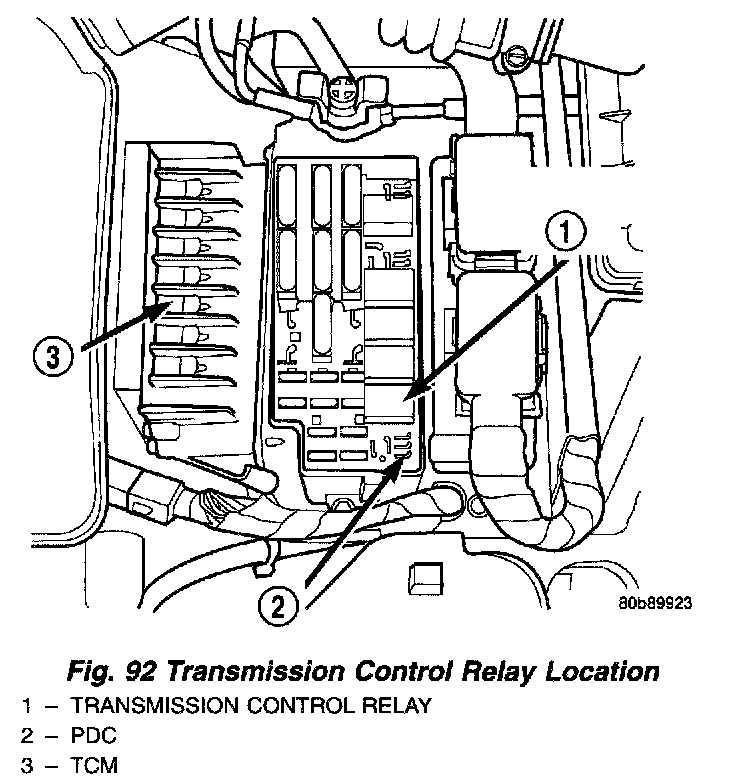

Fig. 92:





3. Pull relay out of power distribution center (Fig. 92).

INSTALLATION
1. To install, reverse removal procedure.
