Engine 3.5L: Description

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

The 3.5 Liter (214 Cubic Inches) 60 degree V-6 engines is a single overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig 1 ). The engine does not have provisions for a free wheeling valve train.

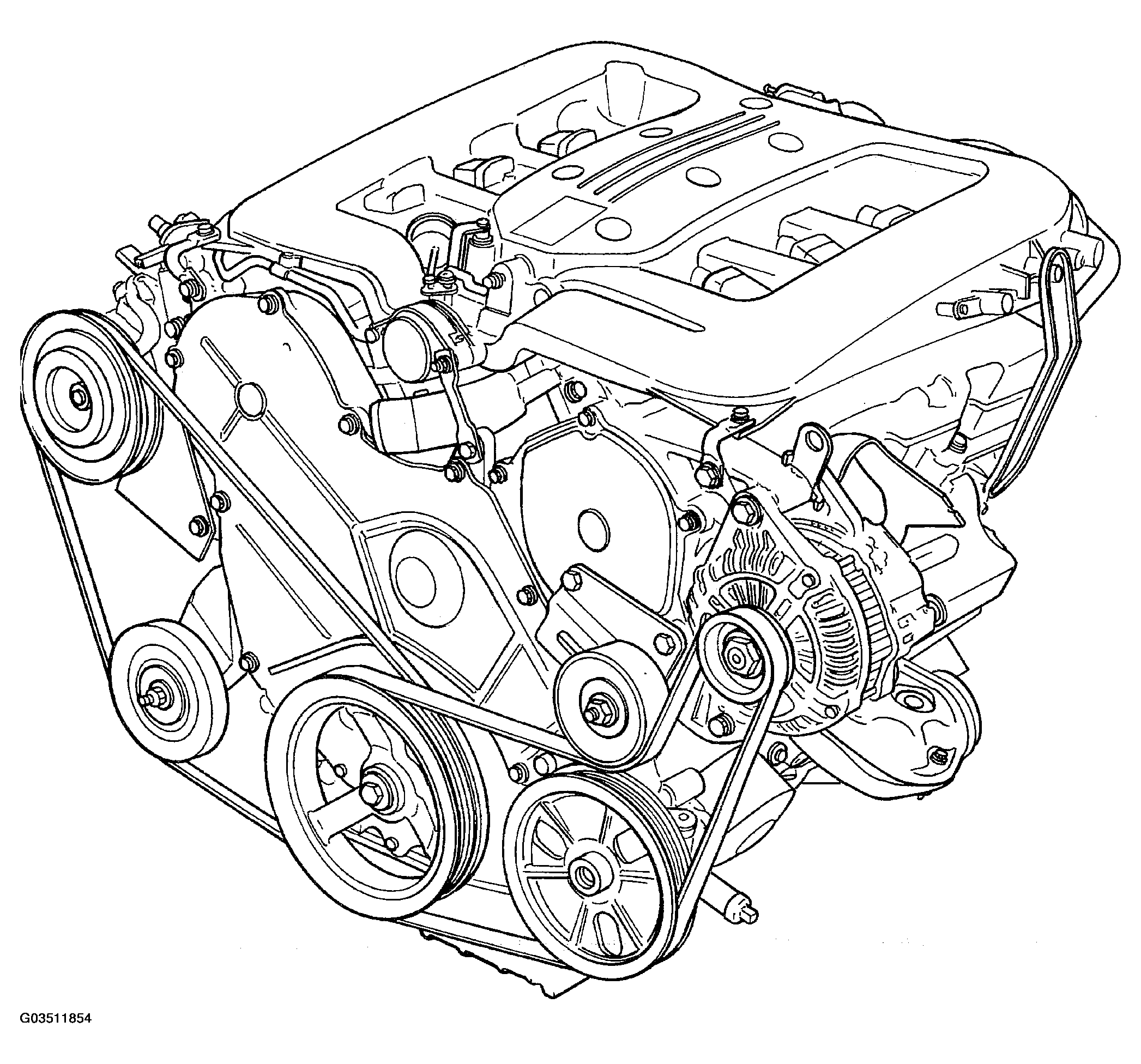

Fig 1: 3.5L Engine

Courtesy of DAIMLERCHRYSLER CORP.

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig 2 ). The firing order is 1-2-3-4-5-6.

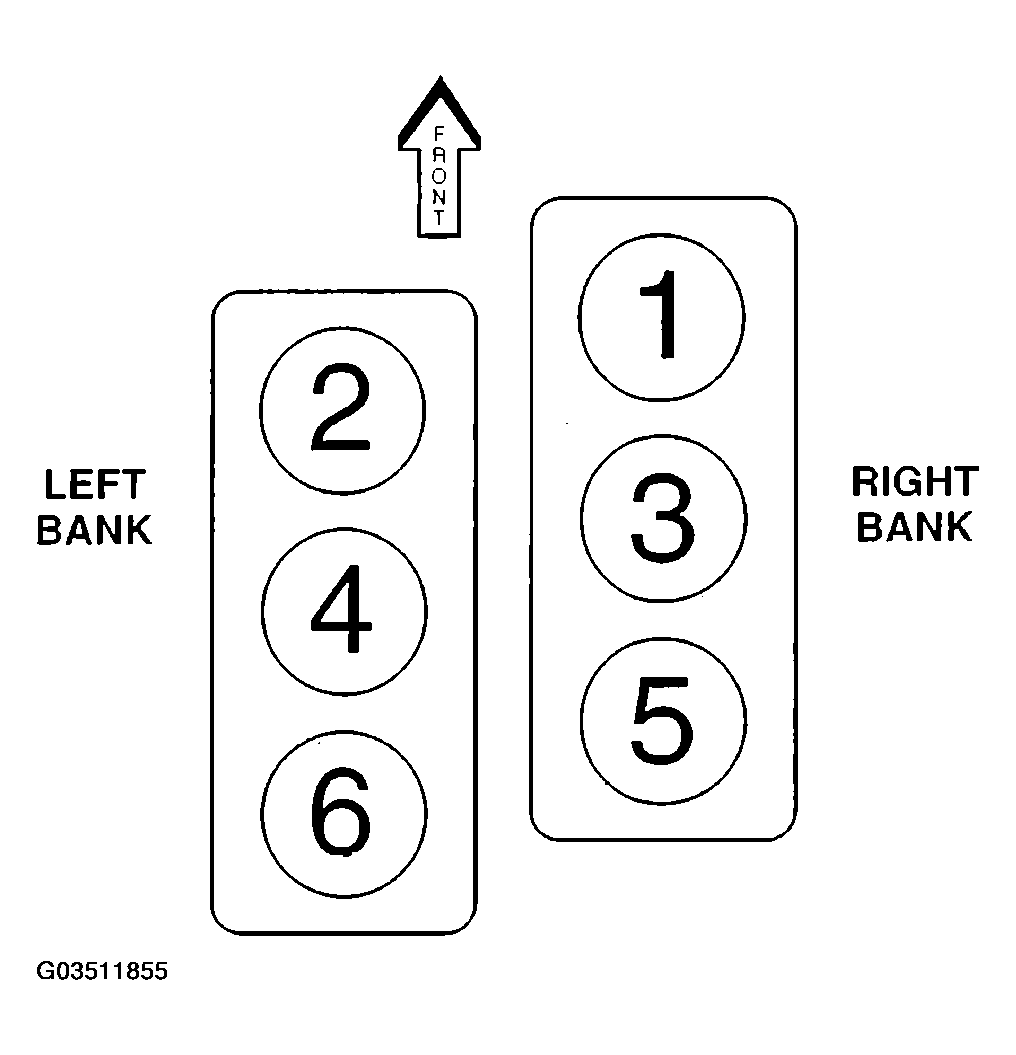

Fig 2: Cylinder Numbering & Firing Order - 3.5L

Courtesy of DAIMLERCHRYSLER CORP.

The engine identification number is located on the rear of engine block just below the cylinder head (Fig 3 ).

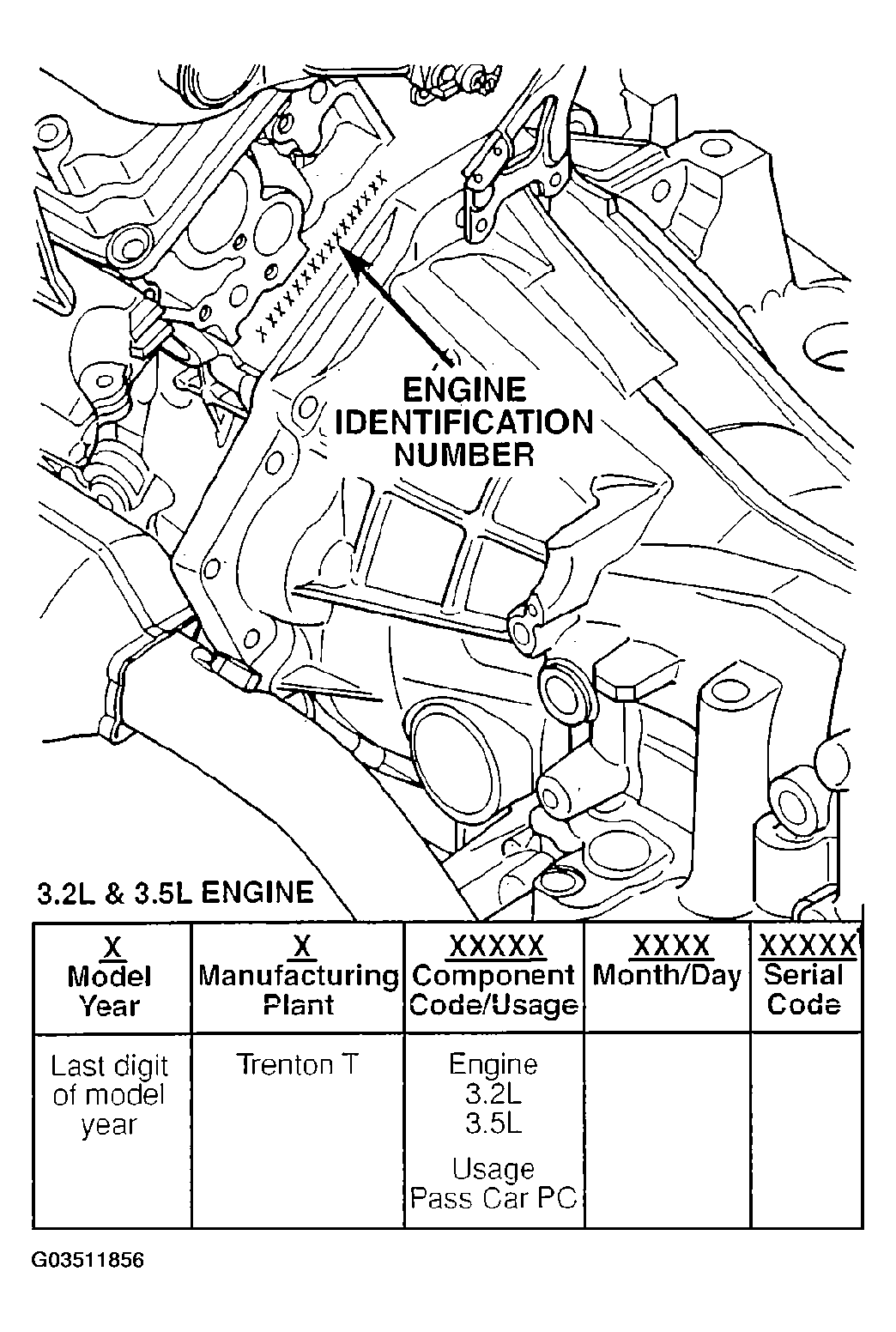

Fig 3: Engine Identification

Courtesy of DAIMLERCHRYSLER CORP.
