Flex Plate: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

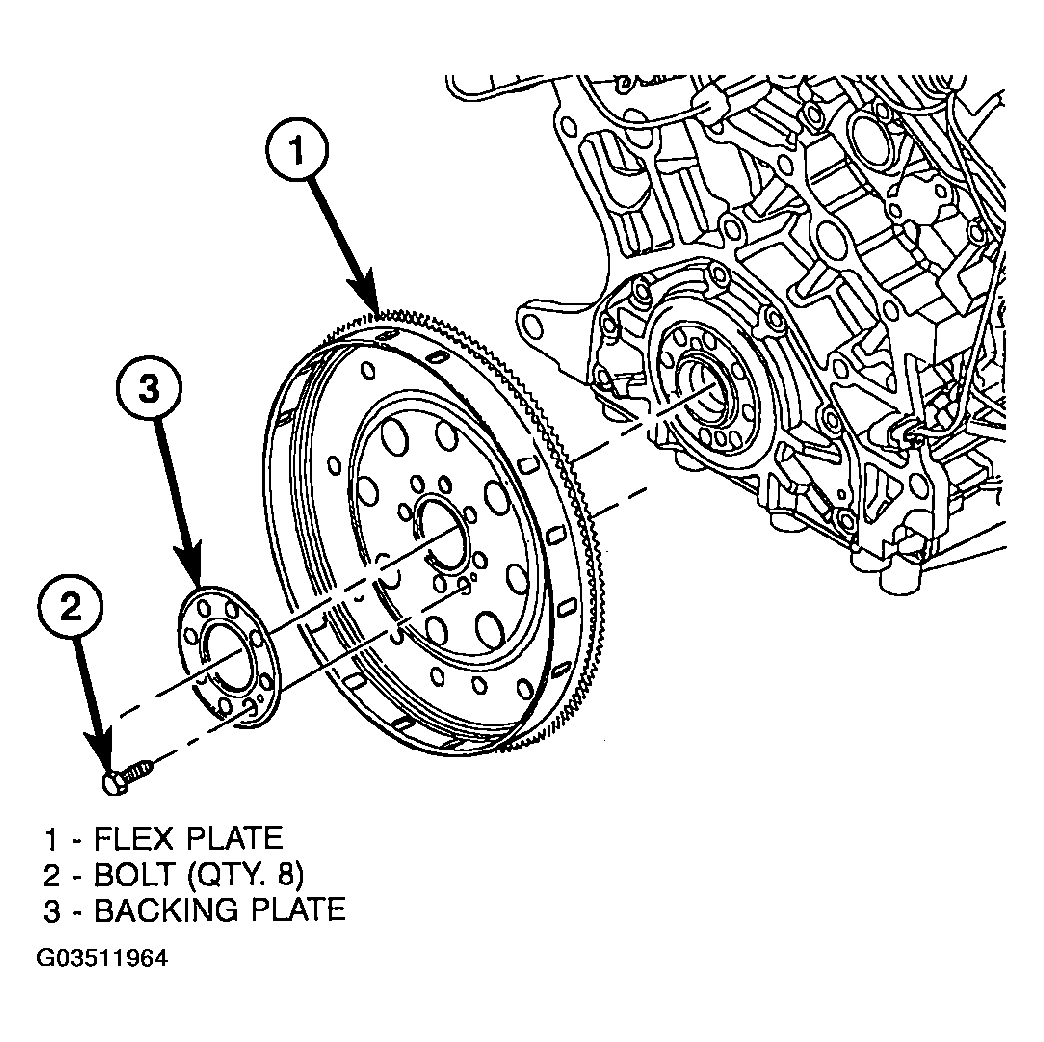

- Position flex plate with backing plate on the crankshaft (Figure ).
- Apply Mopar(R) Lock & Seal Adhesive to the flex plate bolts.
- Install flex plate bolts (Figure ). Tighten bolts to 95 N.m (70 ft. lbs.).
- Install the transaxle. (Refer to OVERHAUL - 42LE )
