Oil Pump: Assembly
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

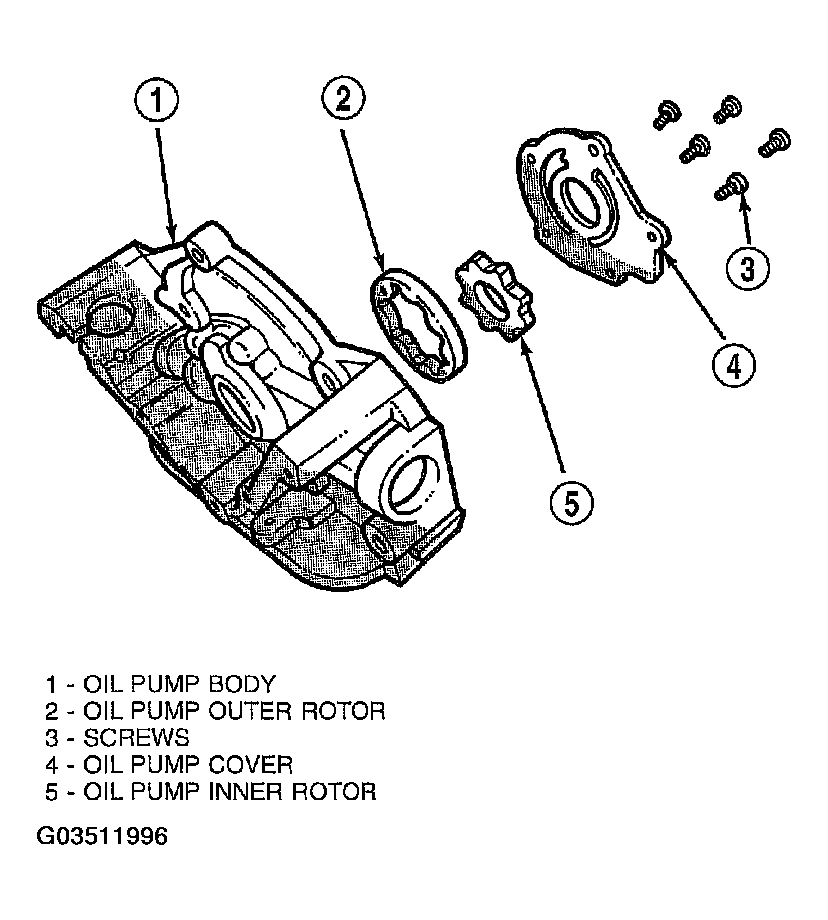

- Assemble oil pump using new parts as required.
- Tighten cover screws to 12 N.m (105 in. lbs.) (Figure ).
- Prime oil pump before installation by filling rotor cavity with engine oil.
- If oil pressure is low and pump is within specifications, inspect for worn engine bearings or other reasons for oil pressure loss.
