Rocker Arm / Adjuster Assembly: Assembly

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: New dowel pins must be installed when reassembling.

Install the rocker arms, and pedestals onto the shaft.

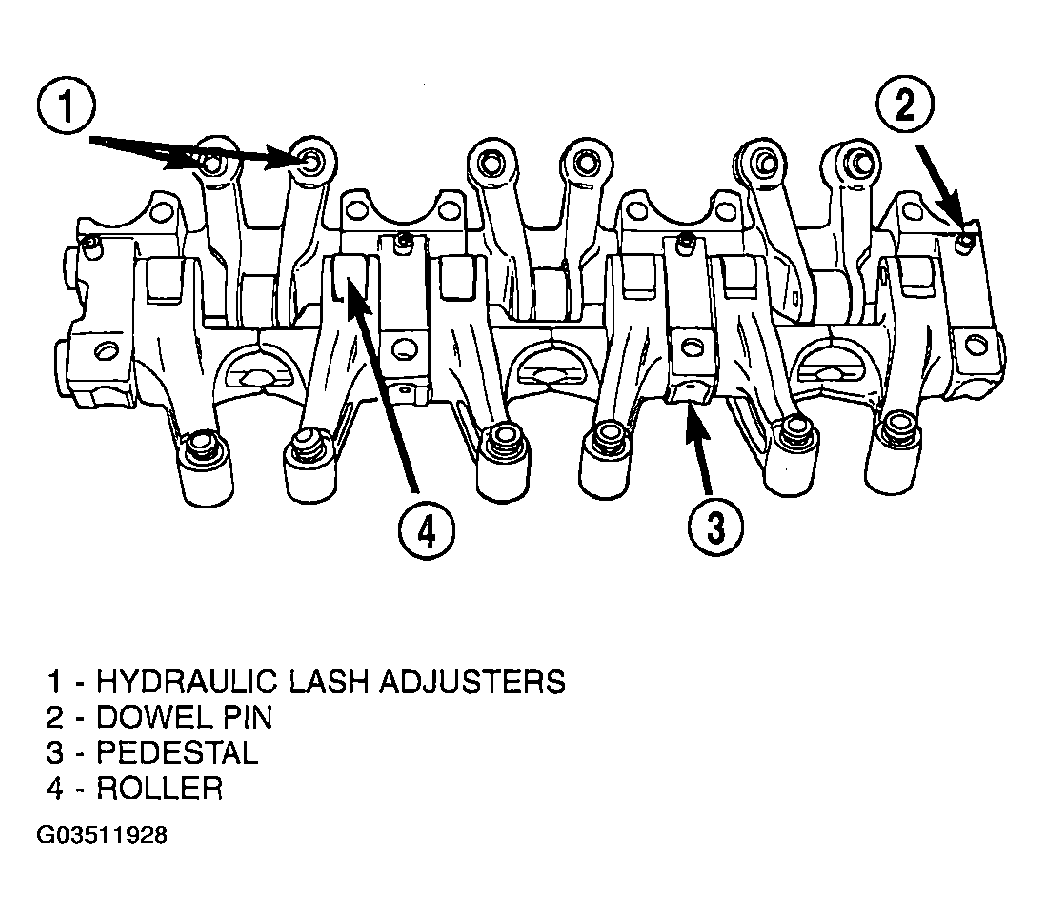

Install dowel pins (Fig 1 ). Dowel pins pass through the pedestal into the exhaust rocker shafts. Dowel pins should be pressed in until they bottom-out against the rocker shaft in the pedestal.

Fig 1: Assemble Rocker Arms and Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Install rocker arm and shafts. (Refer to INSTALLATION )
