Vibration Damper: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

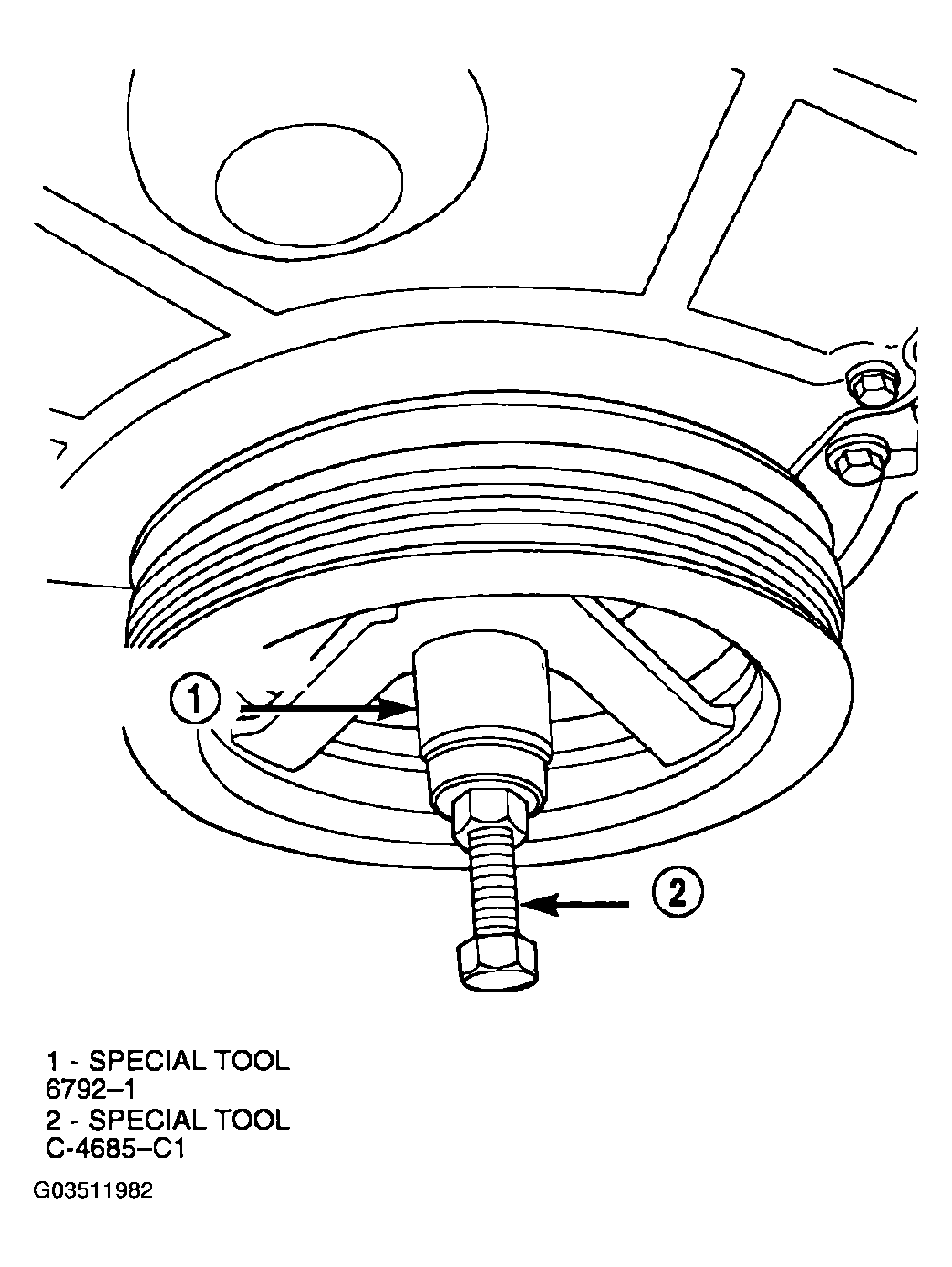

- Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig 1 ). Install center bolt and tighten to 115 N.m (85 ft. lbs.) (Figure ).
- Install accessory drive belts. (Refer to ACCESSORY DRIVE )
- Install radiator fan. (Refer to RADIATOR FAN )
- Install upper radiator crossmember. (Refer to GRILLE OPENING REINFORCEMENT )
- Connect negative cable.
