Rear CROSSMEMBER: Description
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

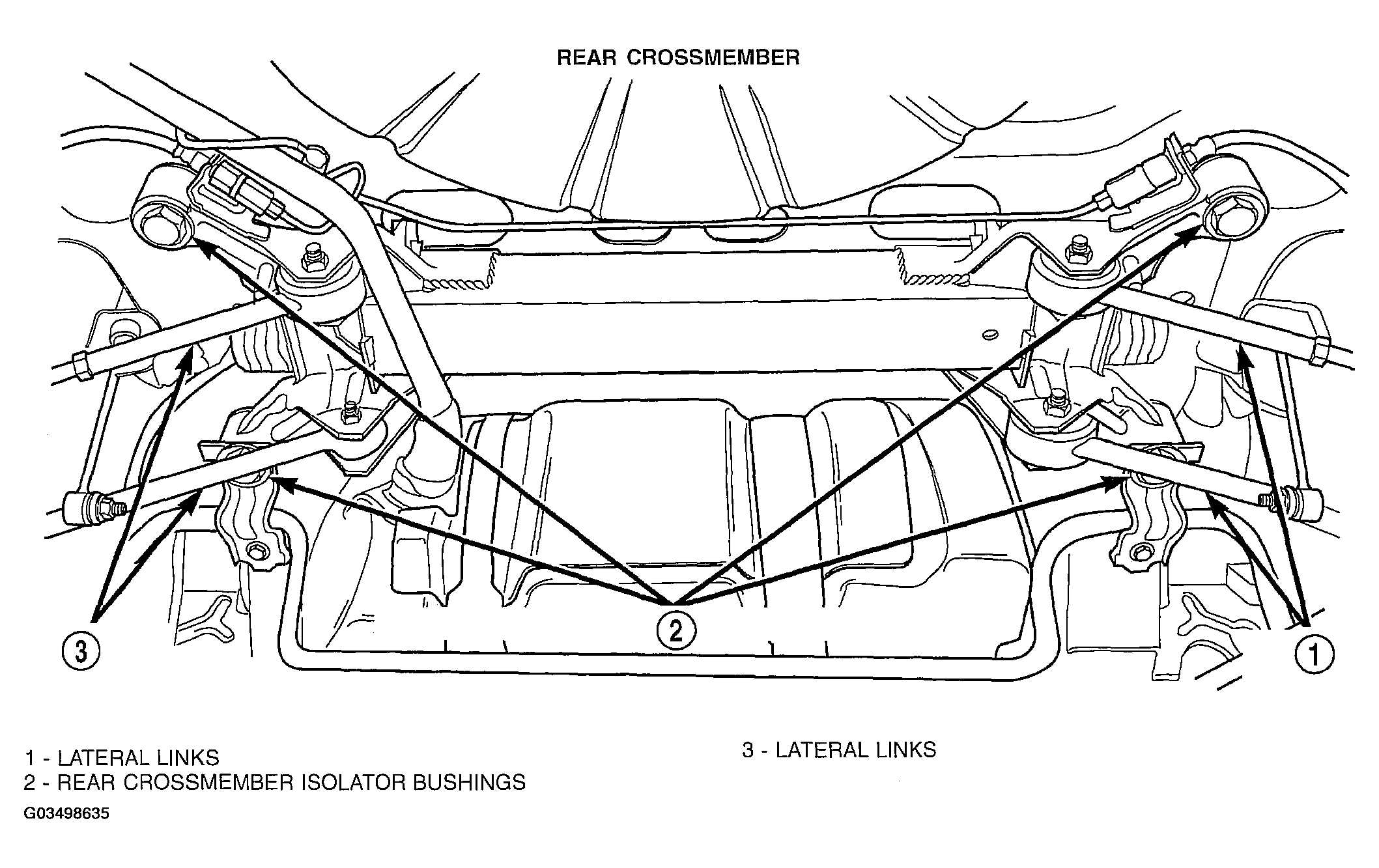

This vehicle is equipped with a aluminum alloy rear suspension crossmember that spans the distance between the rear frame rails (Fig 1 ). It is isolated from the frame rails with the use of rubber isolator bushings. These bushings may be replaced separately.
The rear suspension crossmember has 4 rubber isolator bushings which are replaceable.
