Rear Fascia: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Release deck lid latch and open deck lid.
- Partially remove trunk carpet to gain access to fascia attaching nuts and remove nuts.
- 300M only, remove both tail lamp housings to gain access to fascia attaching fasteners and remove attaching fasteners.
- Remove fasteners attaching fascia to rear quarter and splash shield.
- Remove upper push pins attaching the fascia to the body.

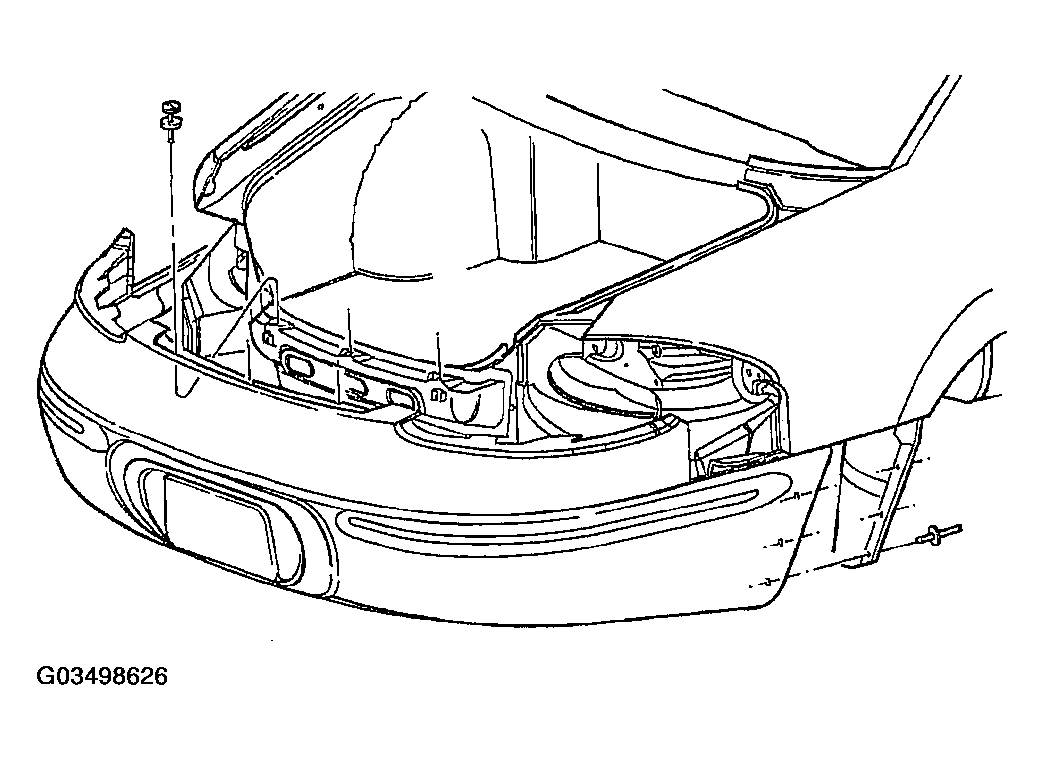

- Pull fascia with 30 pound force to disengage plastic clip and grommet that attaches the fascia to the quarter panel vertical flange one side at a time (Fig 1 ).
- Disengage main wire connector from the body harness. The connector is on the left side of vehicle.
- Remove fascia from vehicle.
