Latch Release Cable: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release hood latch by using the inside release, if still functioning. If not reach up through the bottom of the fascia opening and release the latch pawl lever.
  2. Disconnect hood release cable ferrule and cable end from hood latch assembly (Fig 1 ) or (Fig 2 ).

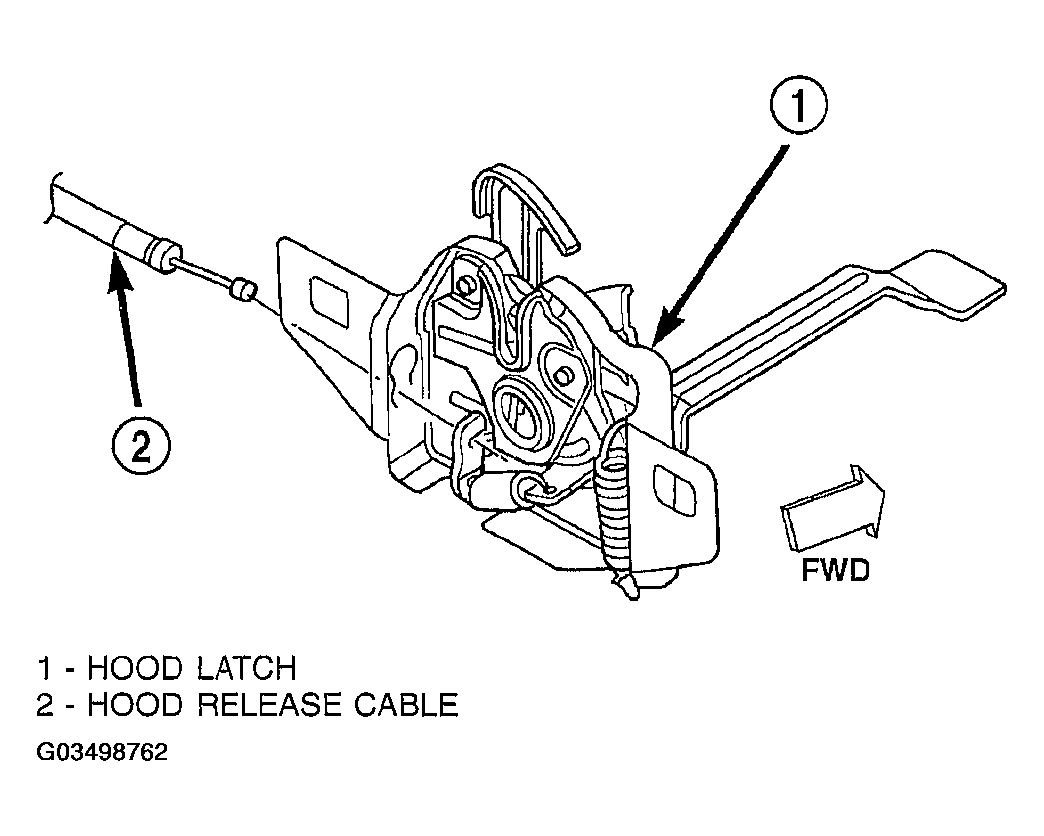

    Fig 1: Hood Release Cable - Concorde/300M
    G03498762Courtesy of DAIMLERCHRYSLER CORP.

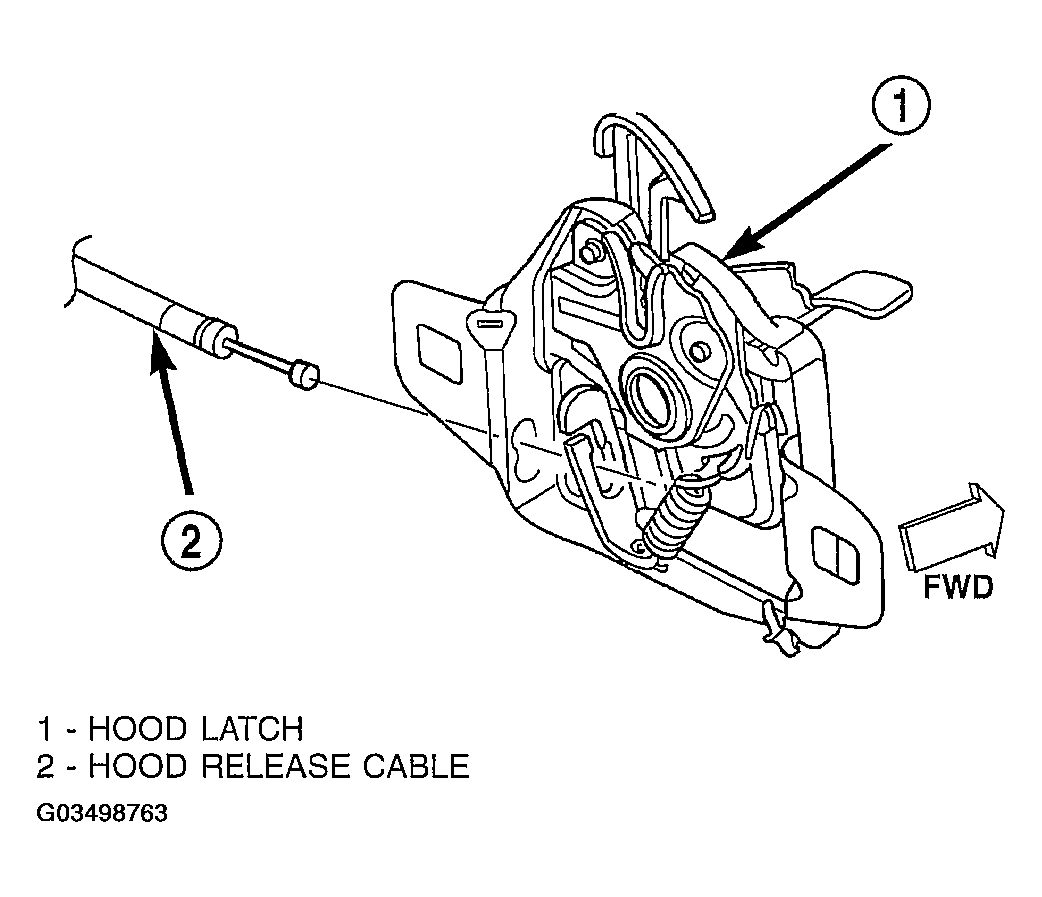

    Fig 2: Hood Release Cable - Intrepid
    G03498763Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove left cowl side trim panel.
  4. Remove screws attaching hood latch release cable handle to the cowl side.
  5. Remove left wheel splash shield.
  6. Disengage release cable from routing clips.
  7. Roll carpet back to expose cable.
  8. Release taped on cable clip from dash liner (Fig 3 ).

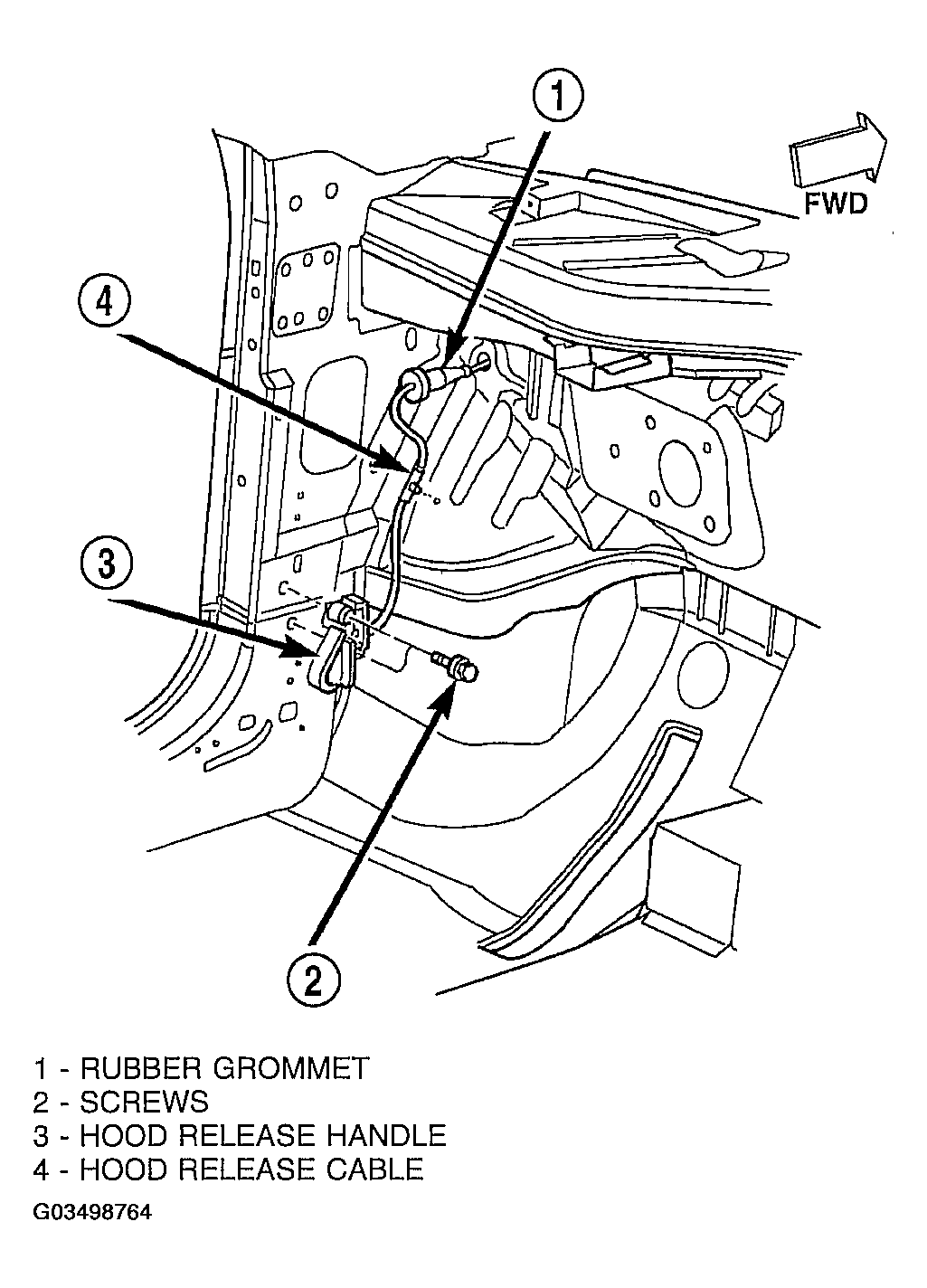

    Fig 3: Hood Release Handle
    G03498764Courtesy of DAIMLERCHRYSLER CORP.
  9. Release the rubber grommet from the dash panel. Pull cable through the dash panel access hole.
  10. Remove cable from vehicle.
