Support Cylinder: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Open hood.
Support hood with a suitable prop device.
Remove gas prop lock caps on each end (Fig 1 ).

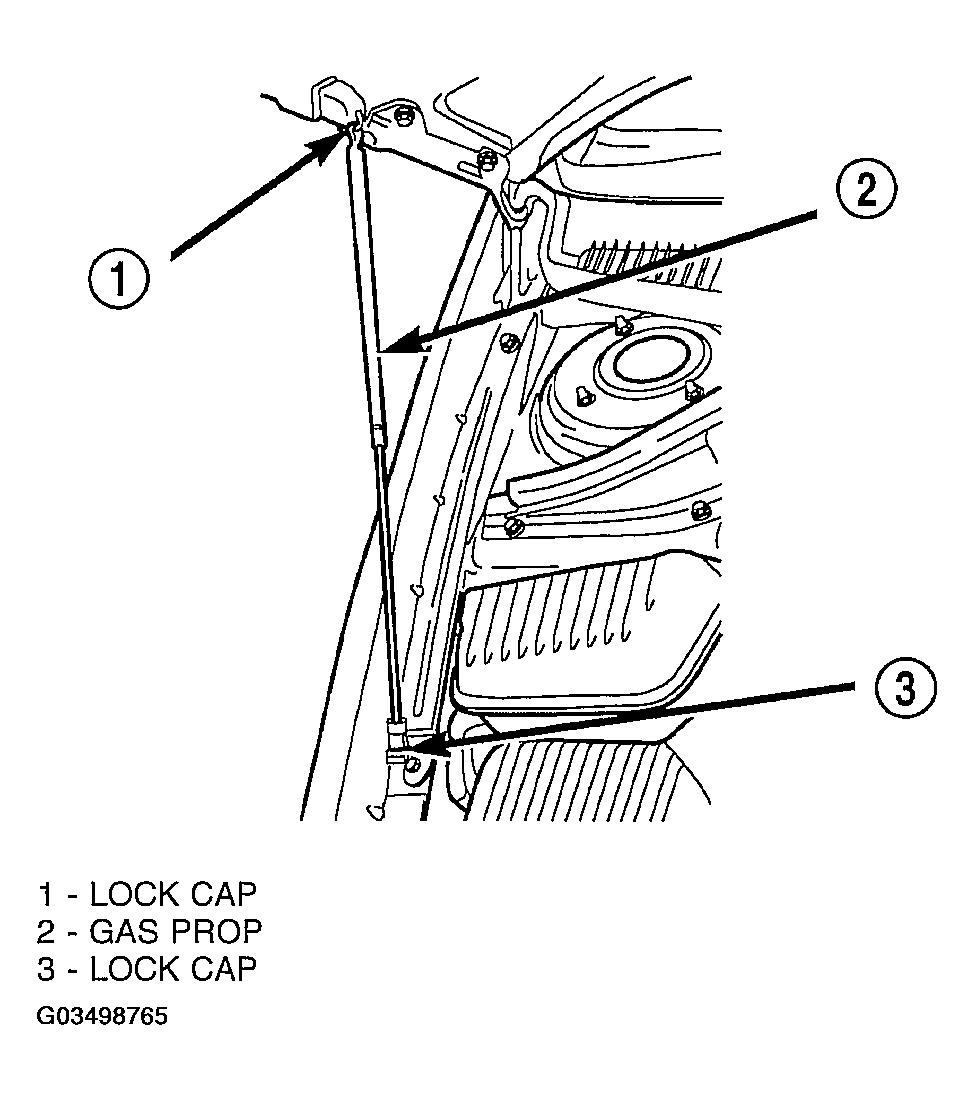

Fig 1: Hood Gas Prop
Courtesy of DAIMLERCHRYSLER CORP.
Remove gas prop from vehicle.
