Center Console Bezel: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Transmission Range Indicator Lamp (electroluminescent) is not serviceable. Replace Floor Console Panel for replacement of the lamp.

Set park brake and place gear selector in neutral.
Remove instrument panel center bezel. (Refer to INSTRUMENT PANEL CENTER BEZEL )
Loosen set screw attaching gear shift knob to gear shift.
Remove gear shift knob from gear shift.
Disengage clips attaching bezel to floor console (Fig 1 ), or (Fig 2 ).

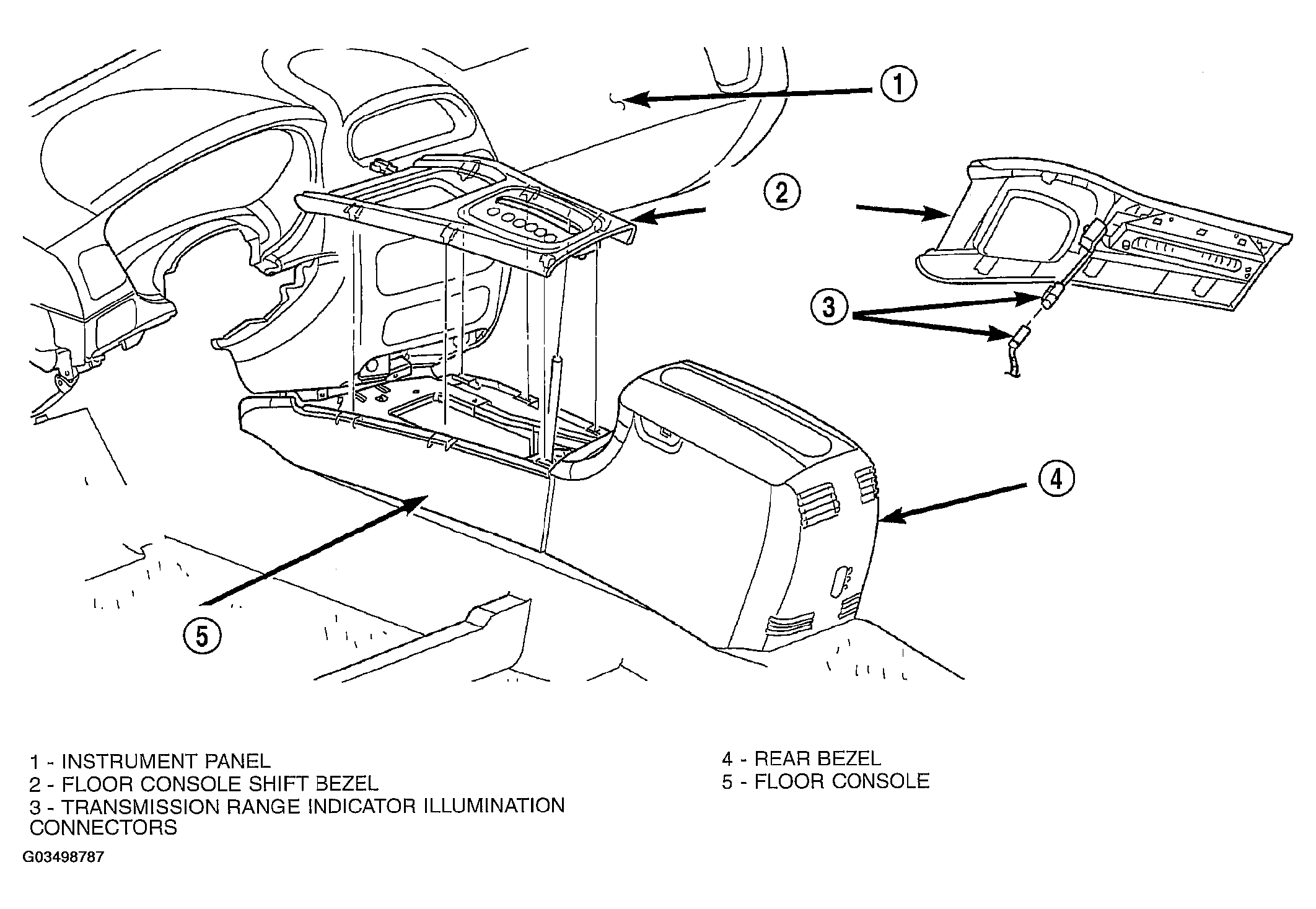

Fig 1: Removing Floor Console Bezel - Concorde
Courtesy of DAIMLERCHRYSLER CORP.

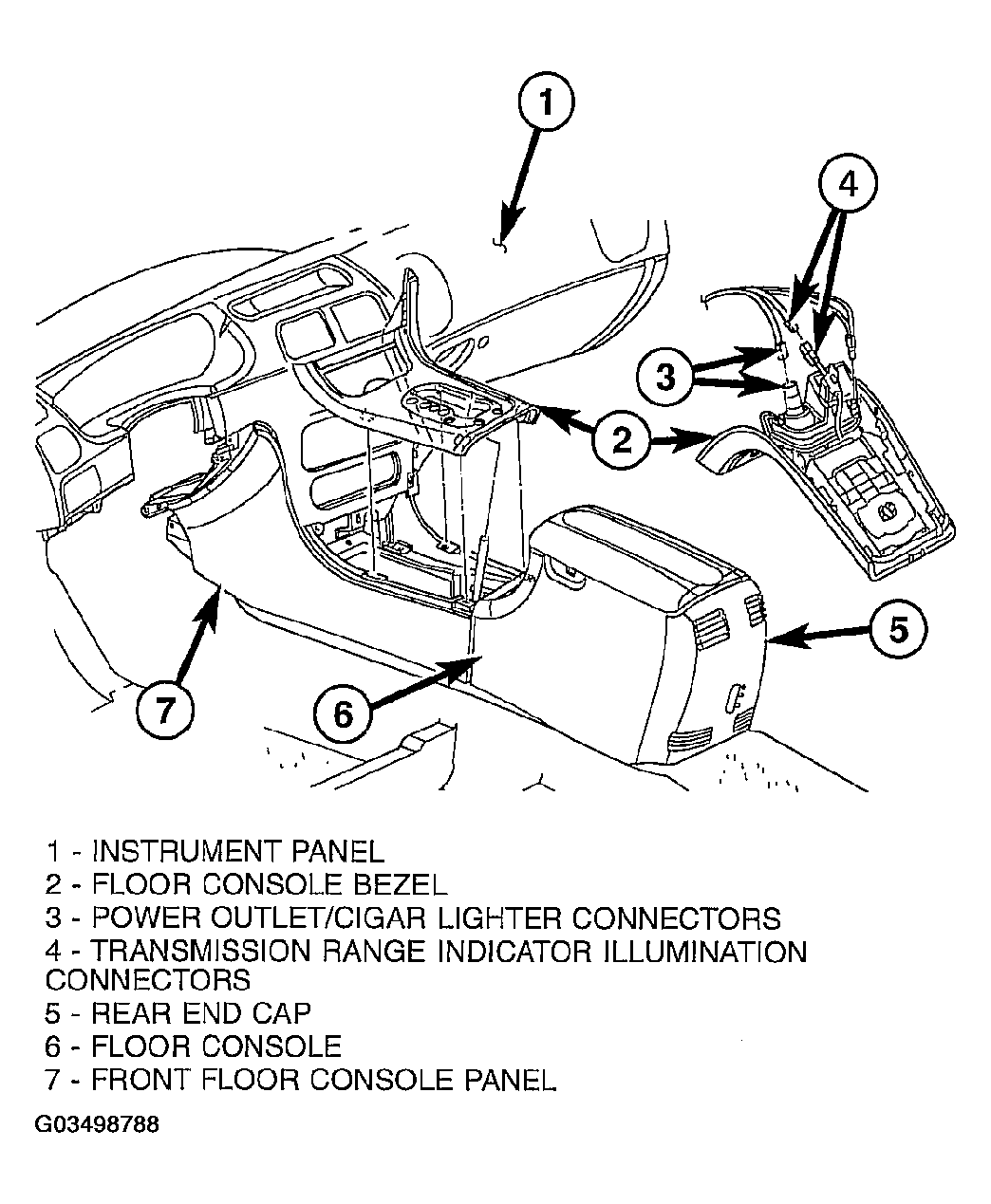

Fig 2: Removing Front Floor Console Side Panels - Intrepid Shown - 300M Similar
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the power outlet, if equipped.
Disconnect the transmission range indicator illumination connector.
Remove bezel from vehicle.
