Center Console Rear: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Disengage tabs on sides at bottom (Fig 1 )

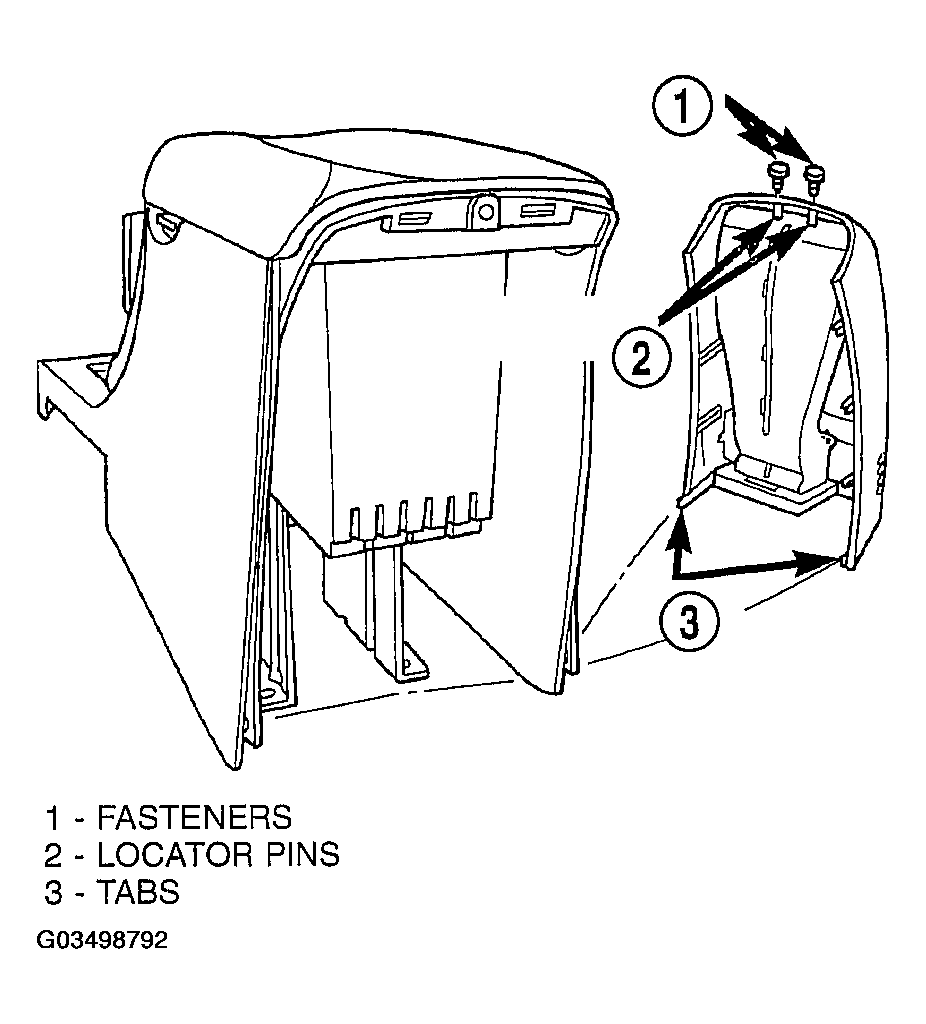

Fig 1: Removing Floor Console End Cap
Courtesy of DAIMLERCHRYSLER CORP.
Open arm rest lid and remove rear end cap attaching screws.
Remove rear bezel.
