Floor Console: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Remove shift knob.
Remove floor console shift bezel.
Remove side panels (Fig 1 ), or (Fig 2 ).

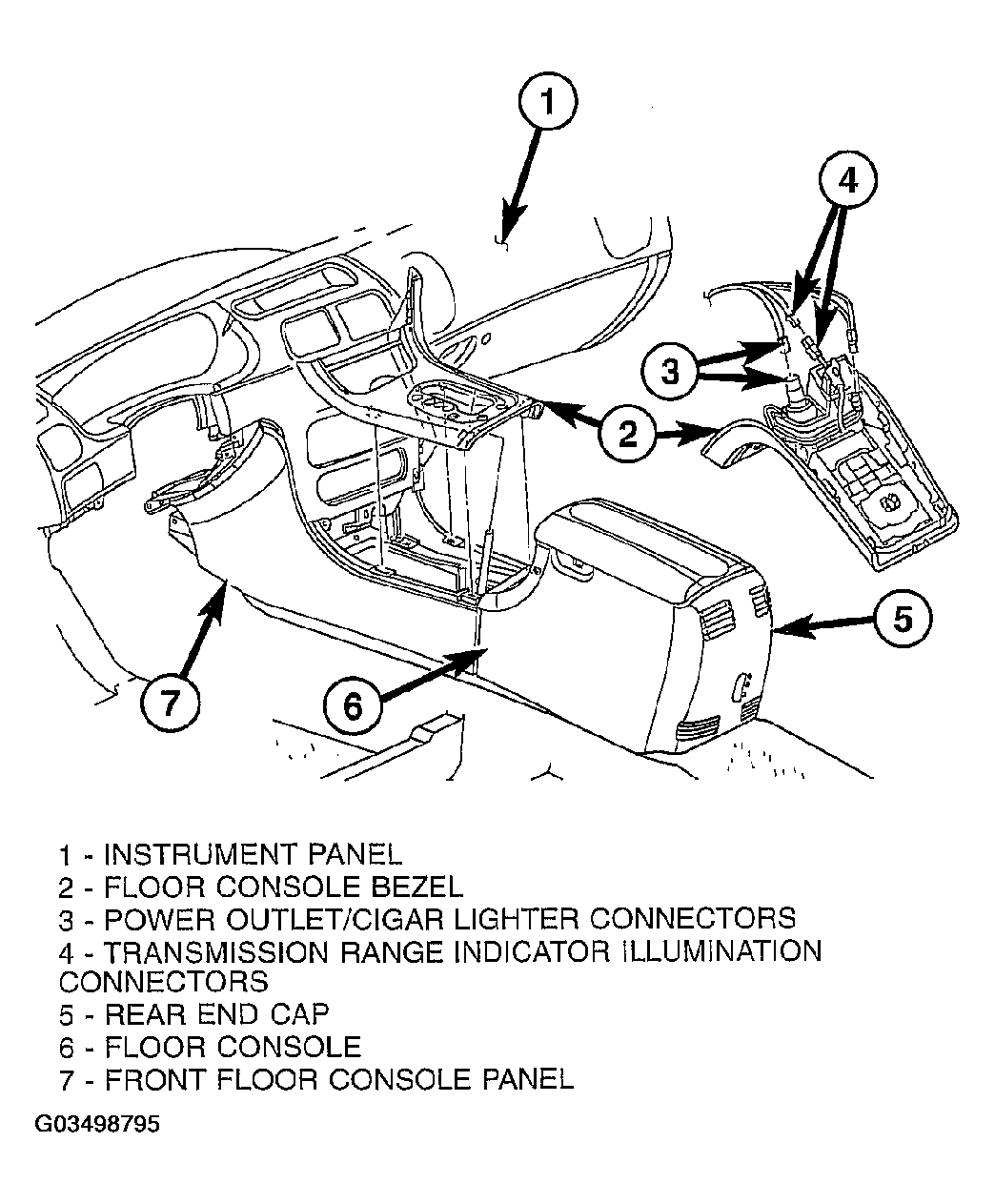

Fig 1: Removing Front Floor Console Side Panels - Concorde
Courtesy of DAIMLERCHRYSLER CORP.

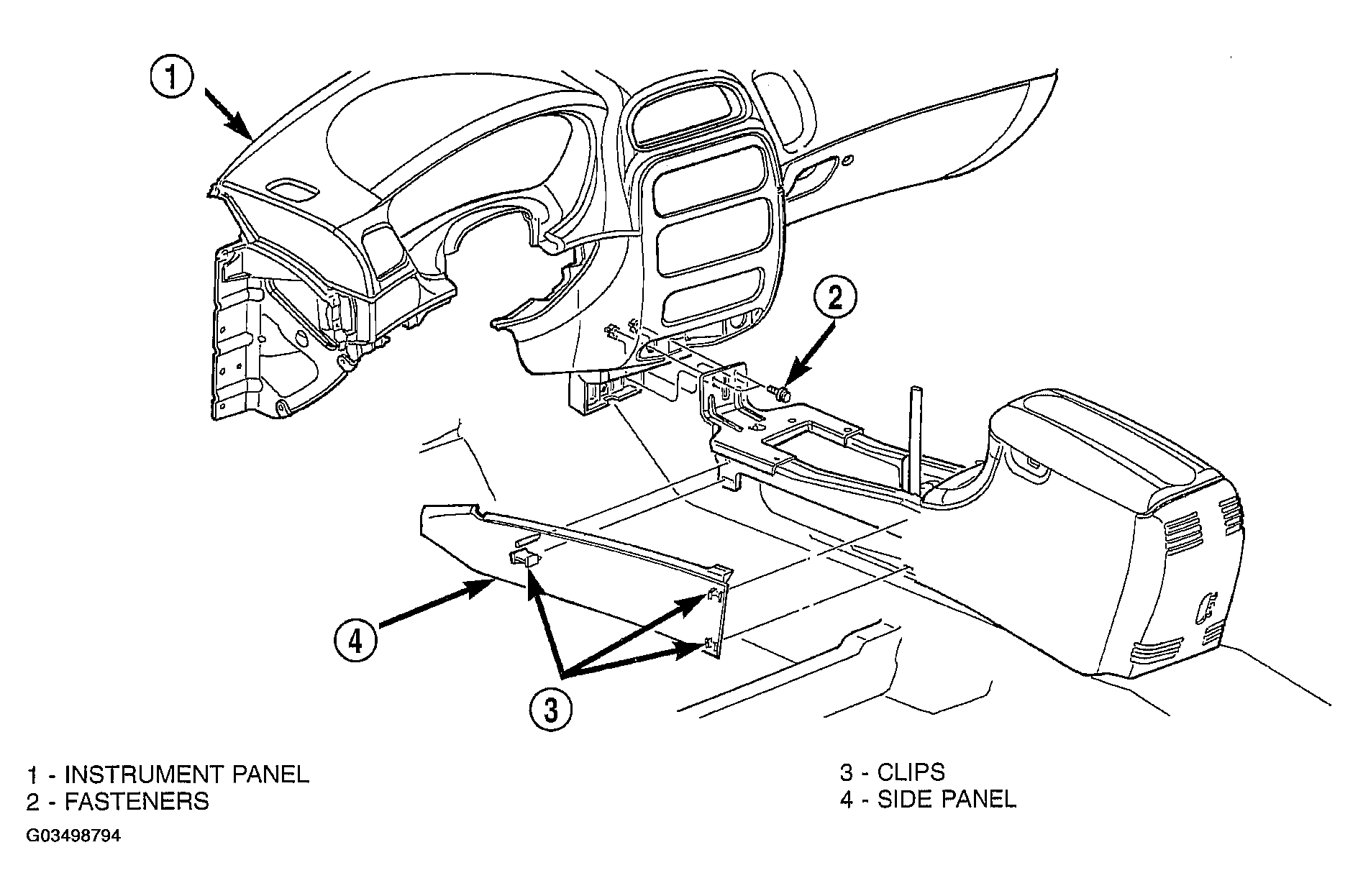

Fig 2: Removing Front Floor Console Side Panels
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connectors.
Remove fasteners attaching forward bracket to instrument panel.
Remove fasteners attaching bottom of console storage bin to rear mounting bracket (Fig 3 ).

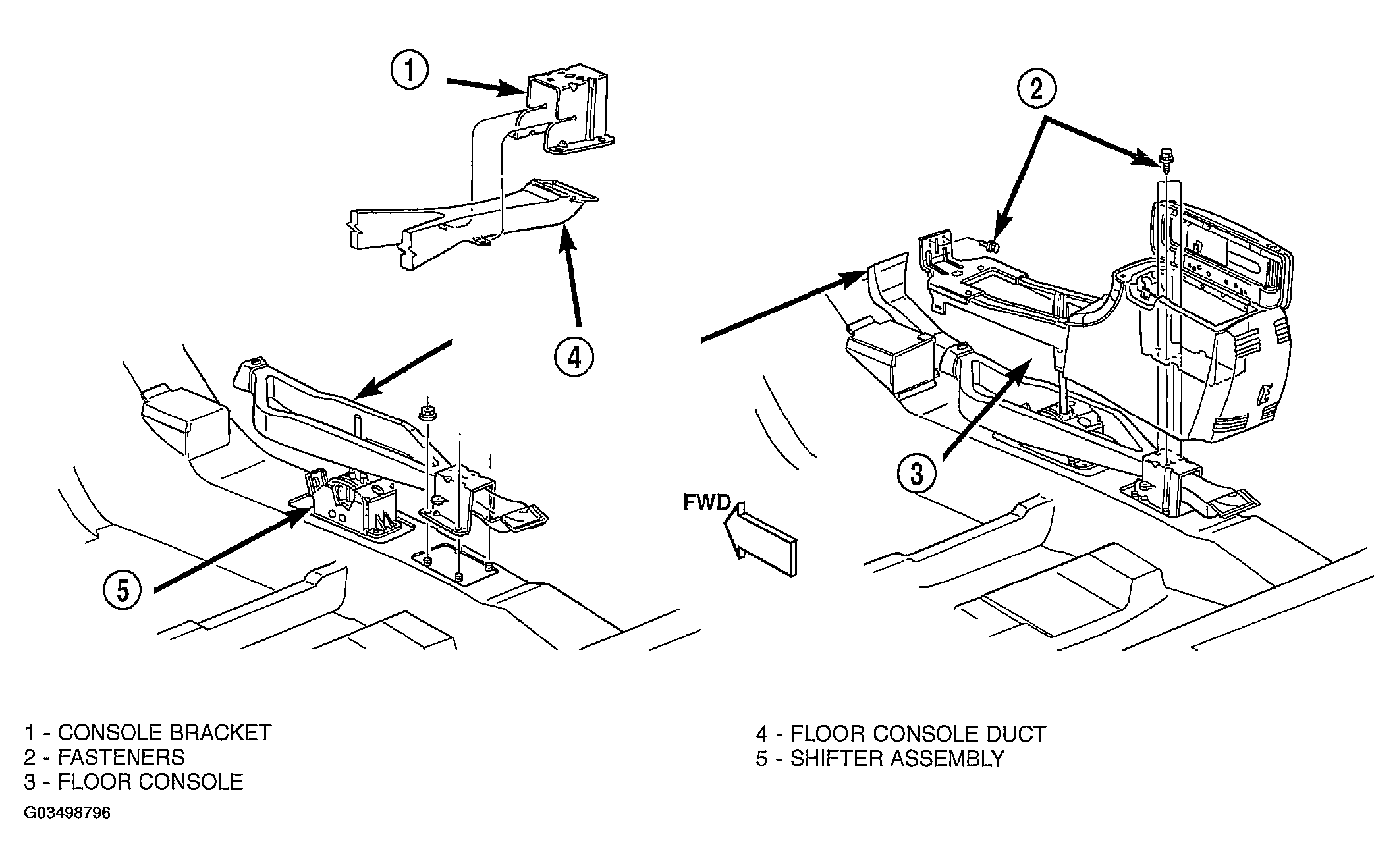

Fig 3: Removing Floor Console
Courtesy of DAIMLERCHRYSLER CORP.
Remove floor console from vehicle.
