Caliper Guide Pin Bushings: Disassembly

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

With one hand, push the guide pin bushing sleeve towards the back of the caliper, and at the same time, pull the sleeve out the back of the caliper and bushing. See Fig 1 .
Using your fingers, collapse one side of the rubber guide pin bushing. Pull the guide pin bushing out the other side of the brake caliper mounting boss. See Fig 2 .

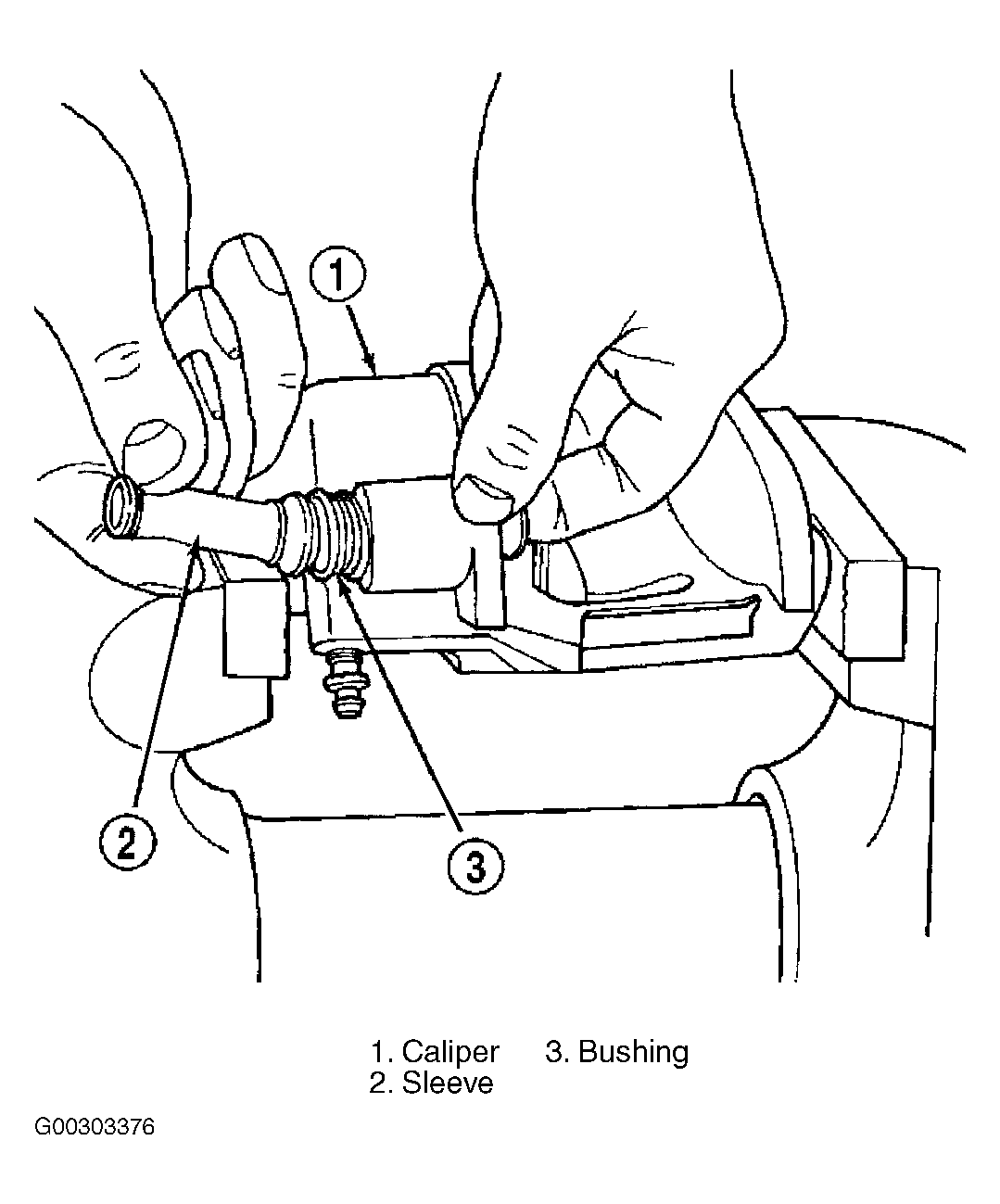

Fig 1: Removing Sleeve From Bushing
Courtesy of CHRYSLER CORP.

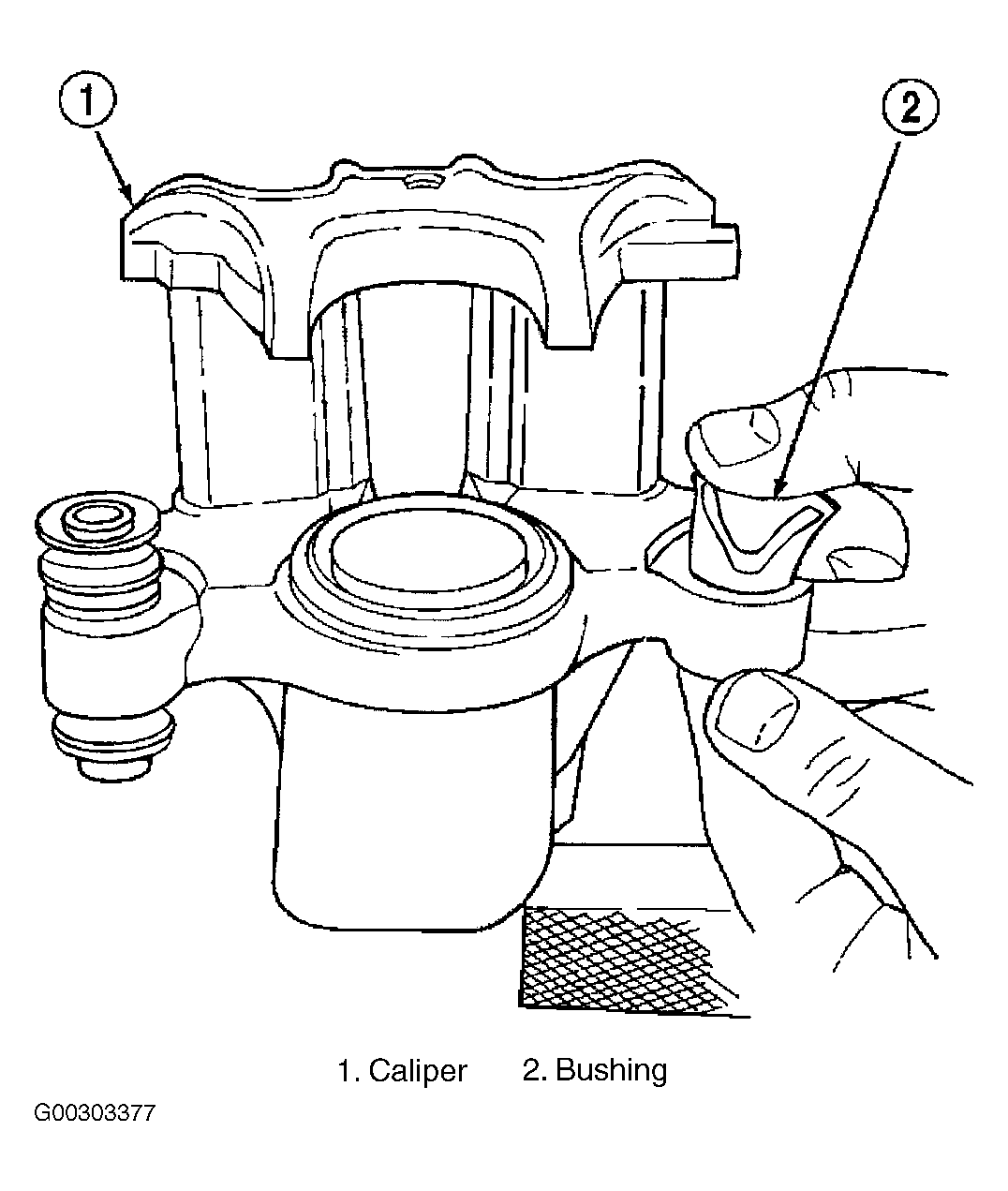

Fig 2: Removing Bushing From Caliper
Courtesy of CHRYSLER CORP.
