A/C Pressure Transducer: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Open hood and disconnect the negative battery cable remote terminal from the remote battery post (Fig 1 ).
Disconnect the wire harness connector from the a/c pressure transducer.
CAUTION: A slight release of pressure trapped in the fitting may be experienced. It is not necessary to discharge the refrigerant system.
Remove the transducer with a counterclockwise rotation using a 14 mm open-end wrench.

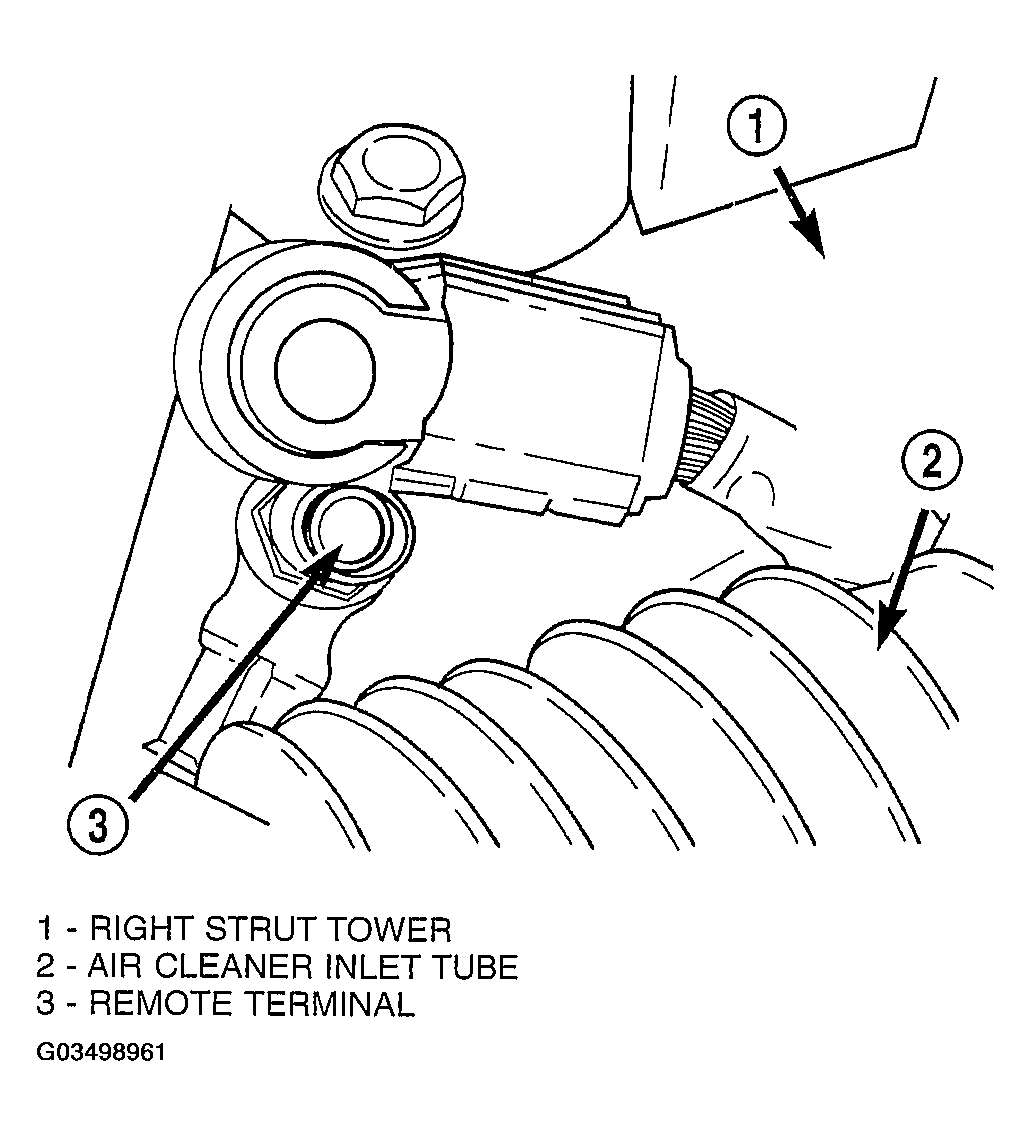

Fig 1: Negative Battery Cable Remote Terminal
Courtesy of DAIMLERCHRYSLER CORP.
