Radiator DRAINCOCK: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DO NOT REMOVE THE CYLINDER BLOCK PLUG OR THE RADIATOR DRAINCOCK WITH THE SYSTEM HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.
CAUTION:
Use of pliers on draincock is not recommended. Damage may occur to part. Draincock should not be removed unless leakage is observed.
- Drain the cooling system.
- Turn the draincock stem counterclockwise 180 degrees to the 9:00 o'clock position.

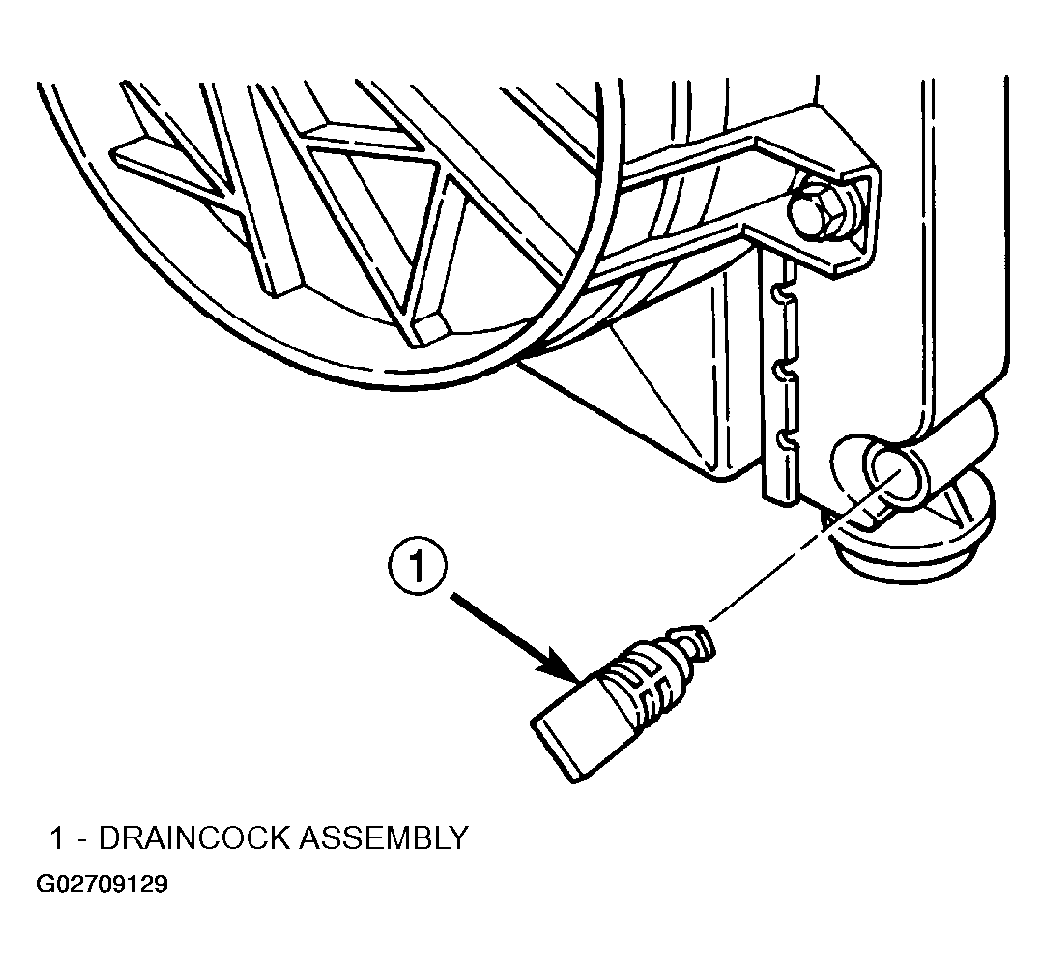

- With the stem at the 9:00 o'clock position, pull the draincock assembly from the radiator tank (Fig 1 ).
