Section 135 (Interior Trim): Carpets: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Remove floor mats.
- Remove door sill trim covers.
- Remove cowl side trim covers.
- Remove front seats.
- Remove bolts attaching front seat belt lower anchors to floor below B-pillar trim panels.
- Remove center console, if equipped.
- Remove rear seat cushion.
- Remove gas pedal bracket.
- Remove carpet fasteners.

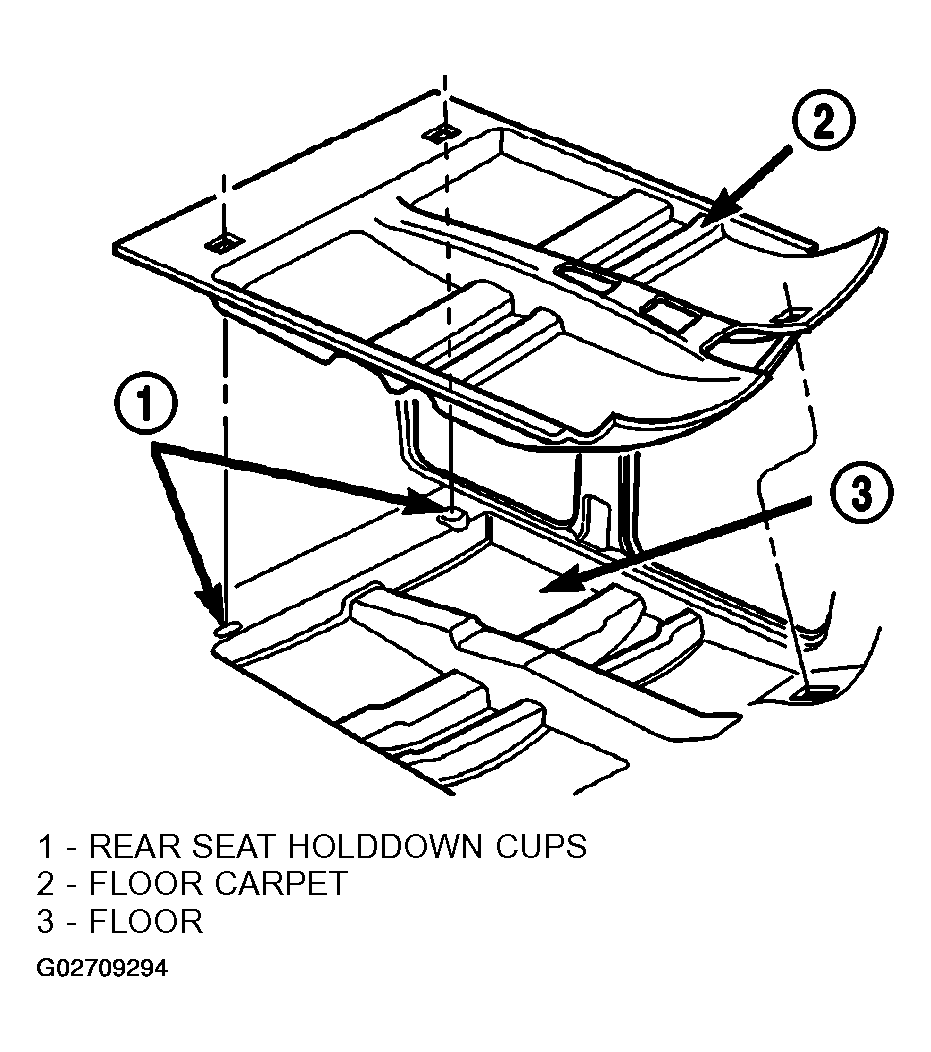

- Remove carpet from vehicle (Fig 1 ).
