Center Console Bezel: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Transmission Range Indicator Lamp (electroluminescent) is not serviceable. Replace Floor Console Panel for replacement of the lamp.

Set park brake and place gear selector in neutral.
Remove instrument panel center bezel.
Loosen set screw attaching gear shift knob to gear shift.
Remove gear shift knob from gear shift.
Disengage clips attaching bezel to floor console (Fig 1 ) or (Fig 2 ).
Disconnect the power outlet, if equipped.
Disconnect the transmission range indicator illumination connector.
Remove bezel from vehicle.

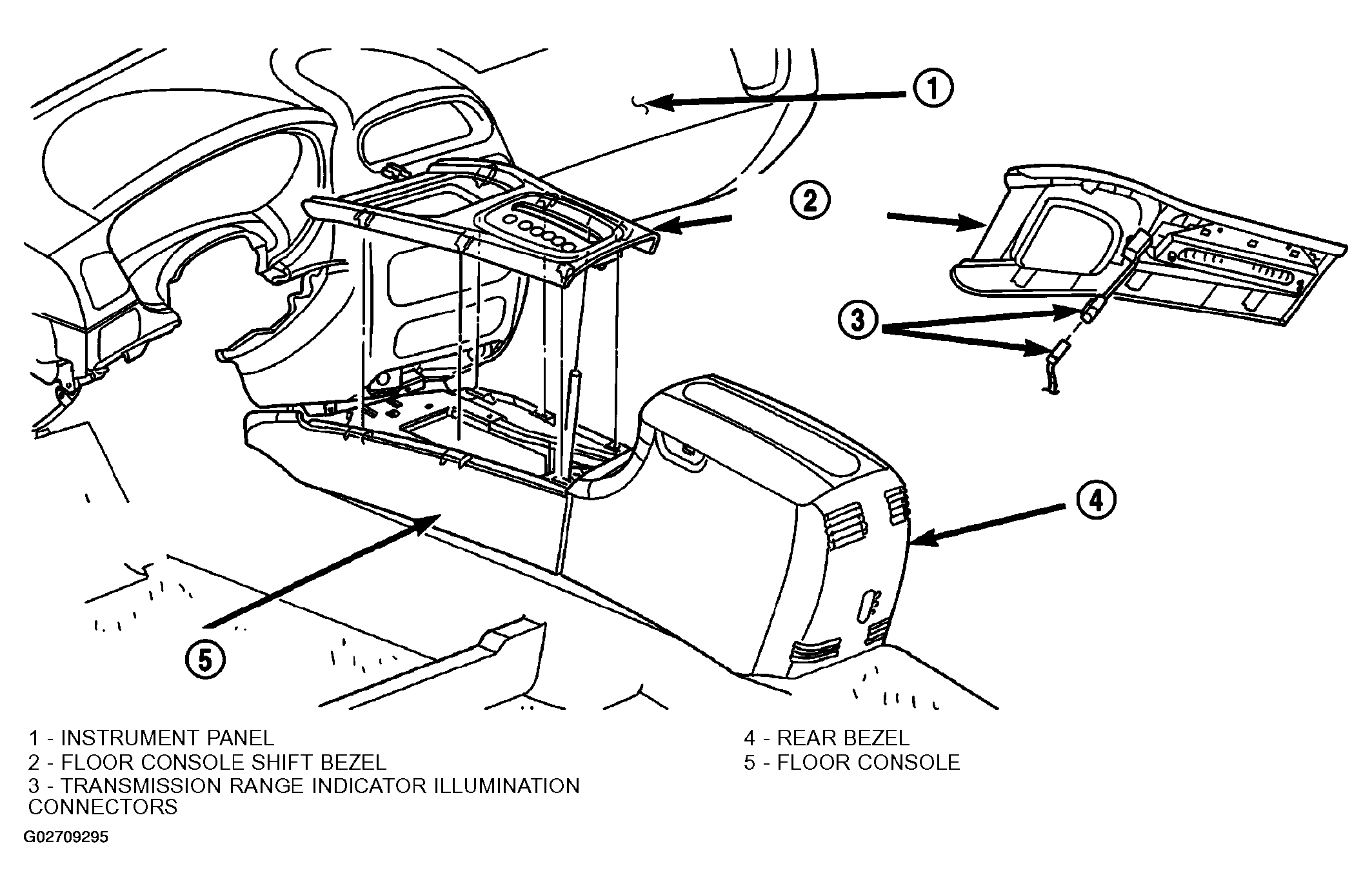

Fig 1: Removing Floor Console Bezel - Concorde
Courtesy of DAIMLERCHRYSLER CORP.

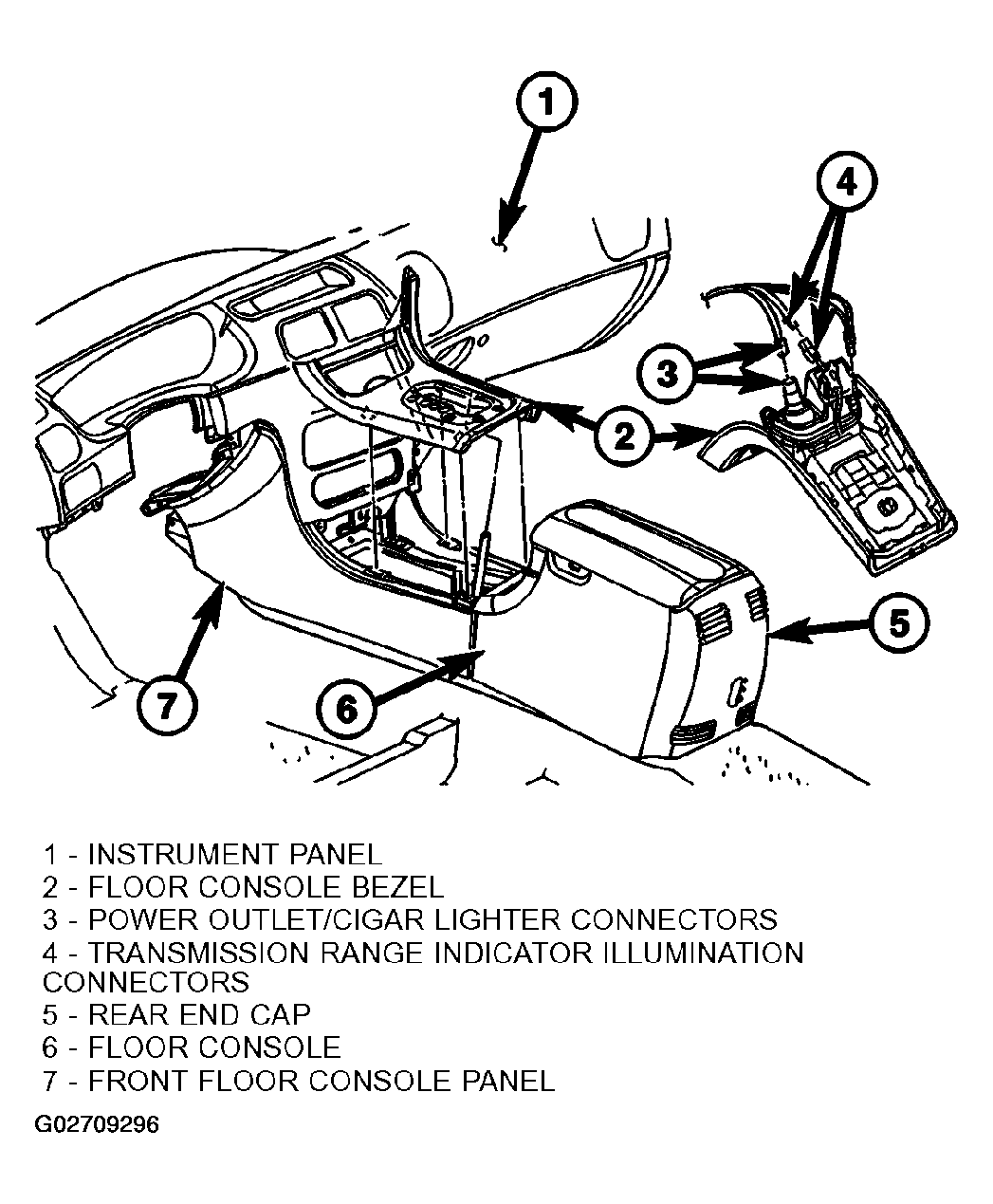

Fig 2: Identifying Front Floor Console Side Panels - Intrepid Shown - 300M Similar
Courtesy of DAIMLERCHRYSLER CORP.
