Ambient Temp Sensor: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

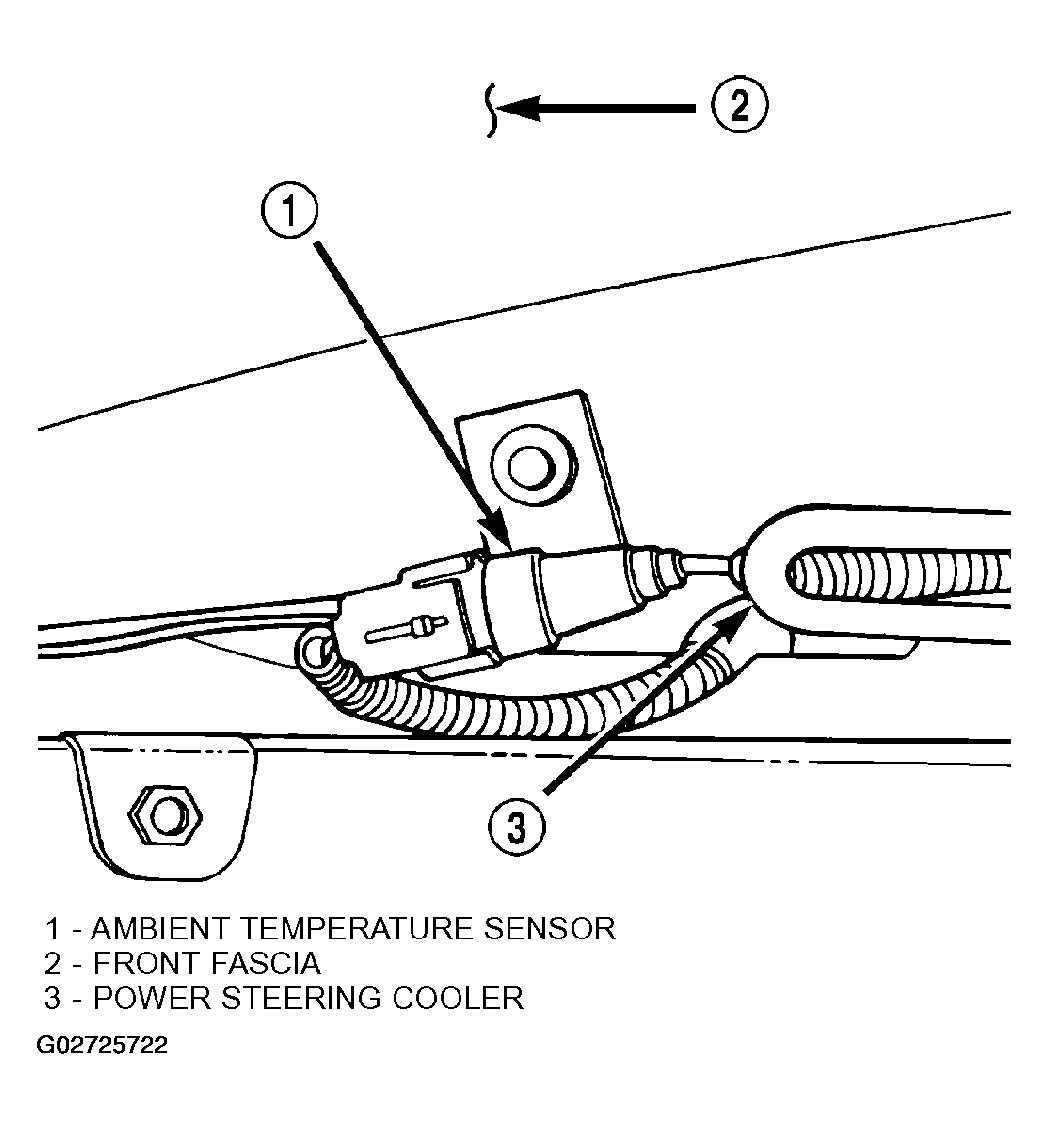

The ambient air temperature sensor is located on the inside of the right front bumper beam Fig 1 . This sensor will inform the ATC system of the ambient temperature outside the vehicle. This sensor is used by the ATC system to adjust blower speed, temperature offsets, evaporator temperatures and mode control.
- Remove sensor mounting screw.
- Disconnect sensor wiring connector.
