Flex Plate: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

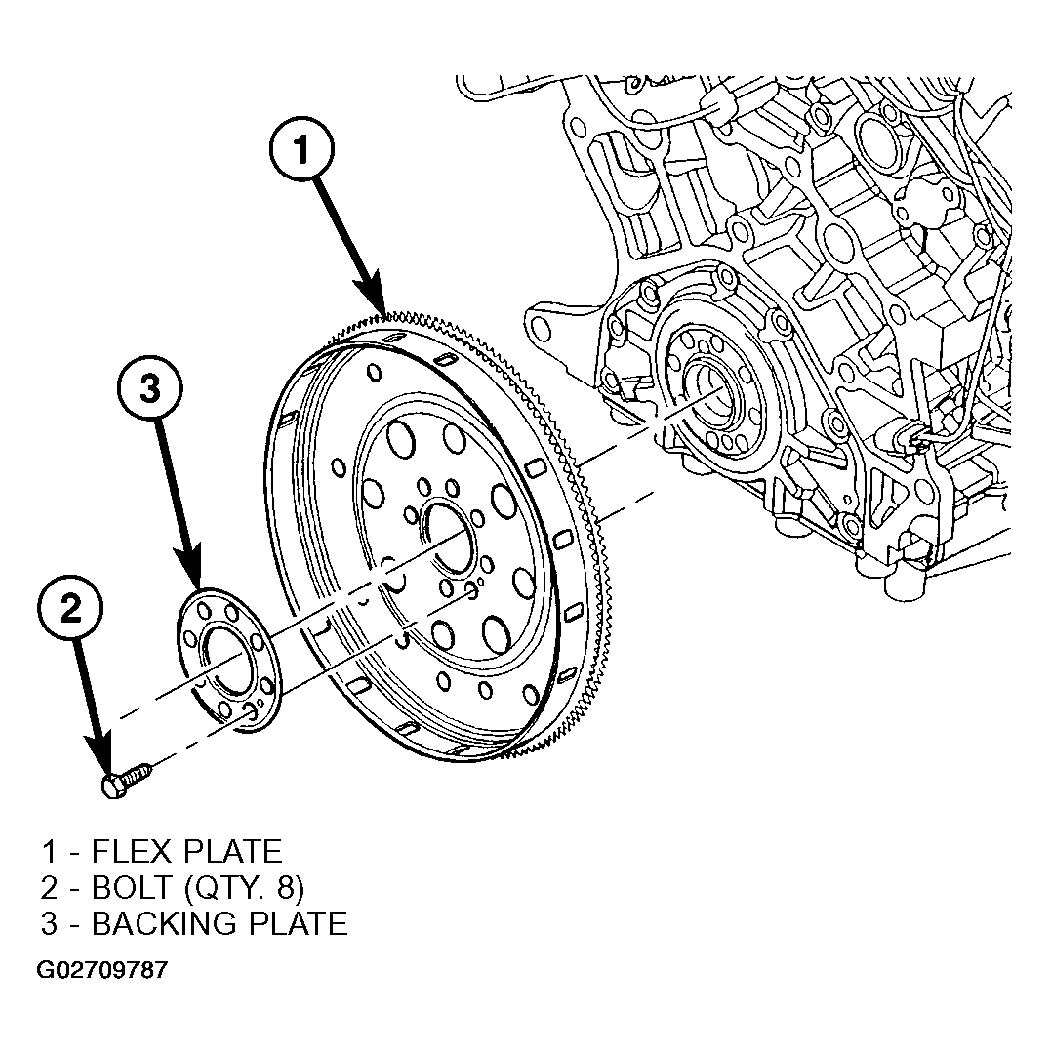

Position flex plate with backing plate on the crankshaft (Figure).
Apply Mopar® Lock and Seal Adhesive to the flex plate bolts.
Install flex plate bolts (Figure). Tighten bolts to 95 N.m (70 ft. lbs.).
Install the transaxle.
