Intake Manifold - Upper: Installation
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and inspect gasket sealing surfaces.NOTE: Intake gaskets can be reused, provided they are free of cuts or tears.
- Inspect gasket for cuts or tears. Replace gaskets as necessary.

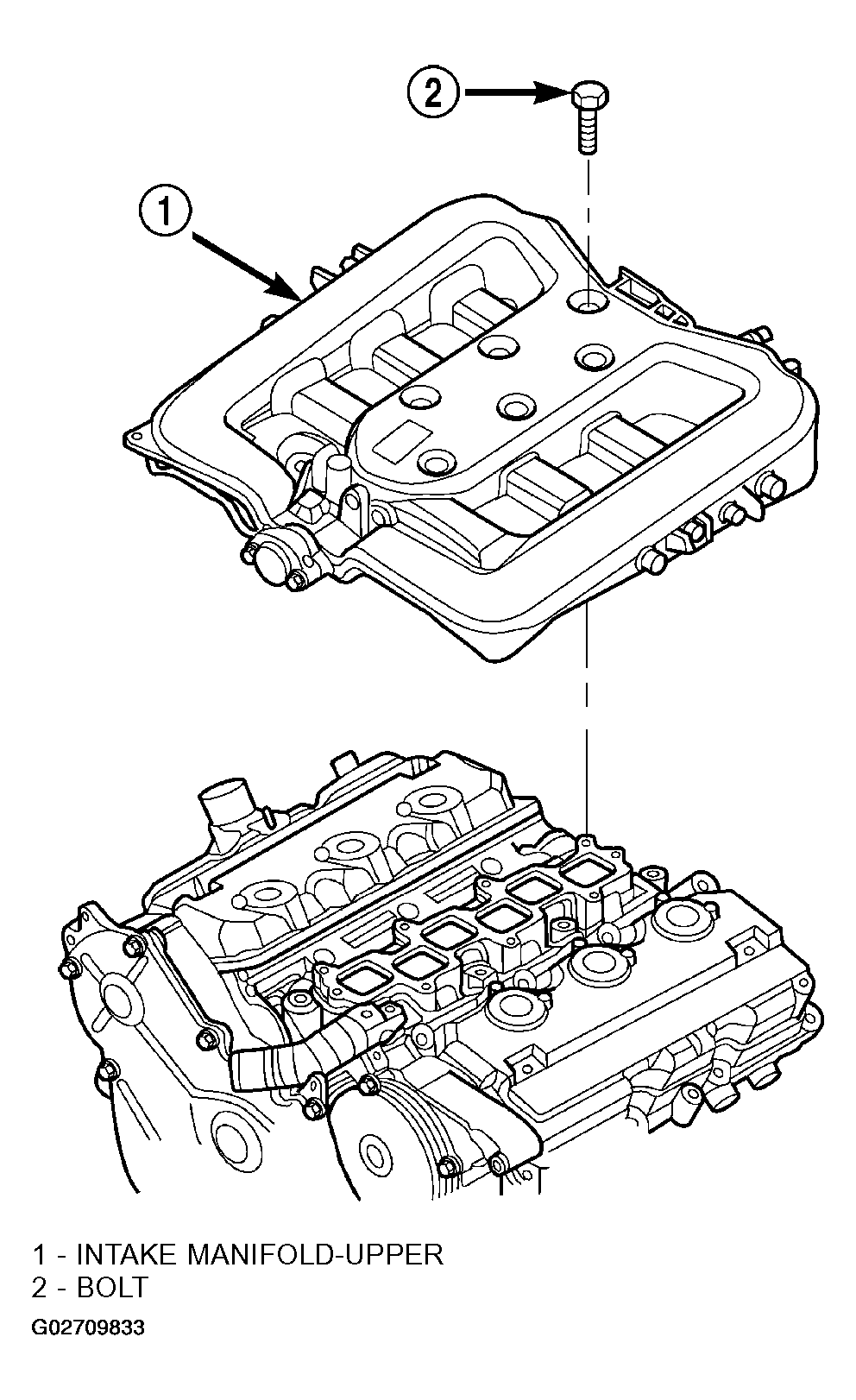

- Install intake manifold (Figure) and hand start all attaching bolts.

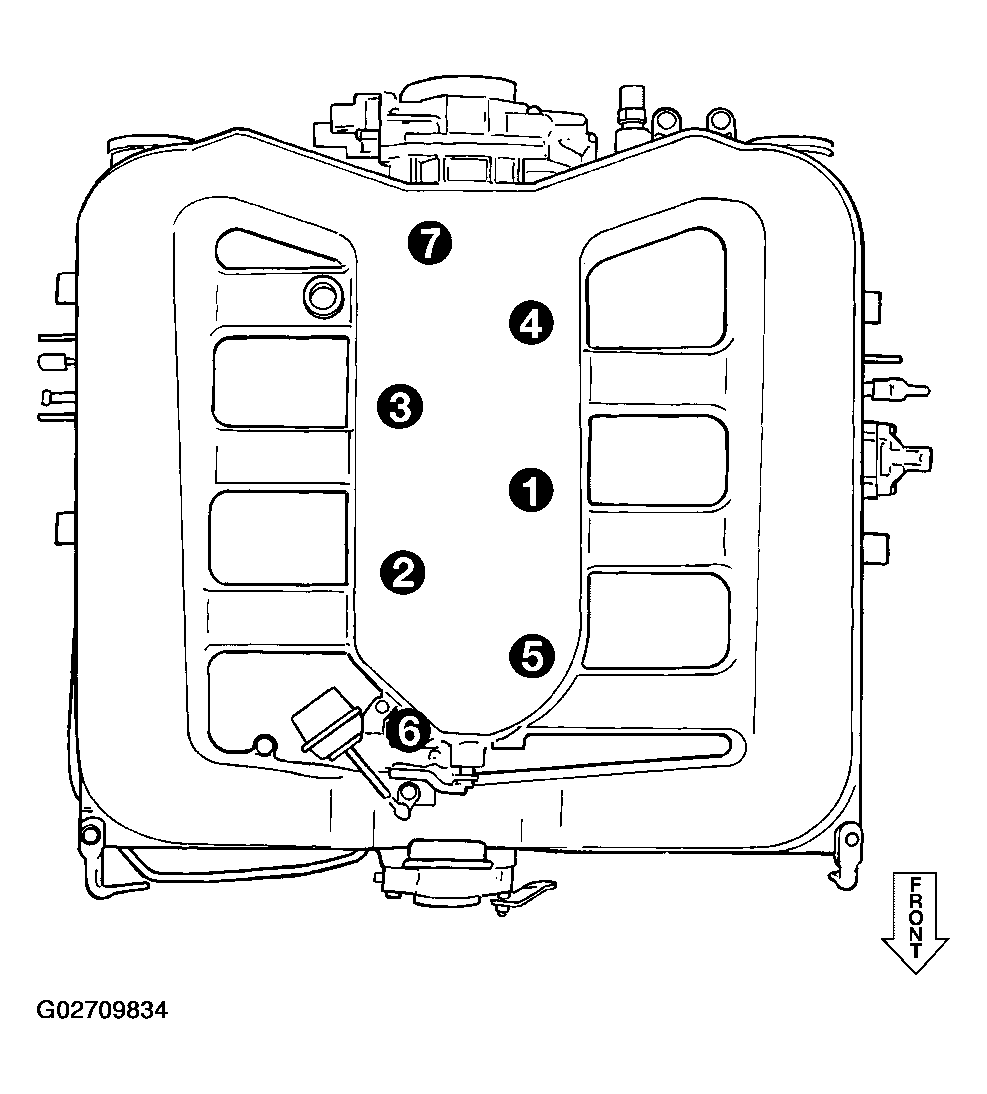

- Tighten bolts gradually in sequence shown in (Fig 1) until a torque of 12 N.m (105 in. lbs.) is obtained.

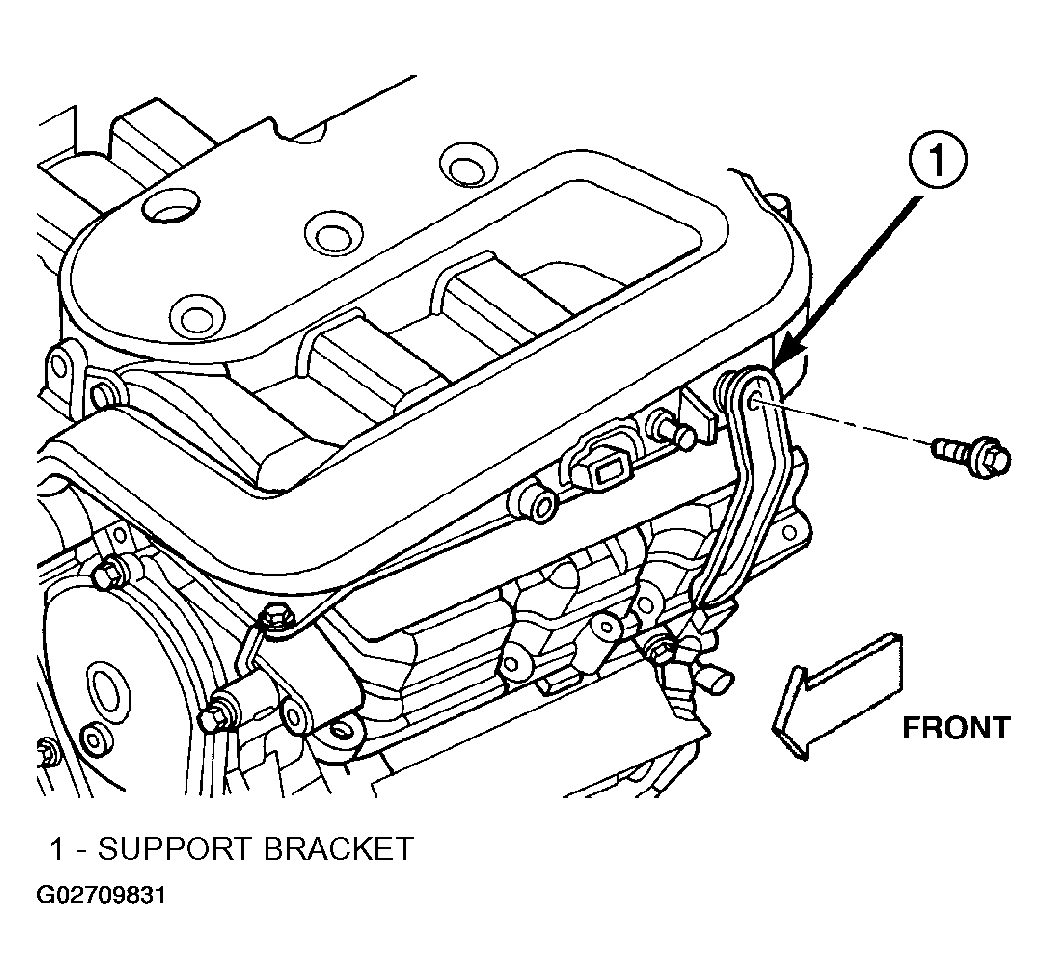

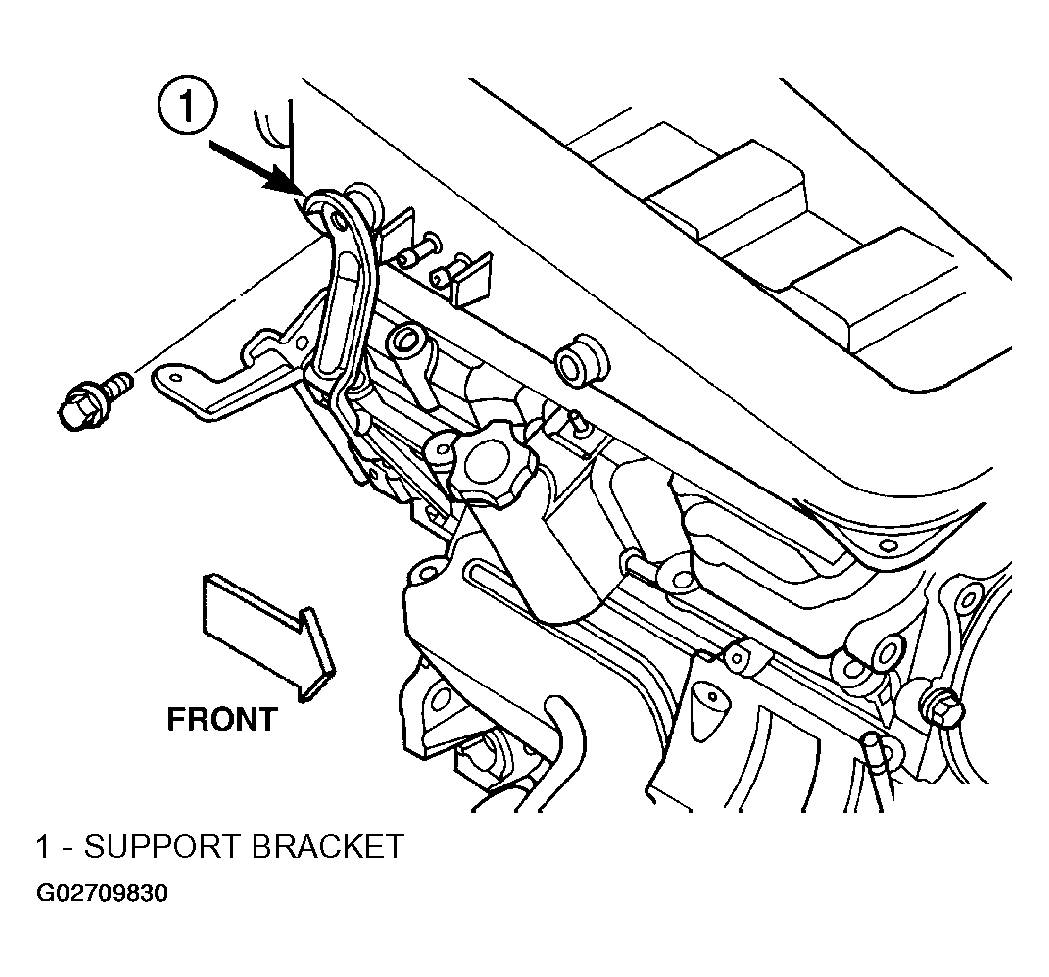

- Install right side (Figure) and left side (Figure) intake manifold supports.

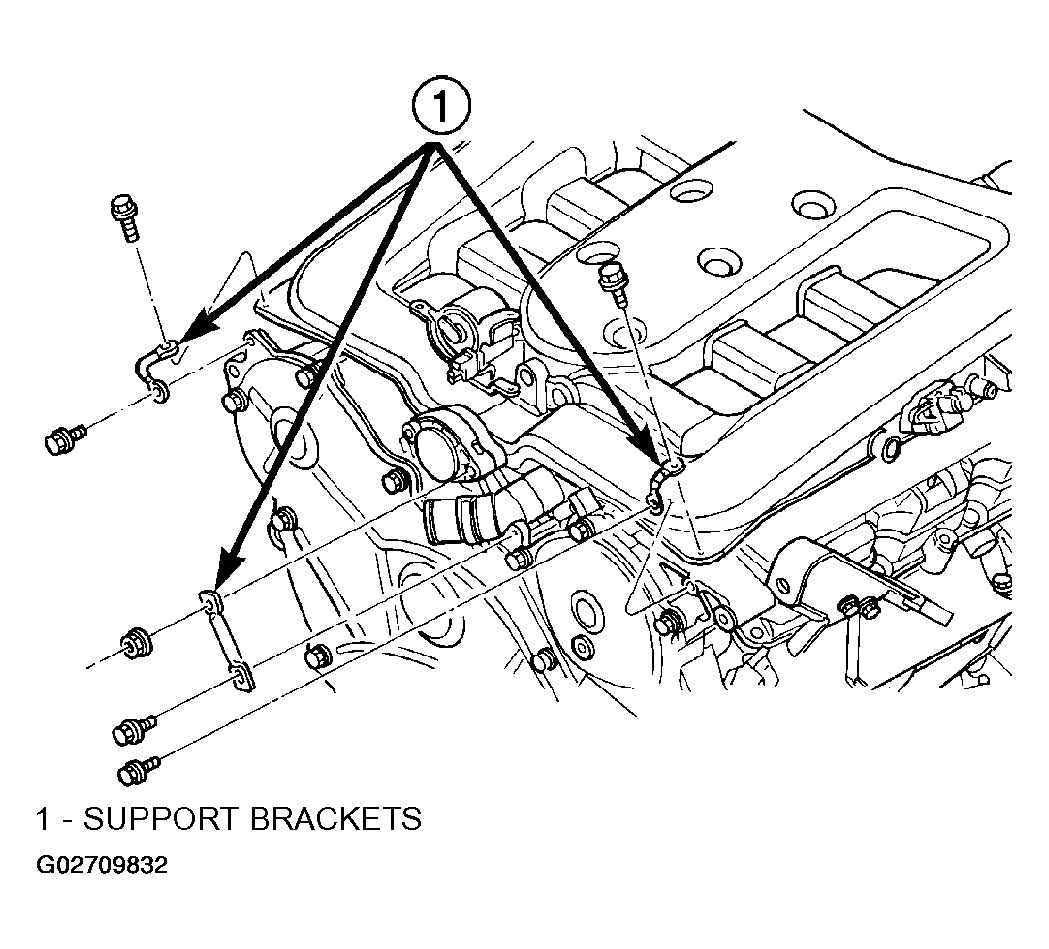

- Install manifold support brackets at front corners and at MTV (Figure).
- Tighten fastener attaching throttle body to support bracket.
- Connect vacuum lines to the following:
- Speed Control Reservoir
- Positive Crankcase Ventilation (PCV) Valve
- Proportional Purge Solenoid
- Power Brake Booster
- Connect electrical connectors to the following:
- Short Runner Valve (SRV) (If Equipped)
- Manifold Tuning Valve (MTV) (If Equipped)
- Throttle Position Sensor (TPS)
- Idle Air Control (IAC)
- Manifold Absolute Pressure (MAP)
- Install throttle and speed control cables to bracket and throttle arm.

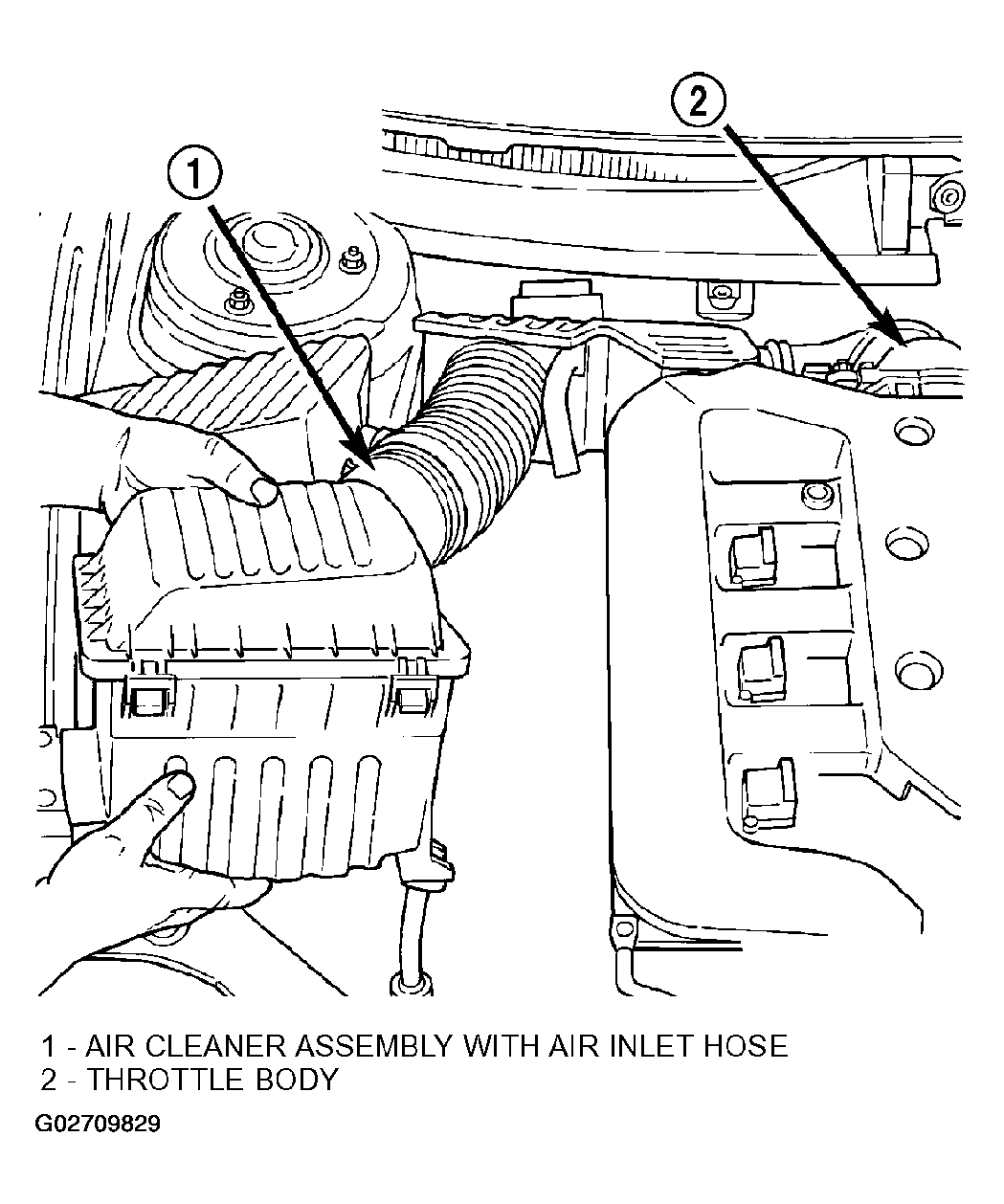

- Install air cleaner housing and inlet hose (Figure). Connect Inlet Air Temperature (IAT) Sensor connector.
- Connect negative cable to remote jumper terminal.
