Valve Stem Seals: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

The valve stem seal/valve spring seat should be pushed firmly and squarely over the valve guide using the valve stem as guide. Do Not Force seal against top of guide. When installing the valve retainer locks, compress the spring only enough to install the locks.
CAUTION: Do not remove garter spring around the seal at the top of the valve stem seal (Fig 1).
Install valve spring. (Refer to INSTALLATION ).

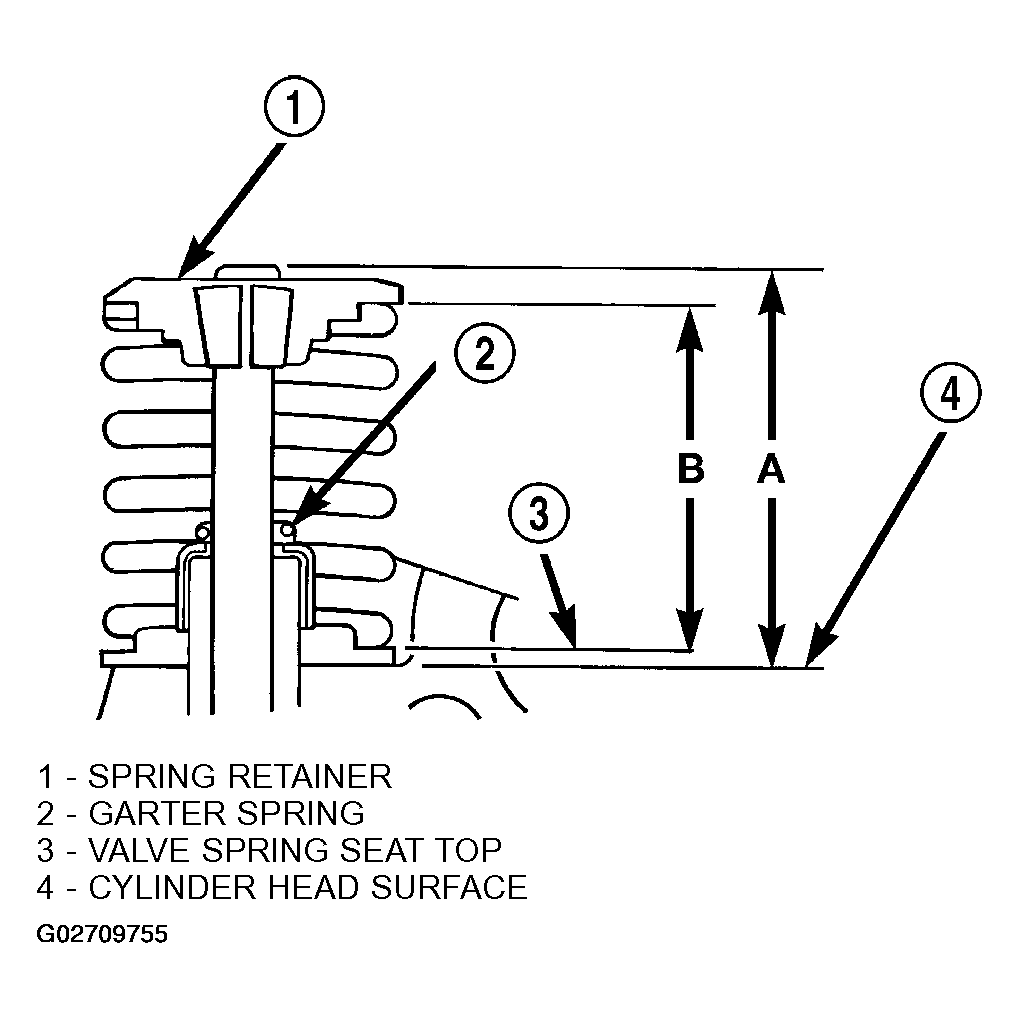

Fig 1: Checking Valve Tip Height And Valve Spring
Courtesy of DAIMLERCHRYSLER CORP.
