Vibration Damper: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig 1). Install center bolt and tighten to 115 N.m (85 ft. lbs.) (Figure).

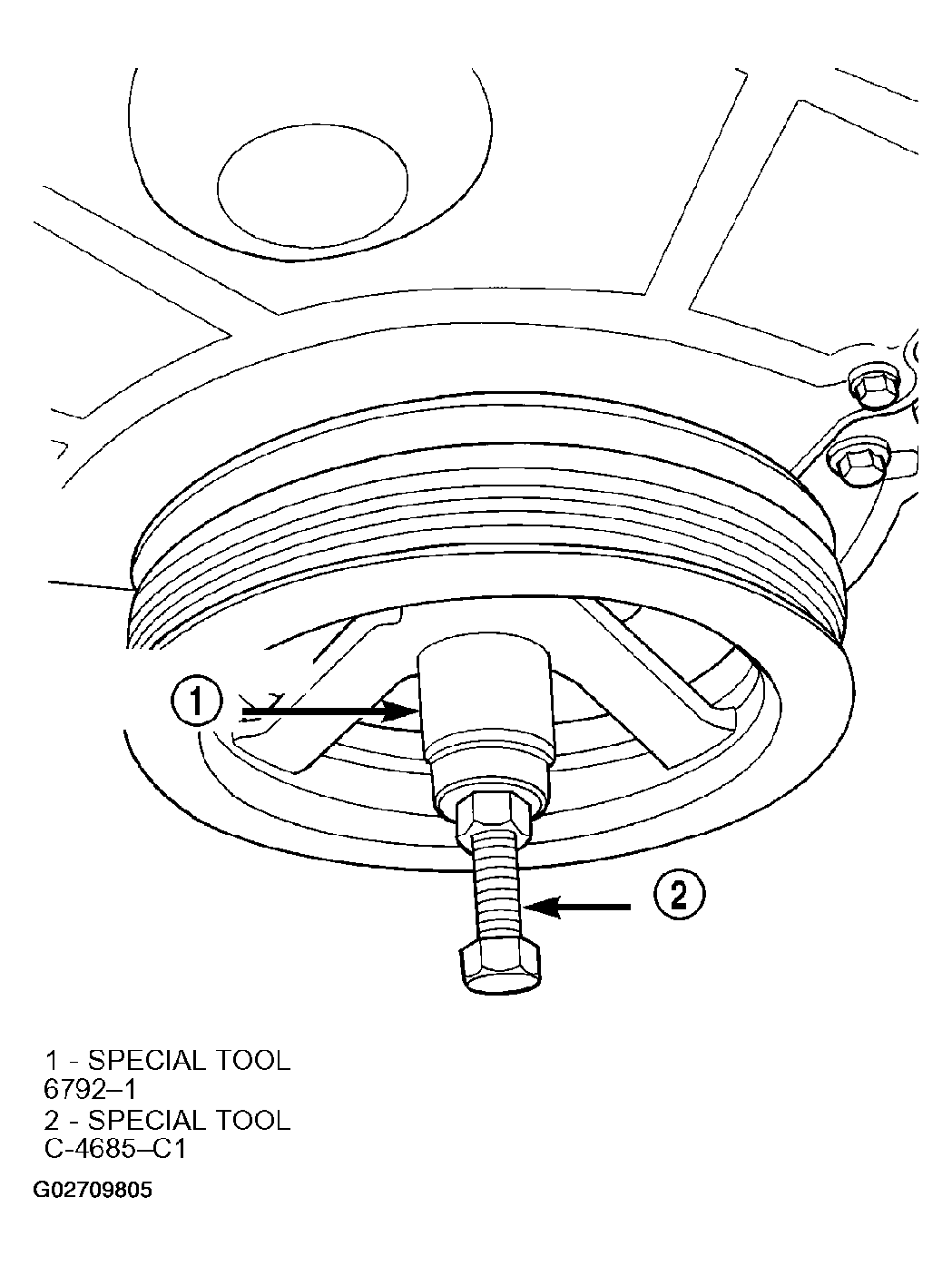

    Fig 1: Installing Crankshaft Damper
    G02709805Courtesy of DAIMLERCHRYSLER CORP.
  2. Install accessory drive belts. (Refer to ACCESSORY DRIVE ).
  3. Install radiator fan. (Refer to RADIATOR FAN ).
  4. Install upper radiator crossmember.
  5. Connect negative cable.
