Vibration Damper: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable at right strut tower.
Remove upper radiator crossmember.
Remove radiator fan. (Refer to RADIATOR FAN ).
Remove the accessory drive belts. (Refer to ACCESSORY DRIVE ).
Use Special Tool 8191 to hold crankshaft damper while removing center bolt (Fig 1).
Use Special Tool 1023 puller, and insert C-4685-C2, remove crankshaft damper (Fig 2).

Fig 1: Removing Crankshaft Damper Center Bolt

Courtesy of DAIMLERCHRYSLER CORP.

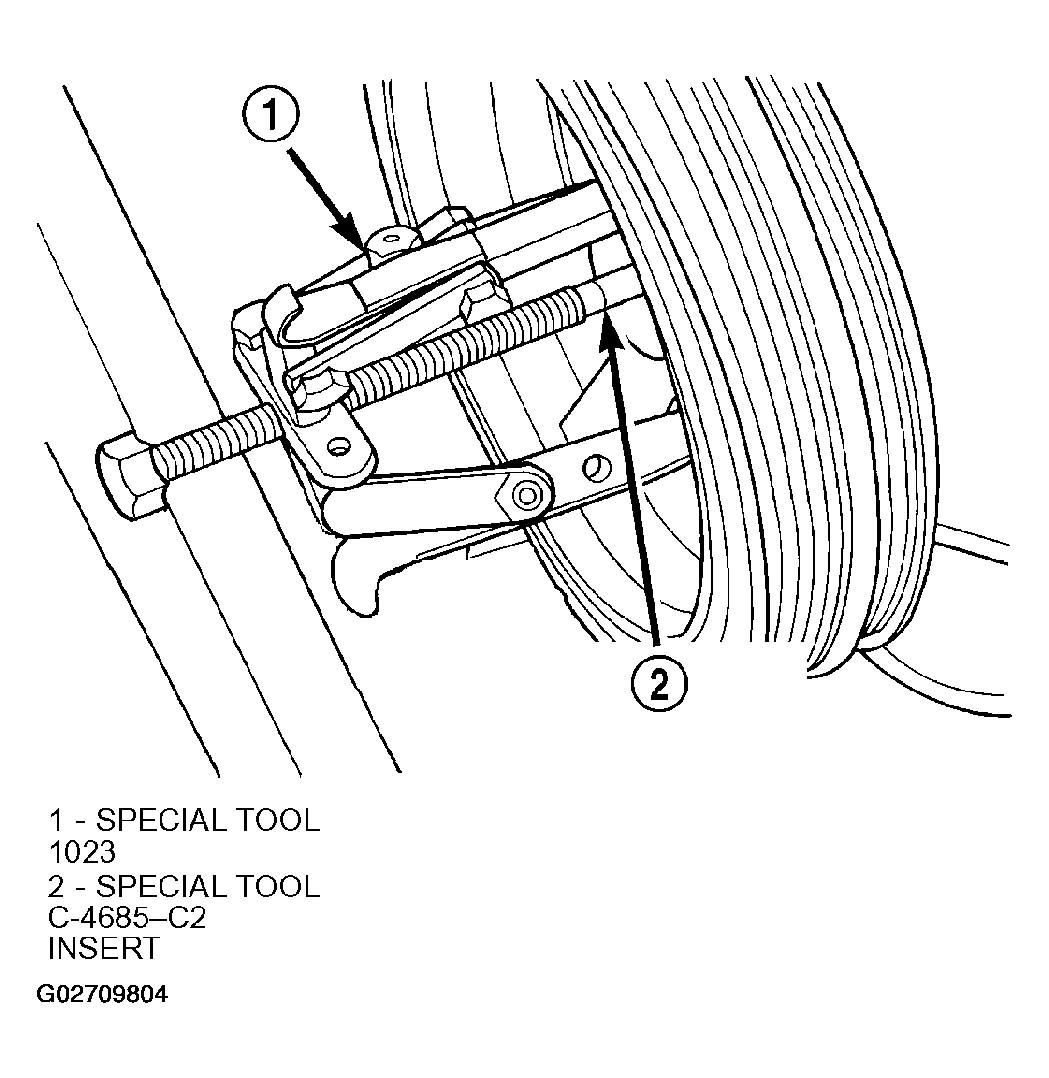

Fig 2: Removing Crankshaft Damper

Courtesy of DAIMLERCHRYSLER CORP.
