Connector PINOUTS

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying A/C Compressor Clutch - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying A/C Pressure Transducer - Gray 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Airbag Control Module (Orc) - Yellow/Red 23 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Ambient Temperature Sensor - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

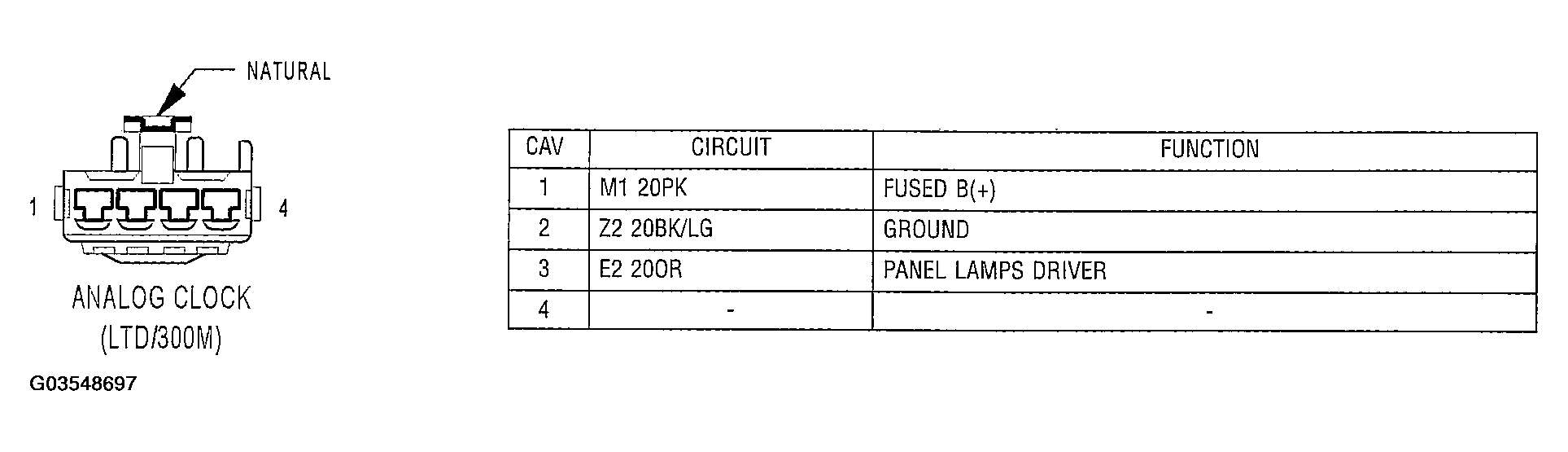

Fig 5: Identifying Analog Clock (LTD/300M) - Natural 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Identifying Automatic Temperature Control Head - Black 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

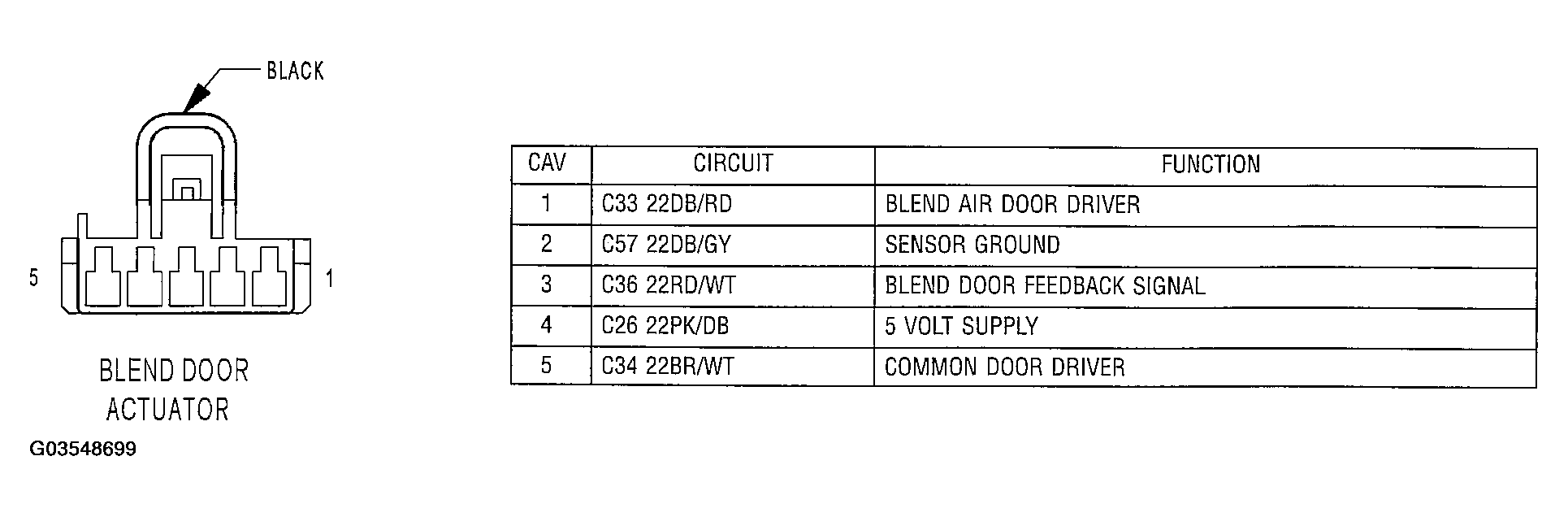

Fig 7: Identifying Blend Door Actuator - Black 5 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Identifying Blower Motor Power Module (ATC) - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Blower Motor Resistor Block - Black 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Body Control Module C1 - Gray 14 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Body Control Module C2 - Black 24 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Body Control Module C3 - Natural 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying Body Control Module C4 - Blue 16 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying Brake Fluid Level Switch - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying C202 (MTC) - Natural (HVAC Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying C202 (MTC) - Natural (Instrument Panel Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

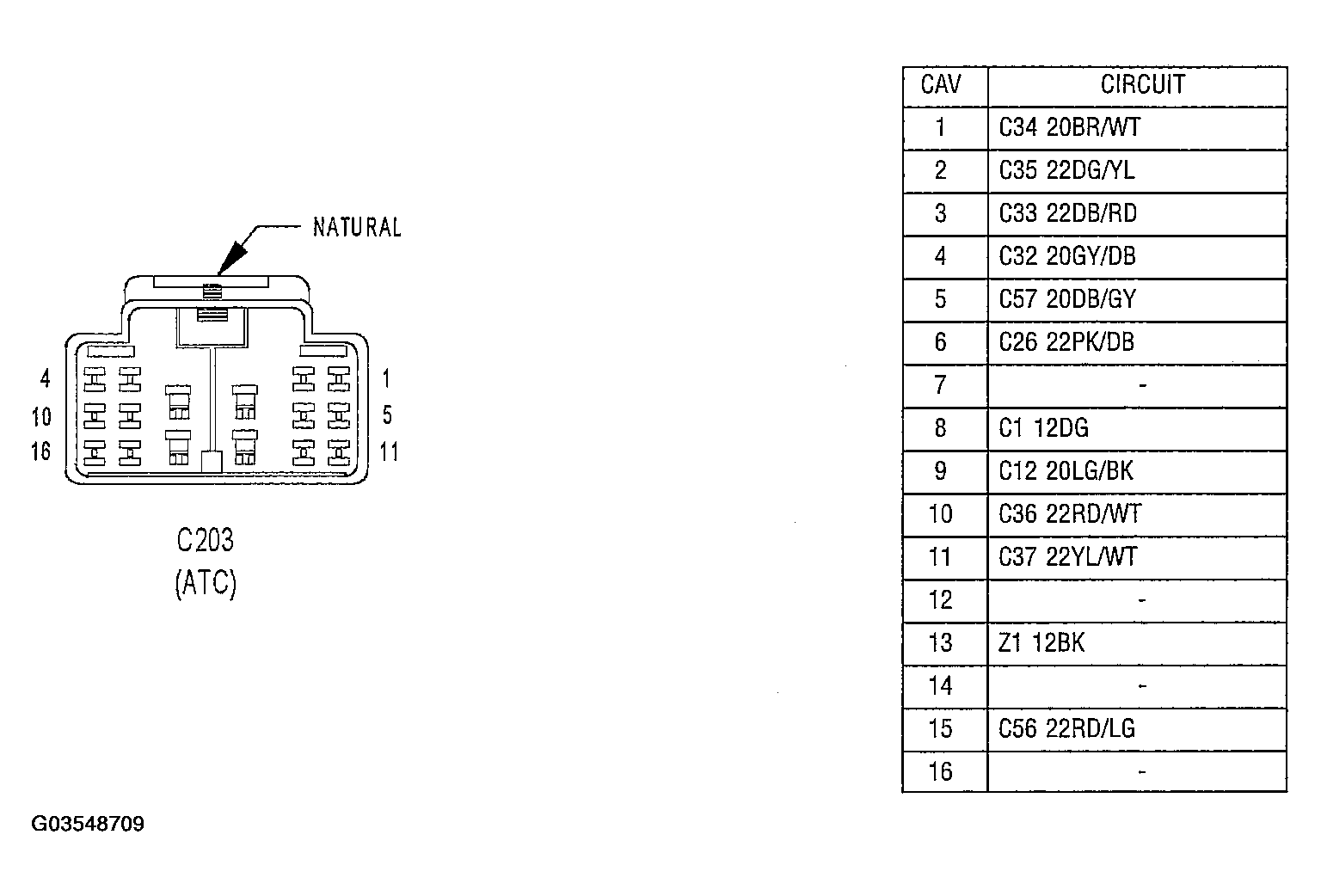

Fig 17: Identifying C203 (ATC) - Natural (HVAC Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

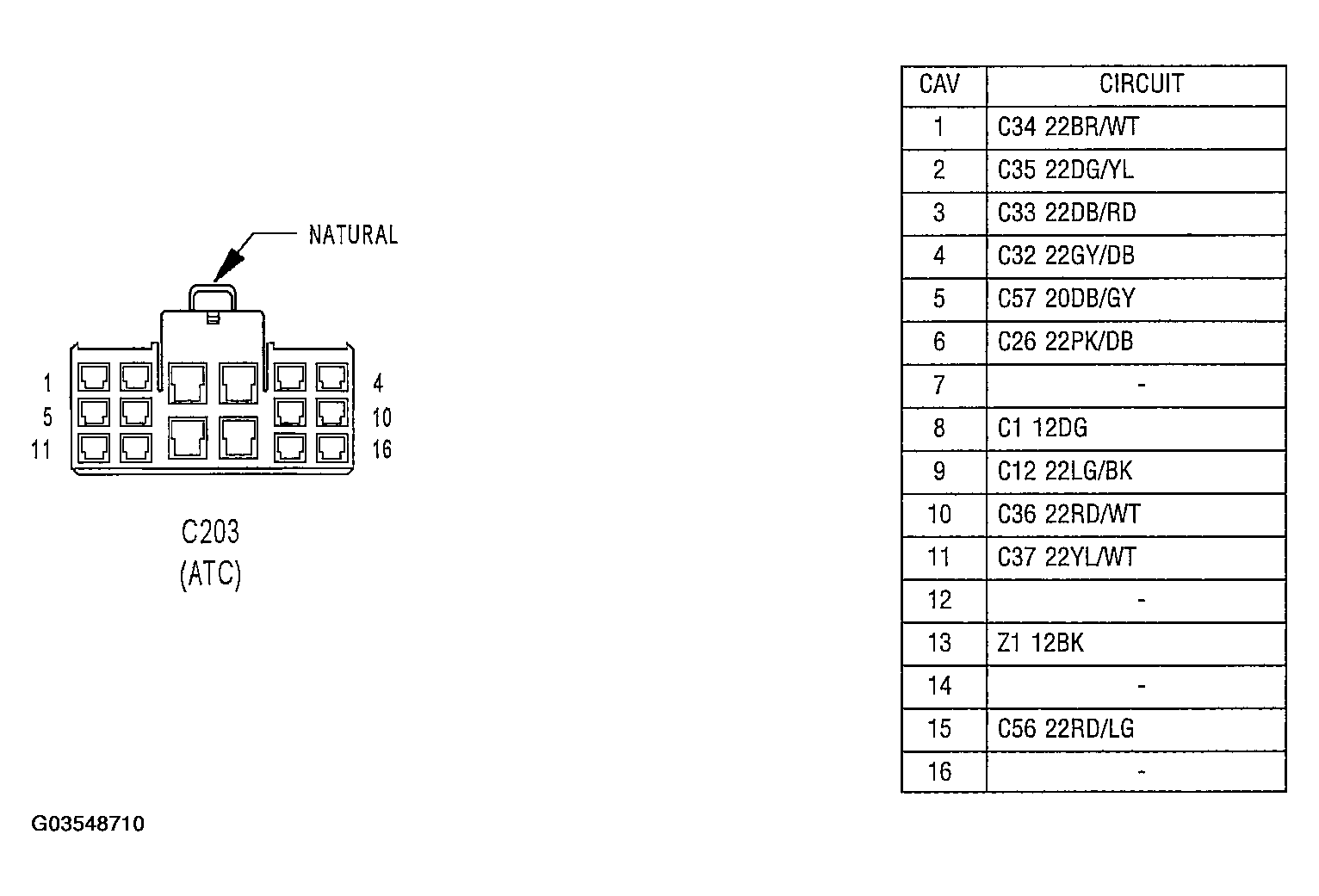

Fig 18: Identifying C203 (ATC) - Natural (Instrument Panel Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Identifying C309 - Yellow (SAB Jumper Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Identifying C309 - Yellow (SAB Overlay Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Identifying C310 - Yellow (SAB Jumper Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Identifying C310 - Yellow (SAB Overlay Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 23: Identifying Center Instrument Panel Speaker - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Identifying Clockspring C1 - Natural 5 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Identifying Clockspring C2 - Yellow 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Identifying Clockspring C3 - 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Identifying Compact Disc Changer (Midline/Premium) - Black 8 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

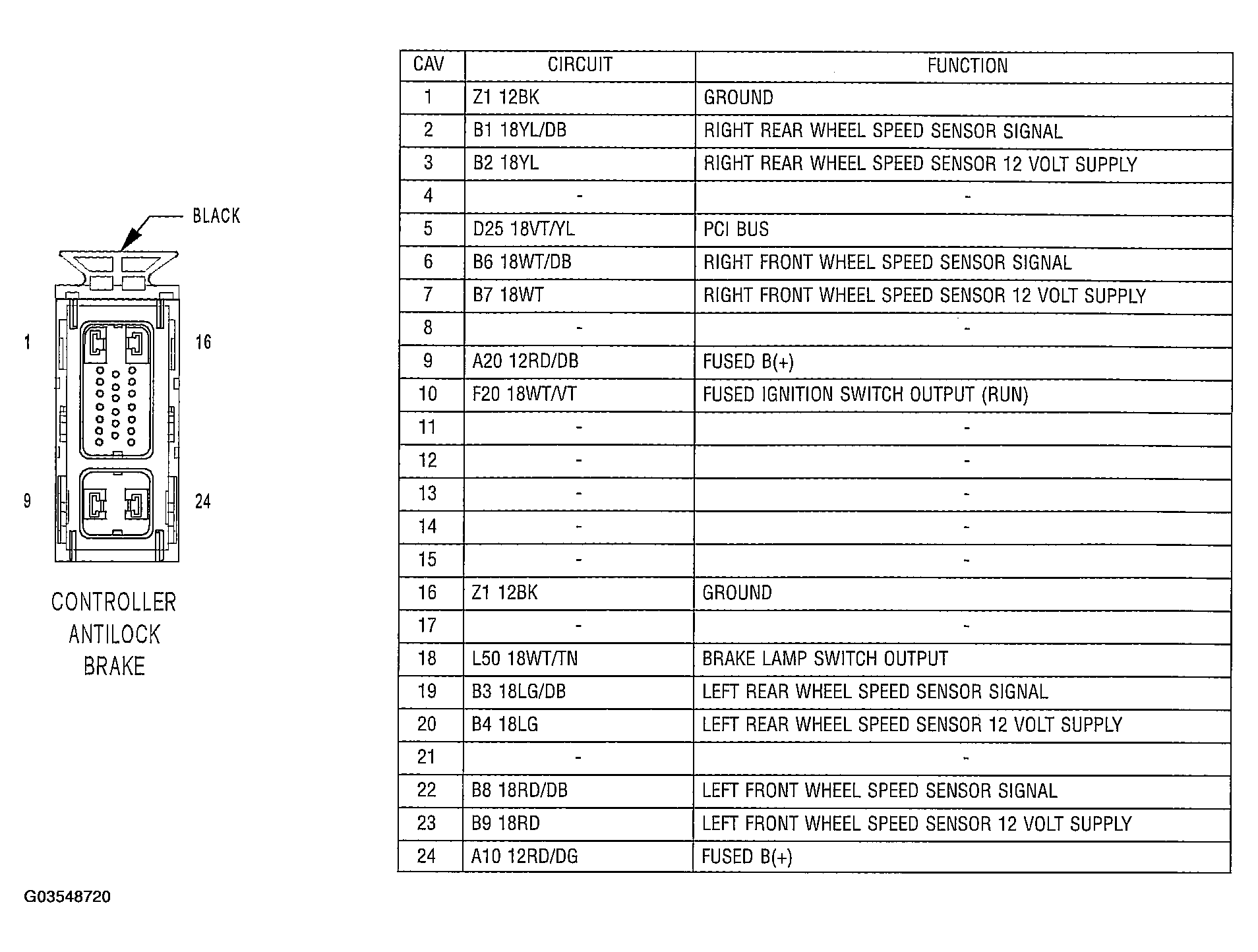

Fig 28: Identifying Controller Antilock Brake - Black 24 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

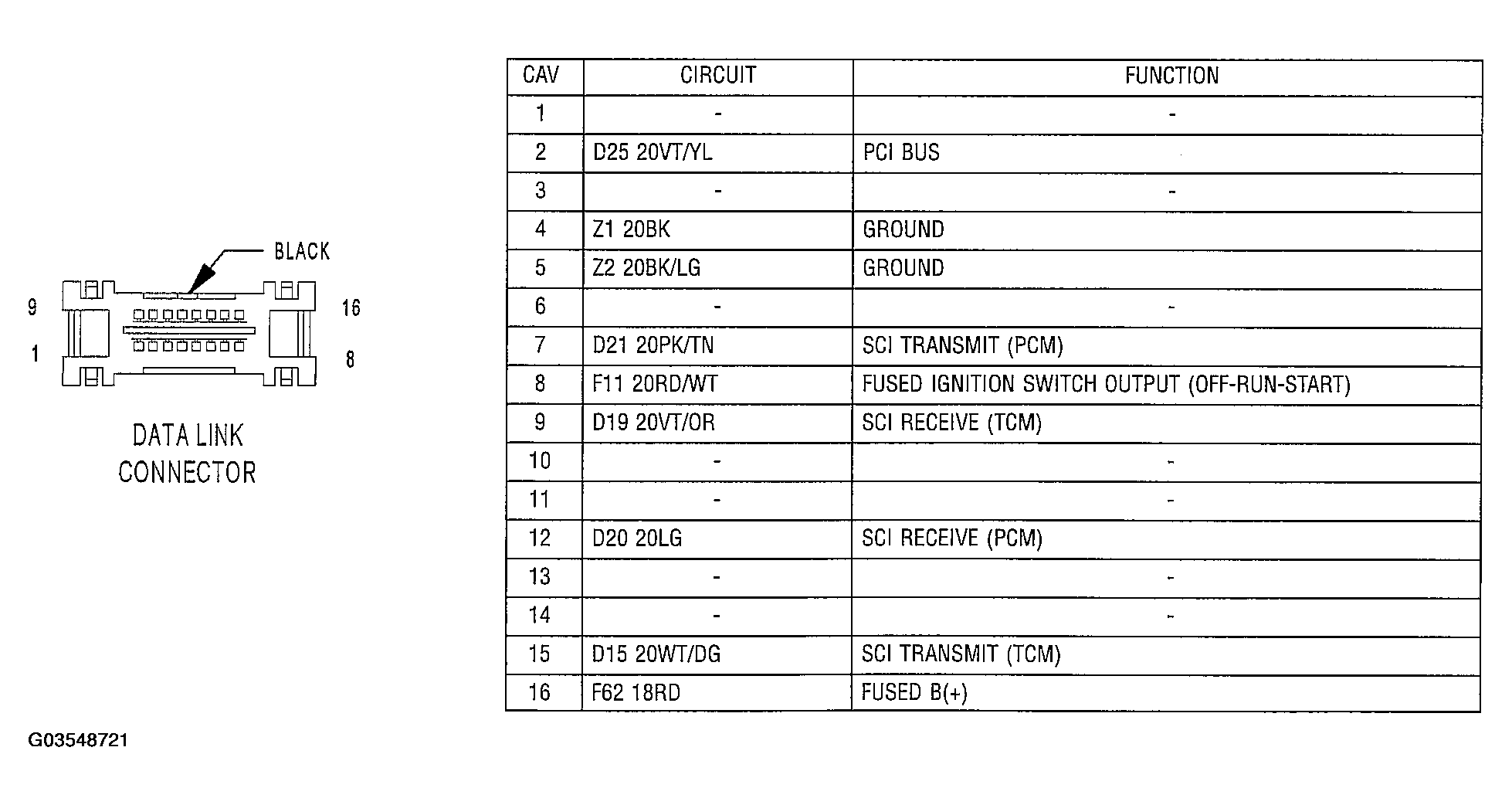

Fig 29: Identifying Data Link Connector - Black 16 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

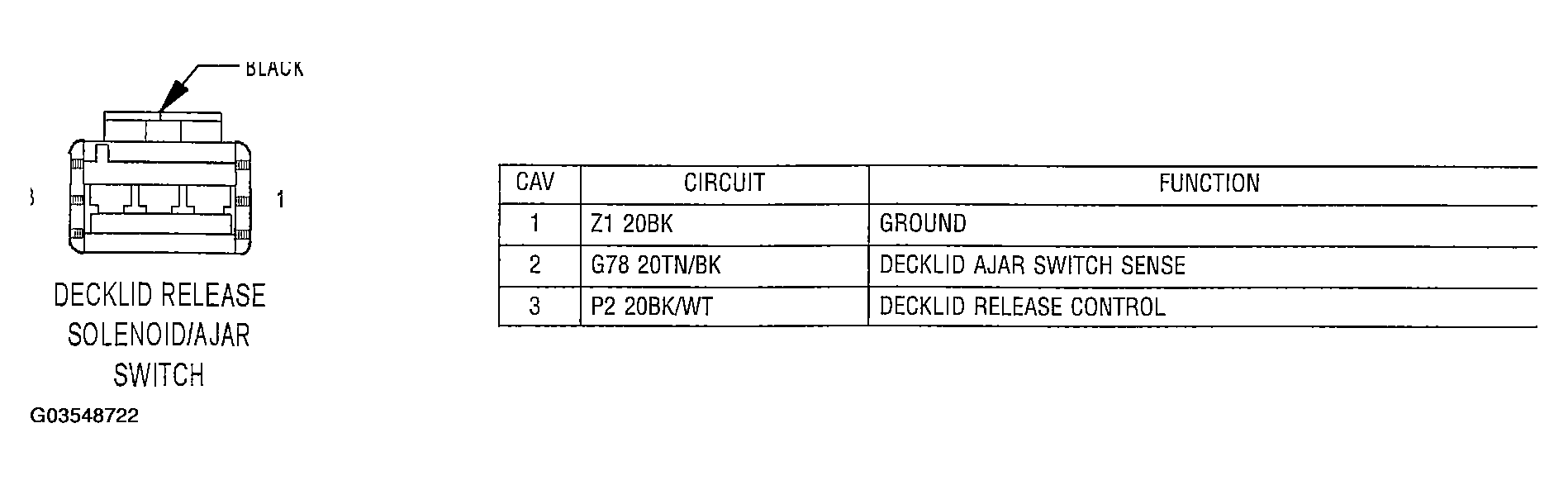

Fig 30: Identifying Decklid Release Solenoid/Ajar Switch - Black 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Identifying Decklid Release Switch - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 32: Identifying Driver Airbag Squib - Yellow 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Identifying Driver Cylinder Lock Switch - Gray 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Driver Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 35: Identifying Driver Heated Seat Back - Green 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

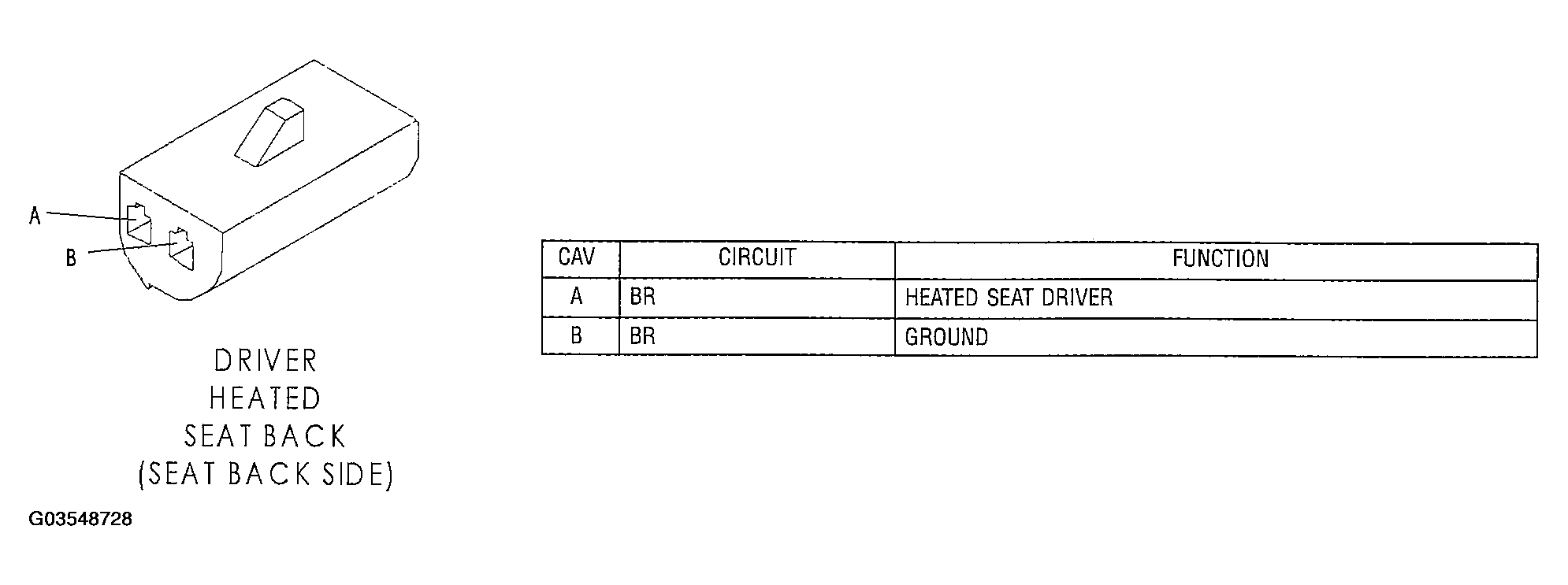

Fig 36: Identifying Driver Heated Seat Back (Seat Back Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

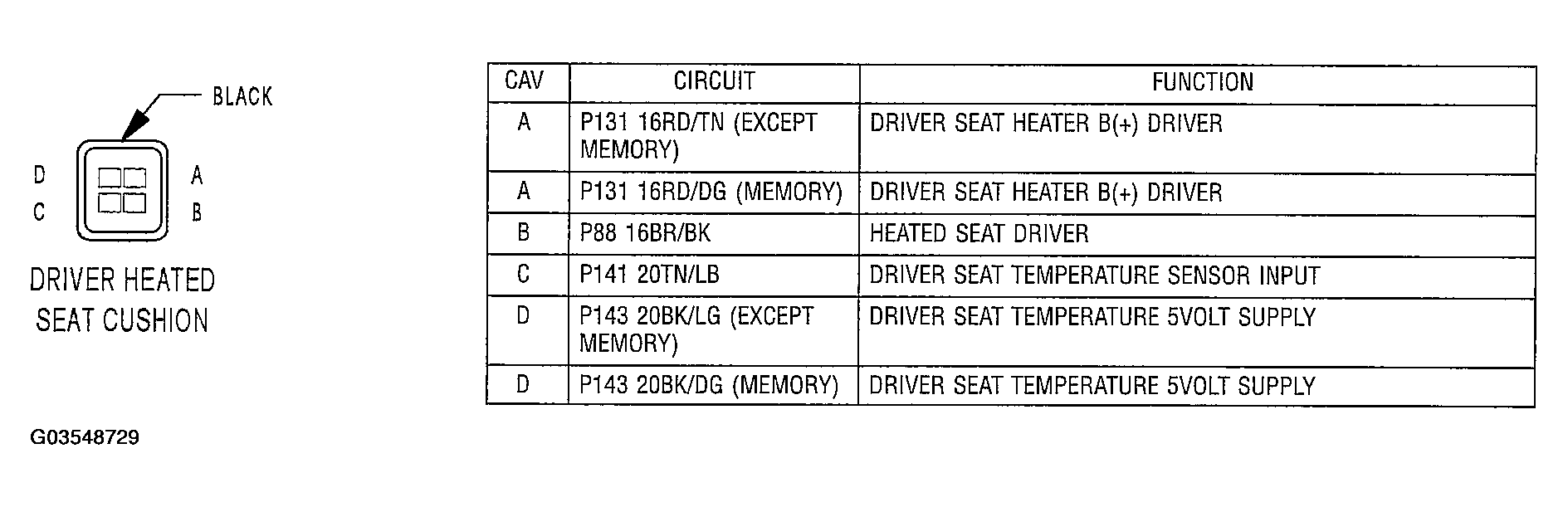

Fig 37: Identifying Driver Heated Seat Cushion - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

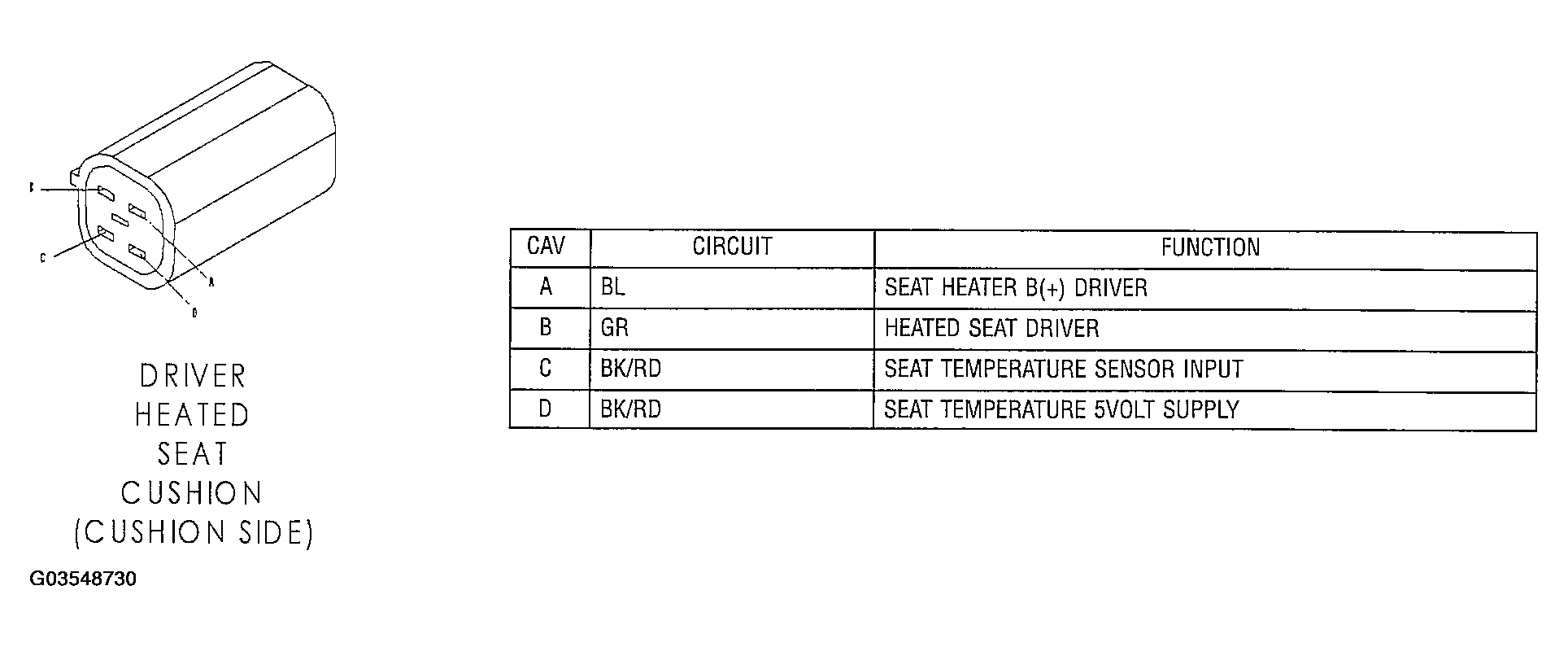

Fig 38: Identifying Driver Heated Seat Cushion (Cushion Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Identifying Driver Heated Seat Switch - 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 40: Identifying Driver Power Door Lock Switch - Natural 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 41: Identifying Driver Power Mirror (Memory) - White 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 42: Identifying Driver Power Seat Front Riser Motor - Red 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

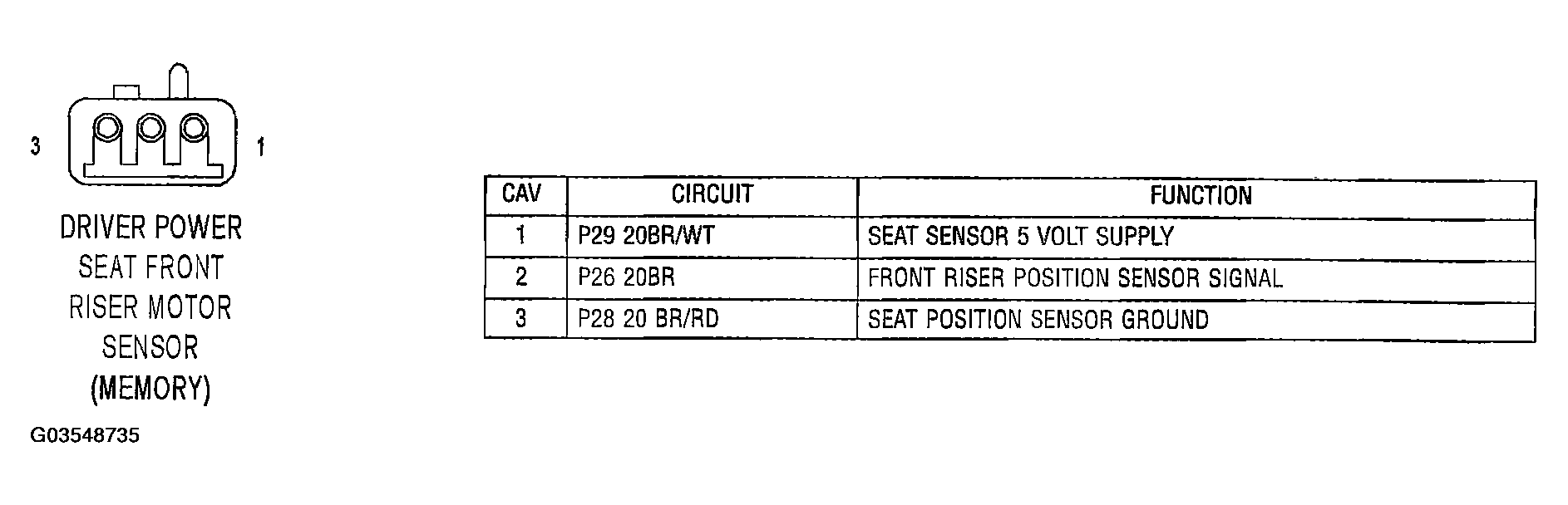

Fig 43: Identifying Driver Power Seat Front Riser Motor Sensor (Memory) - 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 44: Identifying Driver Power Seat Horizontal Motor - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

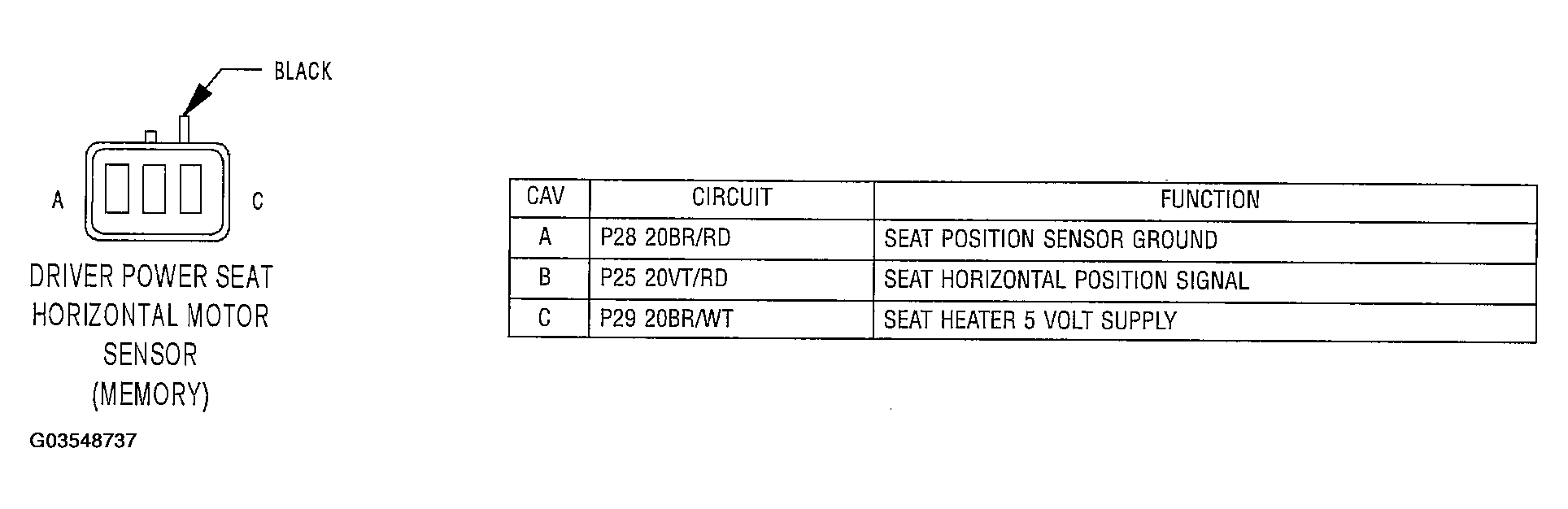

Fig 45: Identifying Driver Power Seat Horizontal Motor Sensor (Memory) - Black 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

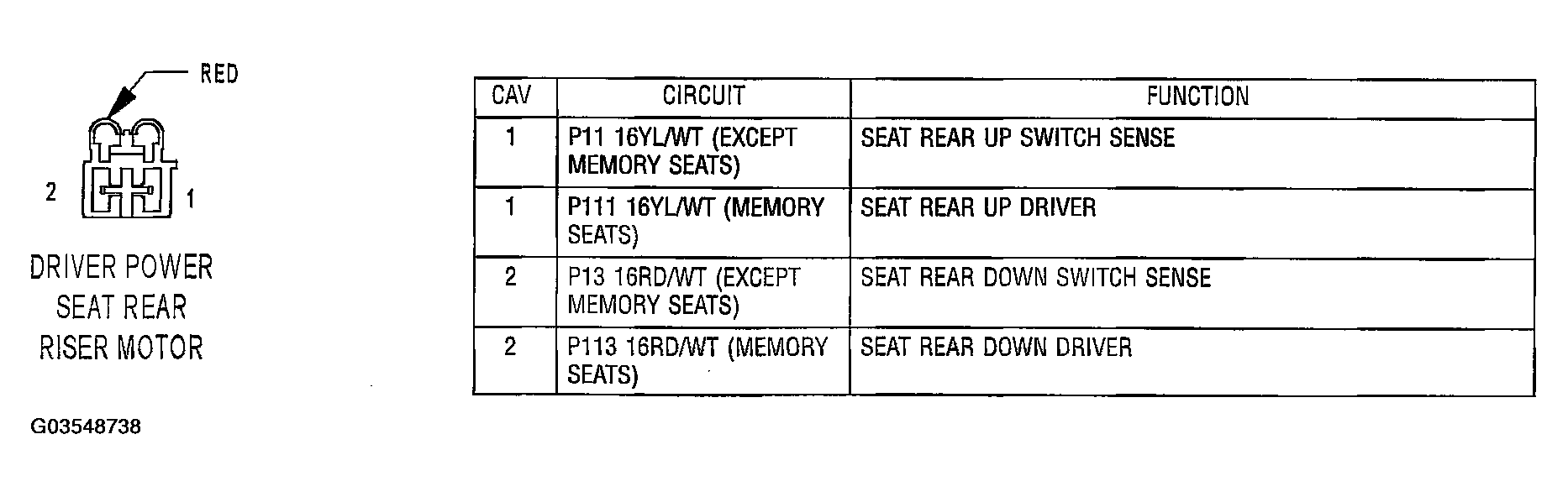

Fig 46: Identifying Driver Power Seat Rear Riser Motor - Red 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

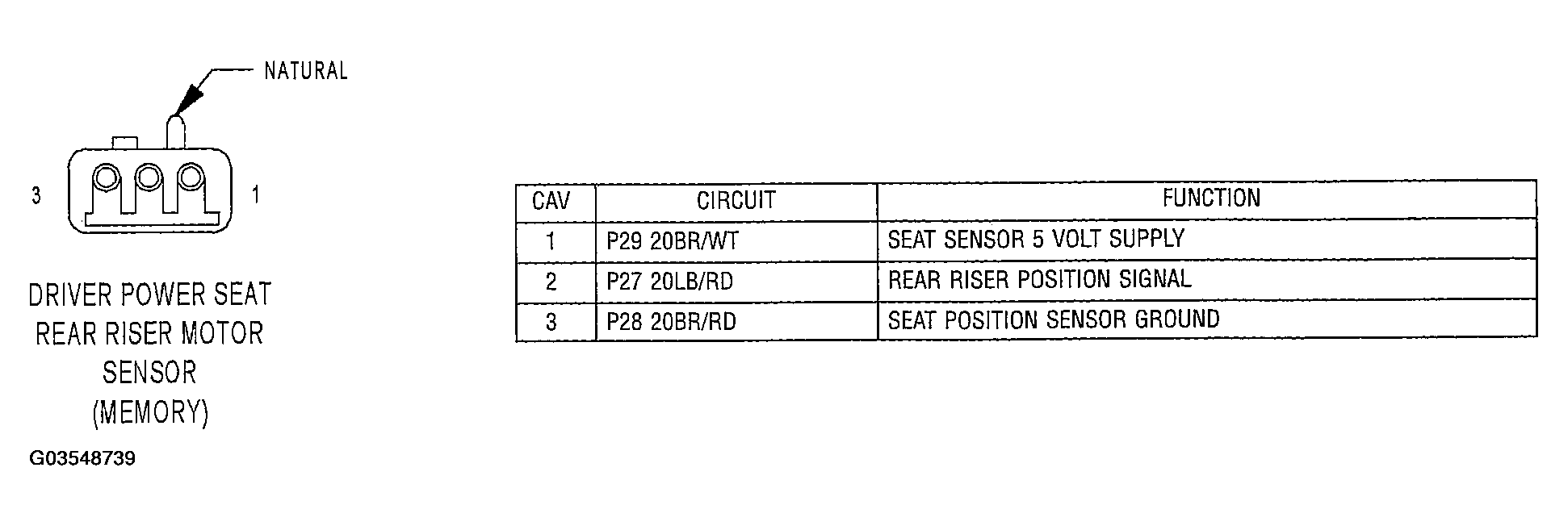

Fig 47: Identifying Driver Power Seat Rear Riser Motor Sensor (Memory) - Natural 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: Identifying Driver Power Seat Recliner Motor - Green 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

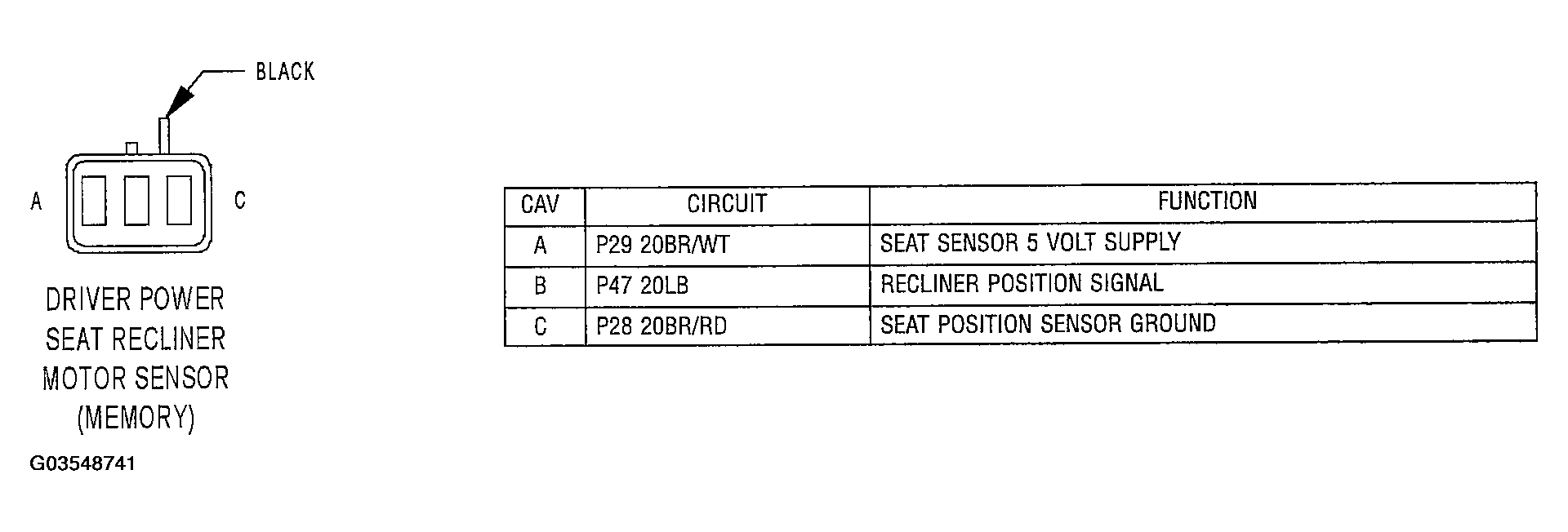

Fig 49: Identifying Driver Power Seat Recliner Motor Sensor (Memory) - Black 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 50: Identifying Driver Power Seat Switch - Blue 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 51: Identifying Engine Oil Pressure Switch - Lt. Green 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 52: Identifying Evaporator Temperature Sensor - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 53: Identifying Heated Mirror Fuse - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 54: Identifying Ignition Switch - Black 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 55: Identifying Instrument Cluster C1 - Green 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 56: Identifying Instrument Cluster C2 - Blue 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 57: Identifying Relay Compartment

Courtesy of DAIMLERCHRYSLER CORP.

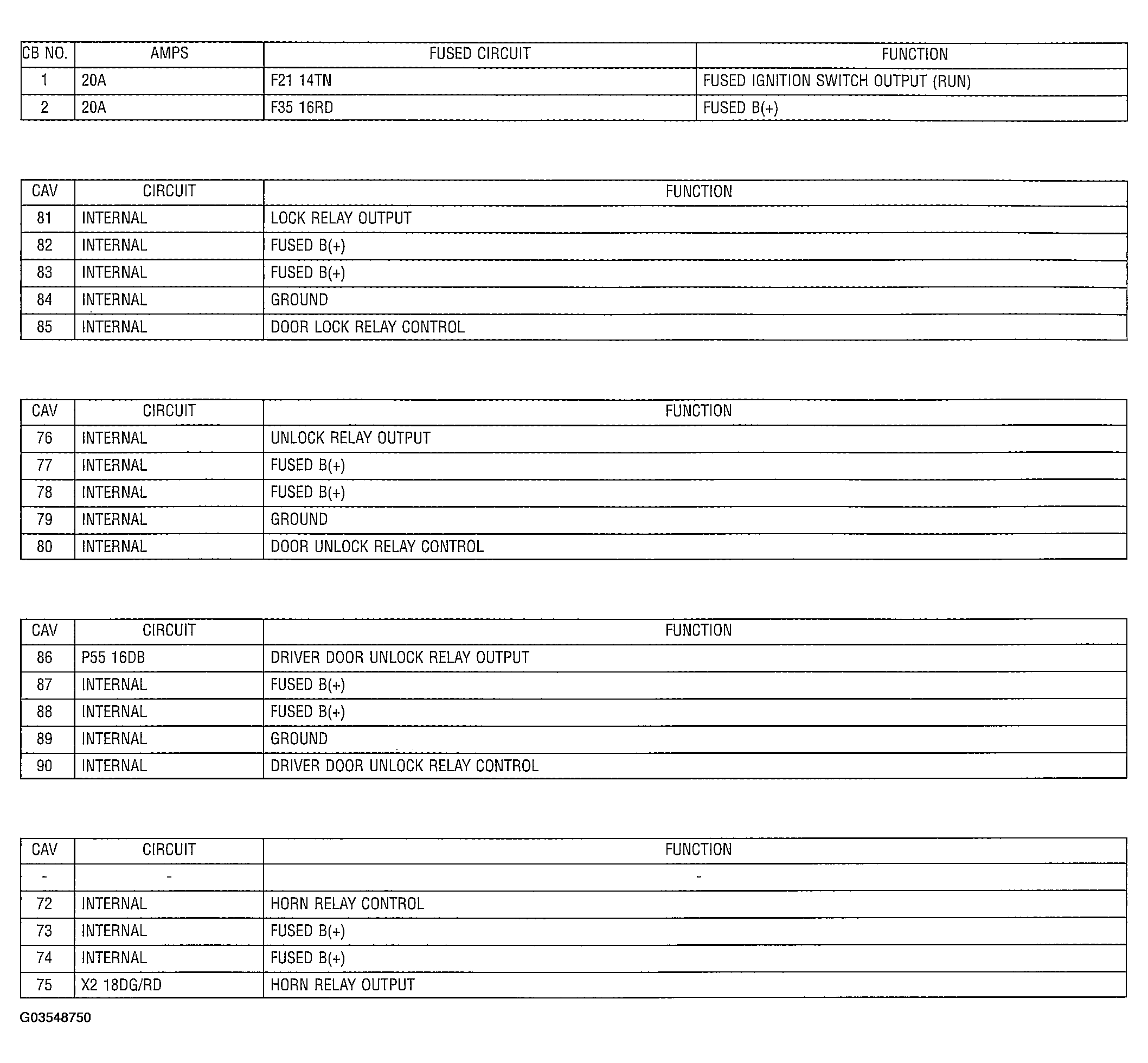

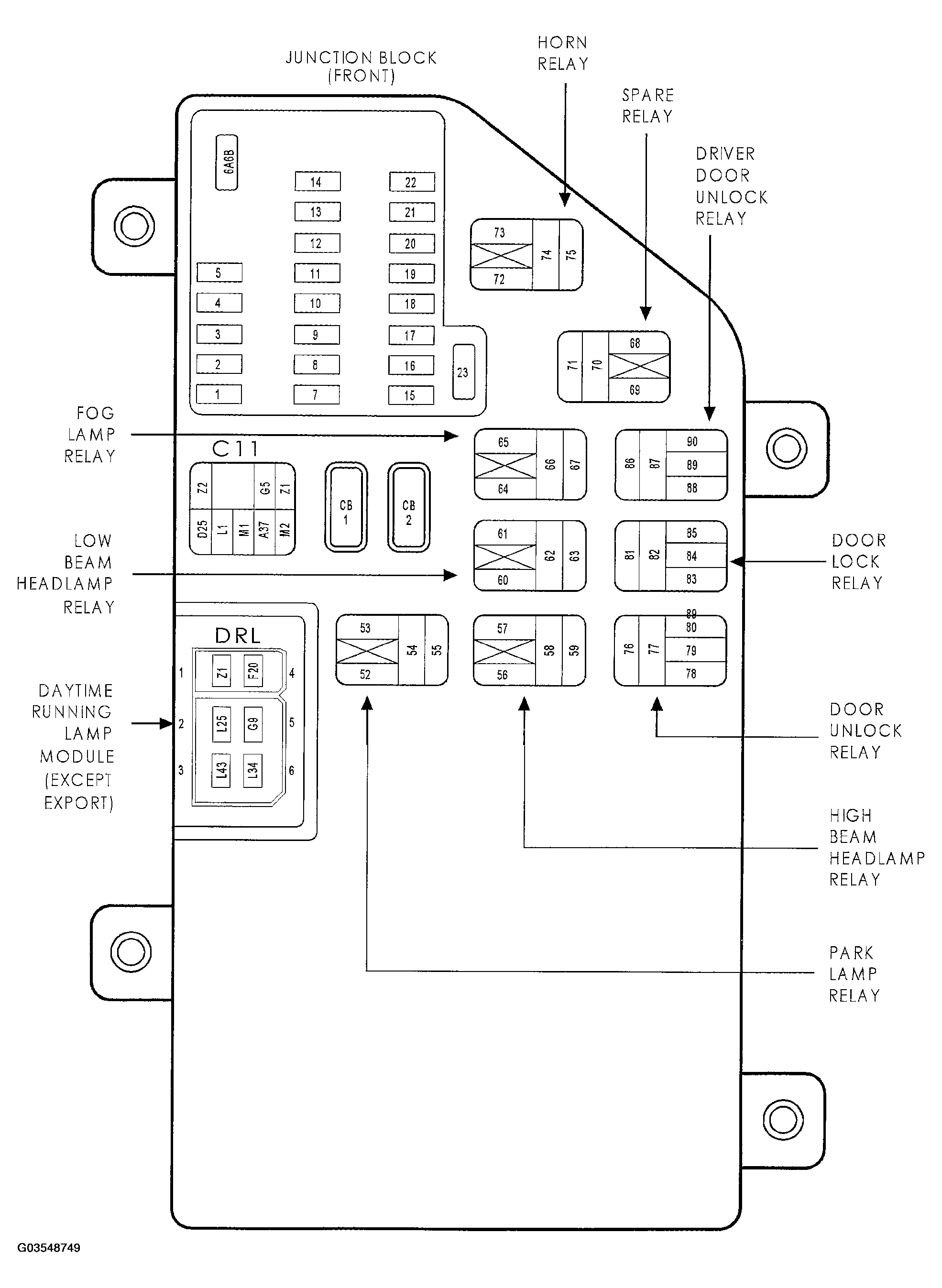

Fig 58: Identifying Circuit Breakers Door Lock Relay Door Unlock Relay Driver Door Unlock Relay Horn Relay Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 59: Identifying Junction Block Body Control Module-Jb - 20 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 60: Identifying Junction Block C2 - Gray 16 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 61: Identifying Junction Block C3 - Blue 15 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 62: Identifying Junction Block C4 - Green 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 63: Identifying Junction Block C6 - Brown 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 64: Identifying Junction Block C7 - Natural 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 65: Identifying Junction Block C9 - Orange 8 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 66: Identifying Junction Block C11 - Natural 8 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 67: Identifying Left Front Door Sail Speaker - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 68: Identifying Left Front Door Speaker - 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 69: Identifying Left Horn - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

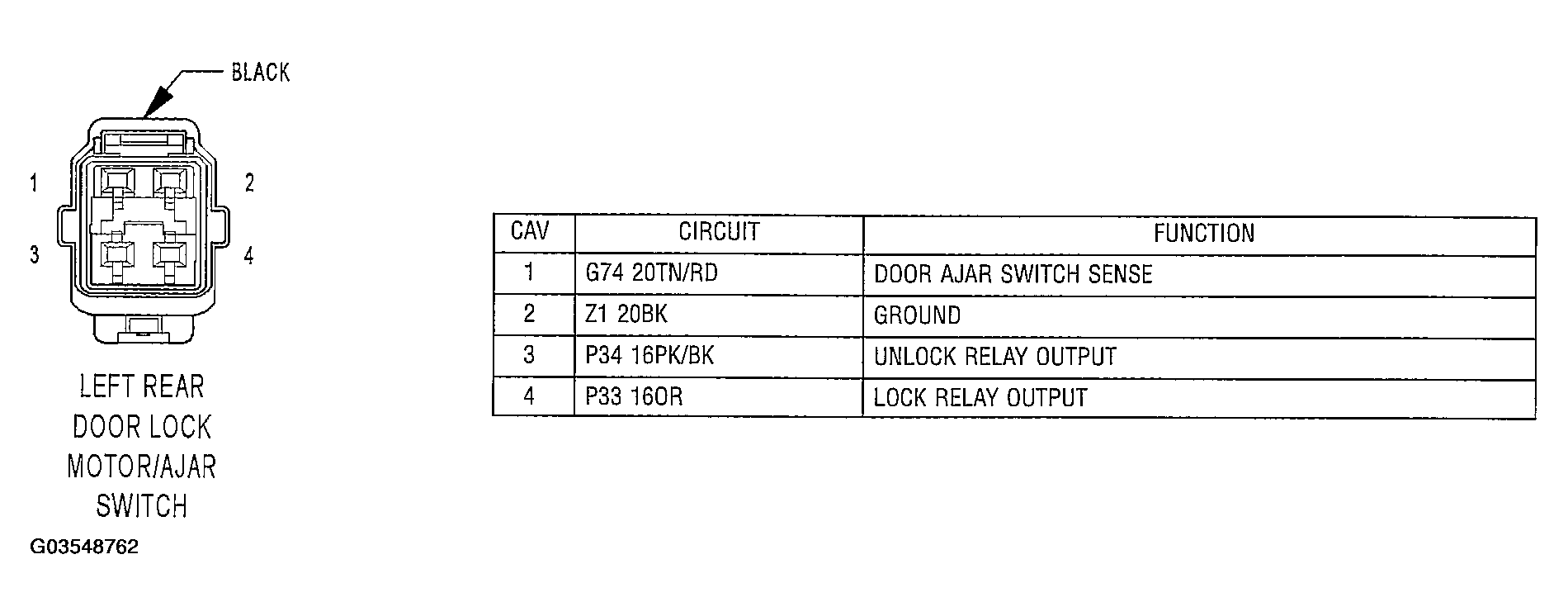

Fig 70: Identifying Left Rear Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 71: Identifying Left Rear Door Speaker (Premium) - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

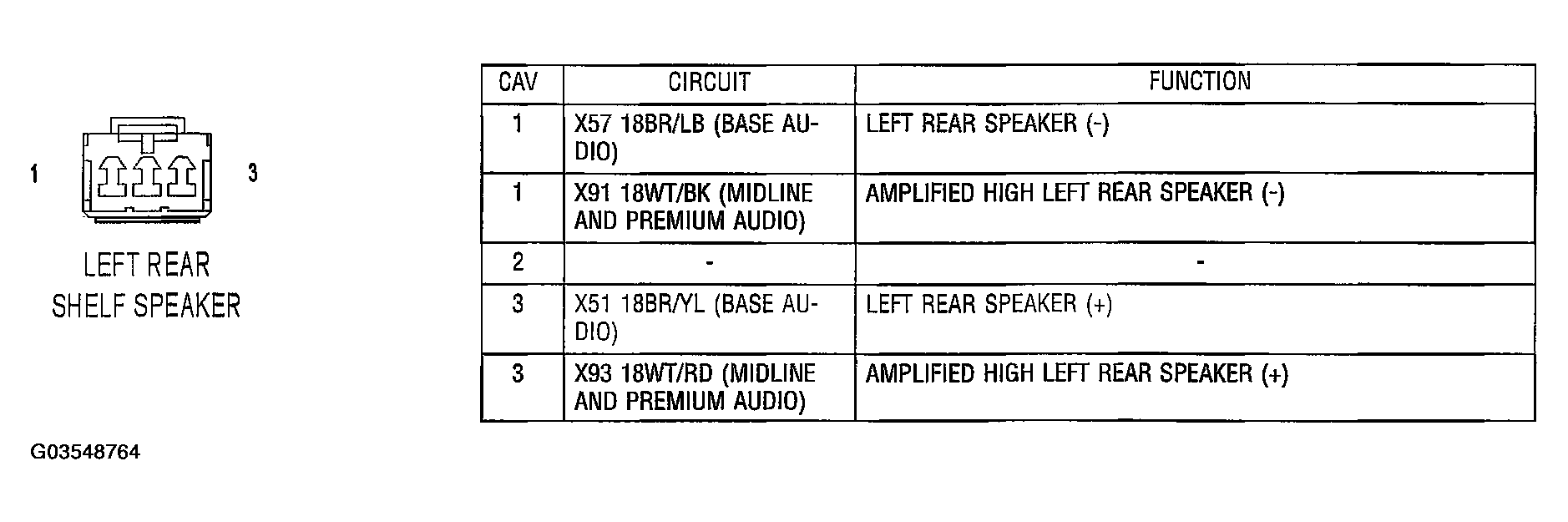

Fig 72: Identifying Left Rear Shelf Speaker - 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 73: Identifying Left Remote Radio Switch - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 74: Identifying Left Seat Airbag Squib - Yellow 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 75: Identifying Left Side Impact Airbag Control Module - Yellow 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 76: Identifying Manual Temperature Control Head C1 - Natural 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 77: Identifying Manual Temperature Control Head C2 - Black 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 78: Identifying Memory Heated Seat/Mirror Module C1 - 26 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 79: Identifying Memory Heated Seat/Mirror Module C2 - Gray 16 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 80: Identifying Memory Heated Seat/Mirror Module C3 - White 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 81: Identifying Memory Heated Seat/Mirror Module C4 - Gray 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 82: Identifying Memory Set Switch - 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 83: Identifying Mode Door Actuator - Black 5 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

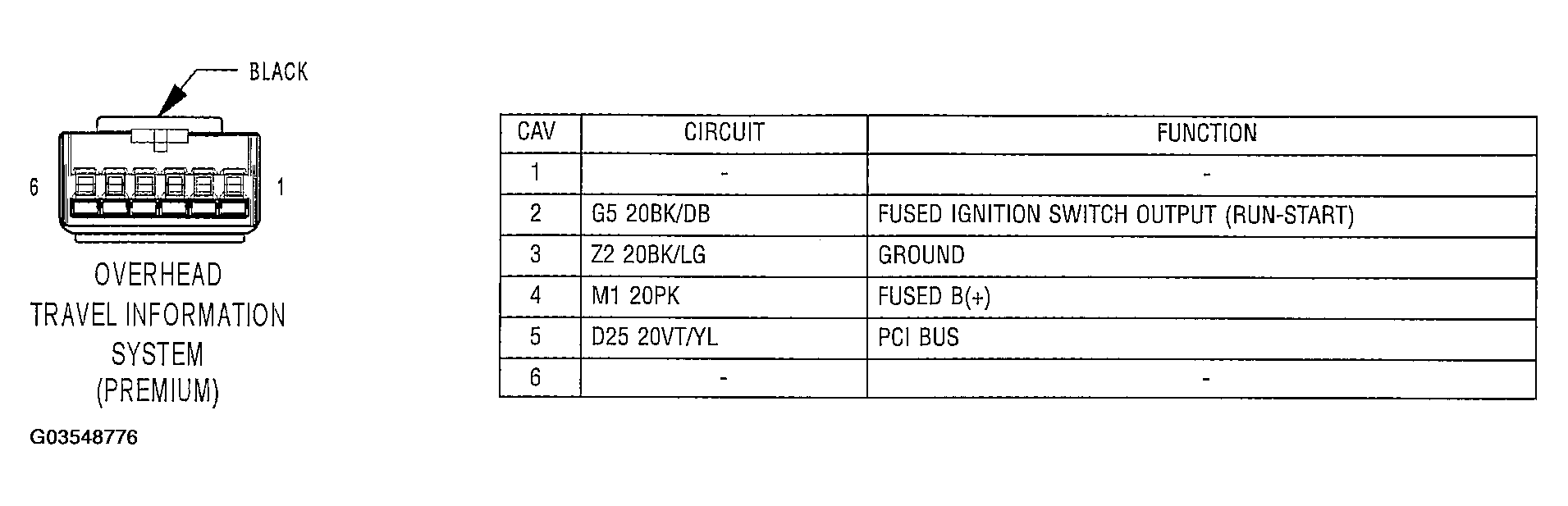

Fig 84: Identifying Overhead Travel Information System (Premium) - Black 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

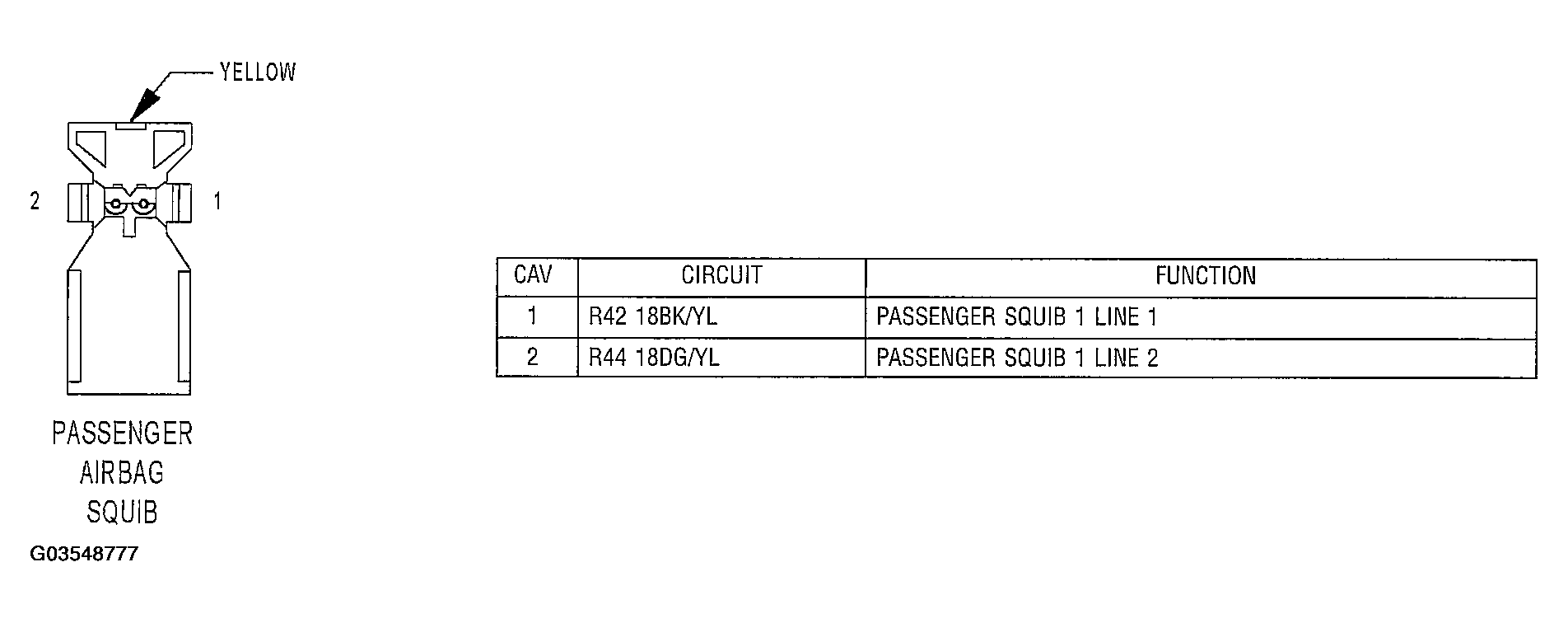

Fig 85: Identifying Passenger Airbag Squib - Yellow 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 86: Identifying Passenger Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 87: Identifying Passenger Heated Seat Back - Green 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

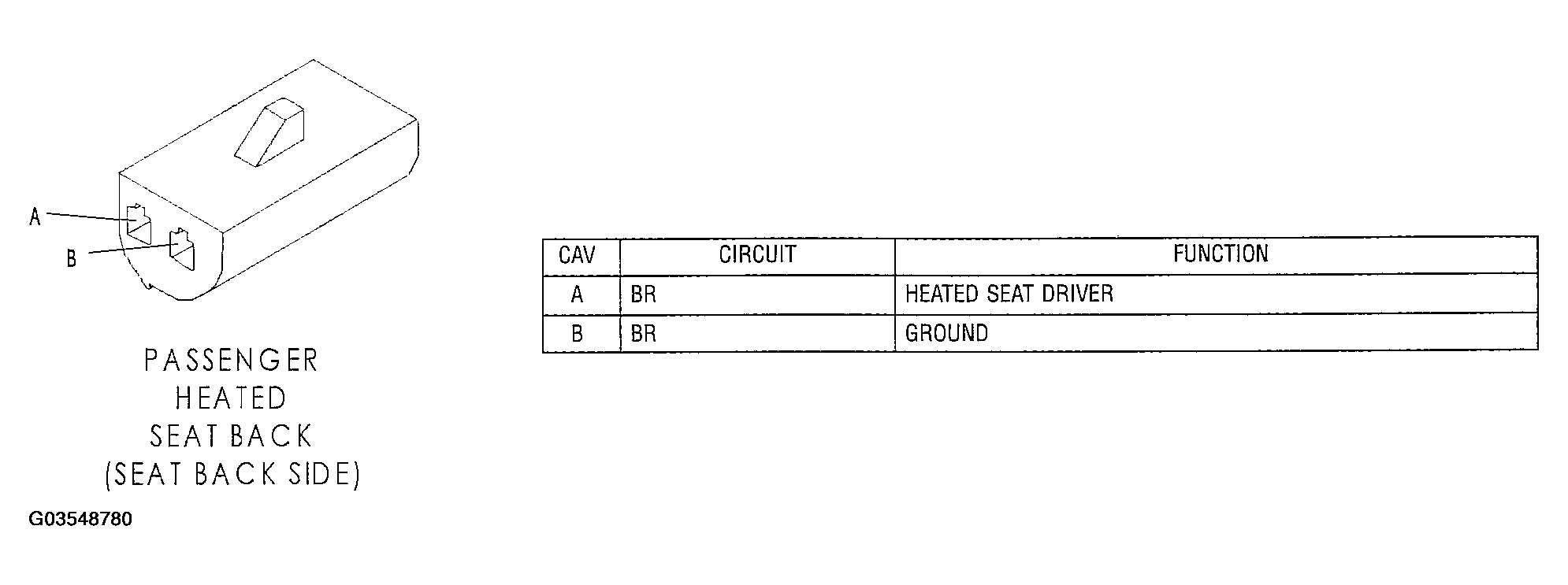

Fig 88: Identifying Passenger Heated Seat Back (Seat Back Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

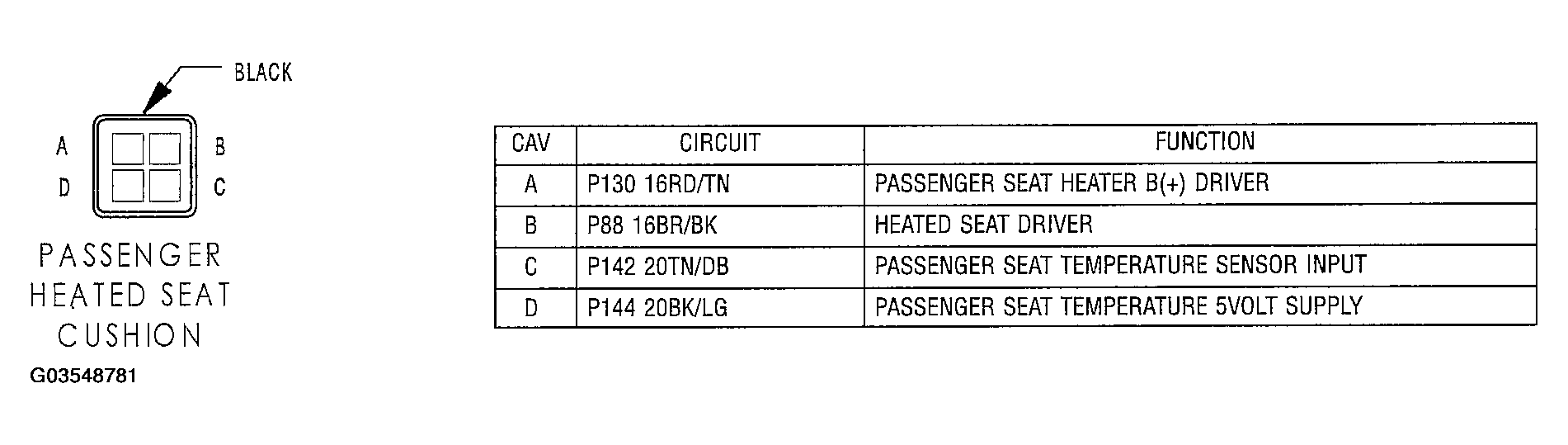

Fig 89: Identifying Passenger Heated Seat Cushion - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

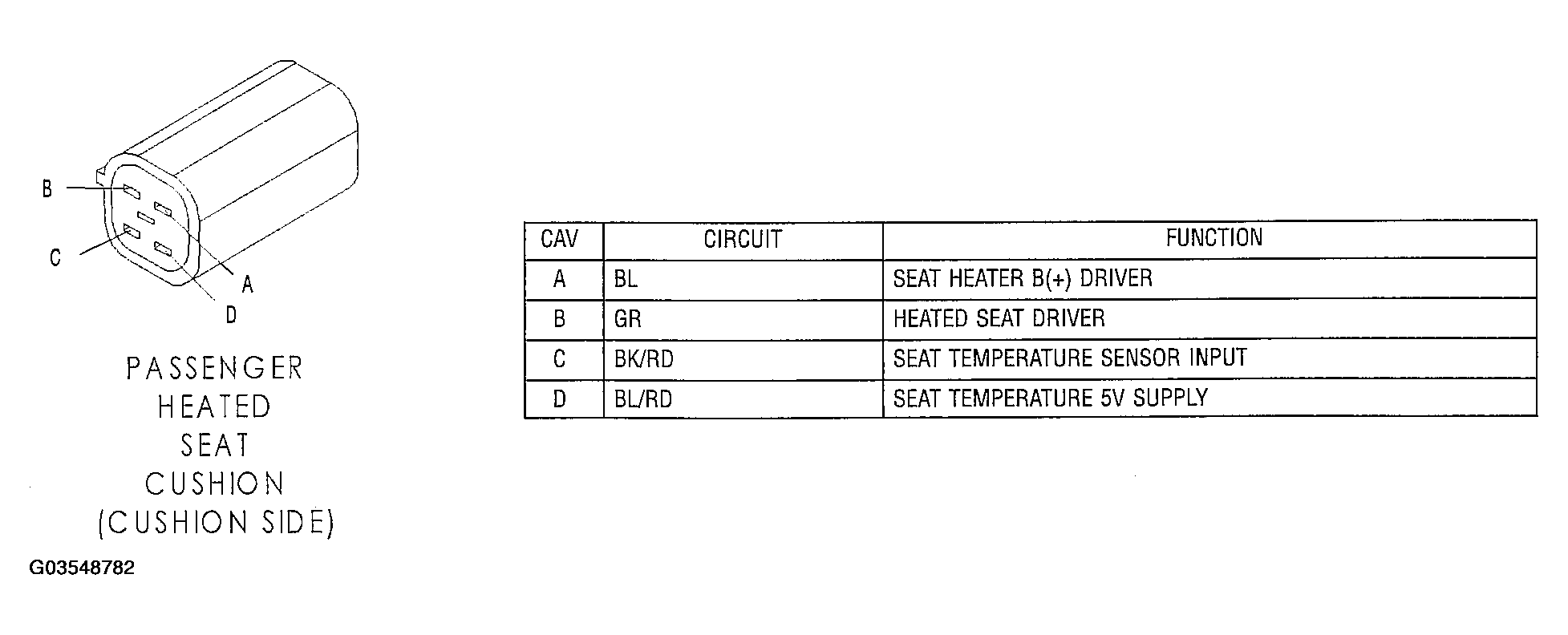

Fig 90: Identifying Passenger Heated Seat Cushion (Cushion Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

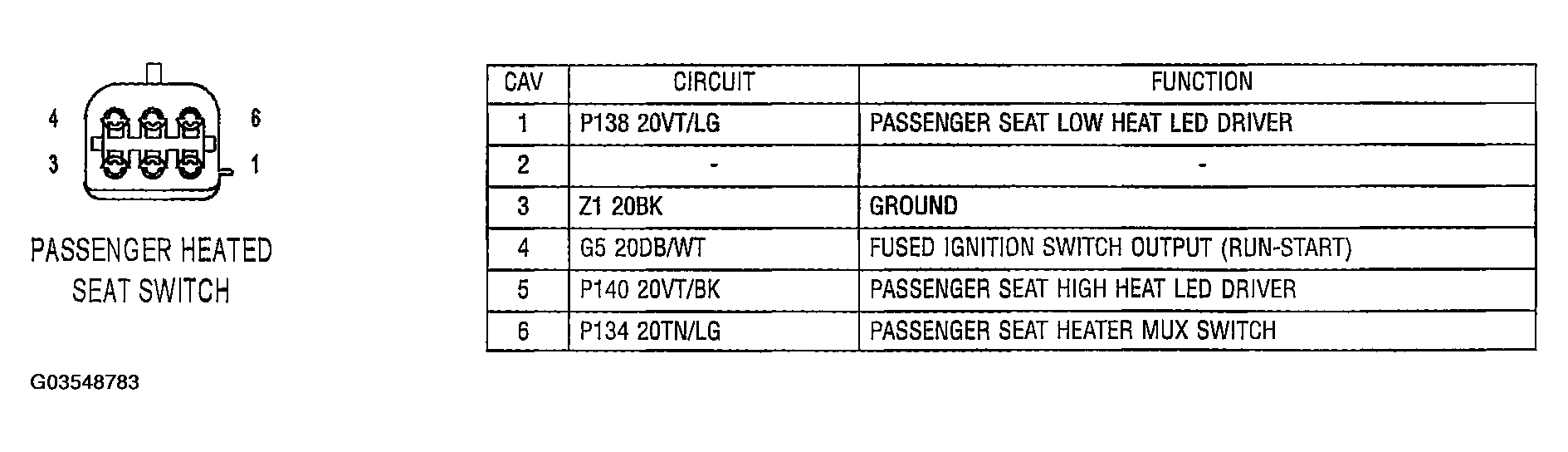

Fig 91: Identifying Passenger Heated Seat Switch - 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 92: Identifying Passenger Power Door Lock Switch - Natural 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 93: Identifying Passenger Power Mirror (Memory) - Natural 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 94: Identifying Power Amplifier C1 - White 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 95: Identifying Power Amplifier C2 - White 22 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

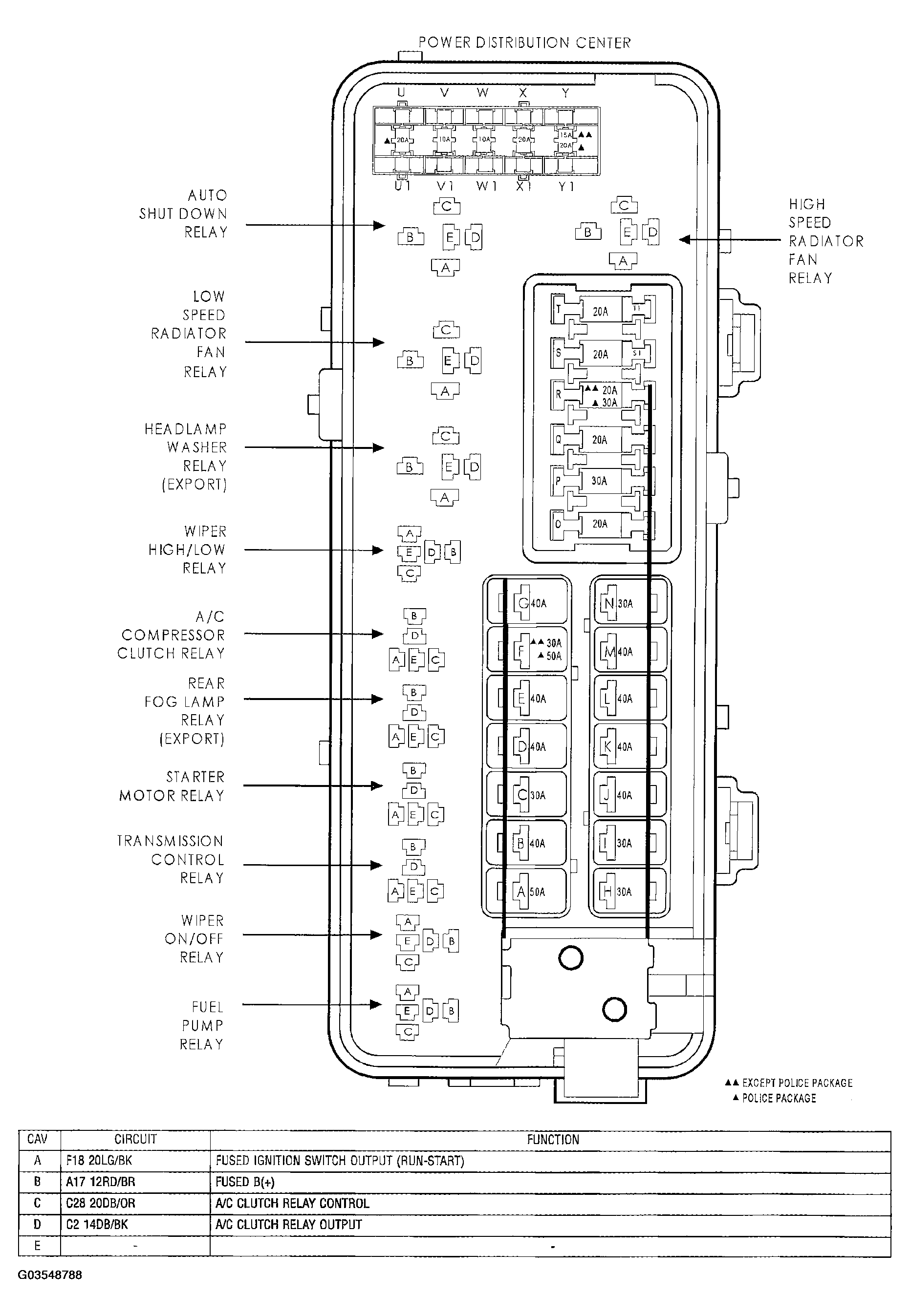

Fig 96: Identifying A/C Compressor Clutch Relay Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 97: Identifying Powertrain Control Module C1 - Black 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 98: Identifying Powertrain Control Module C2 - 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 99: Identifying Powertrain Control Module C3 - White 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 100: Identifying Powertrain Control Module C4 - Green 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 101: Identifying Radio C1 (Except Base) - White 22 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

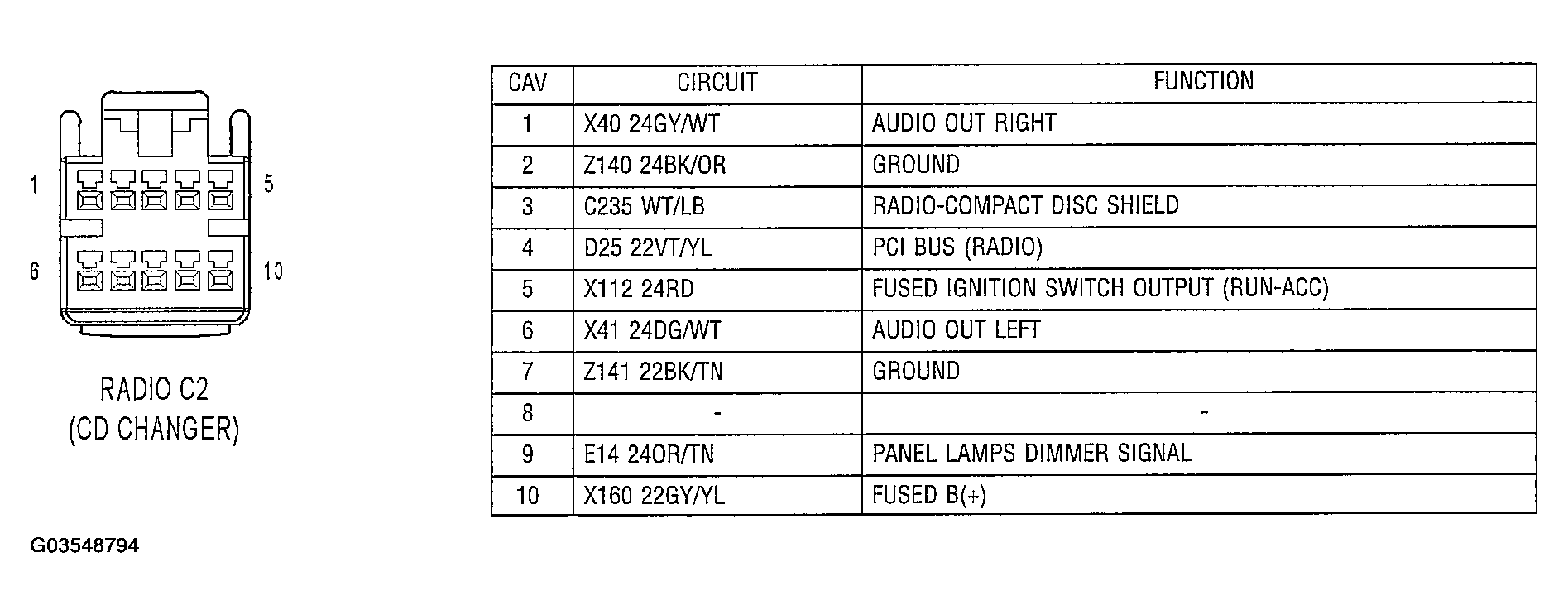

Fig 102: Identifying Radio C2 (Cd Changer) - 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

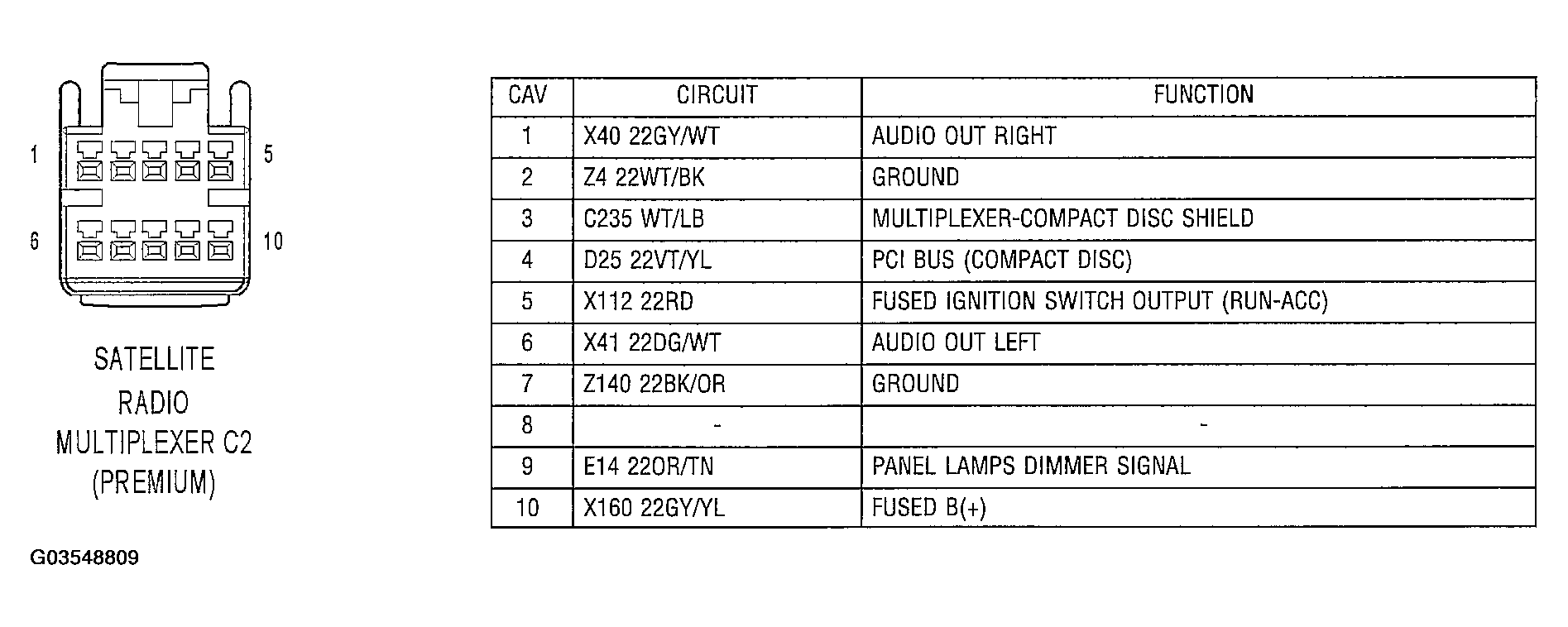

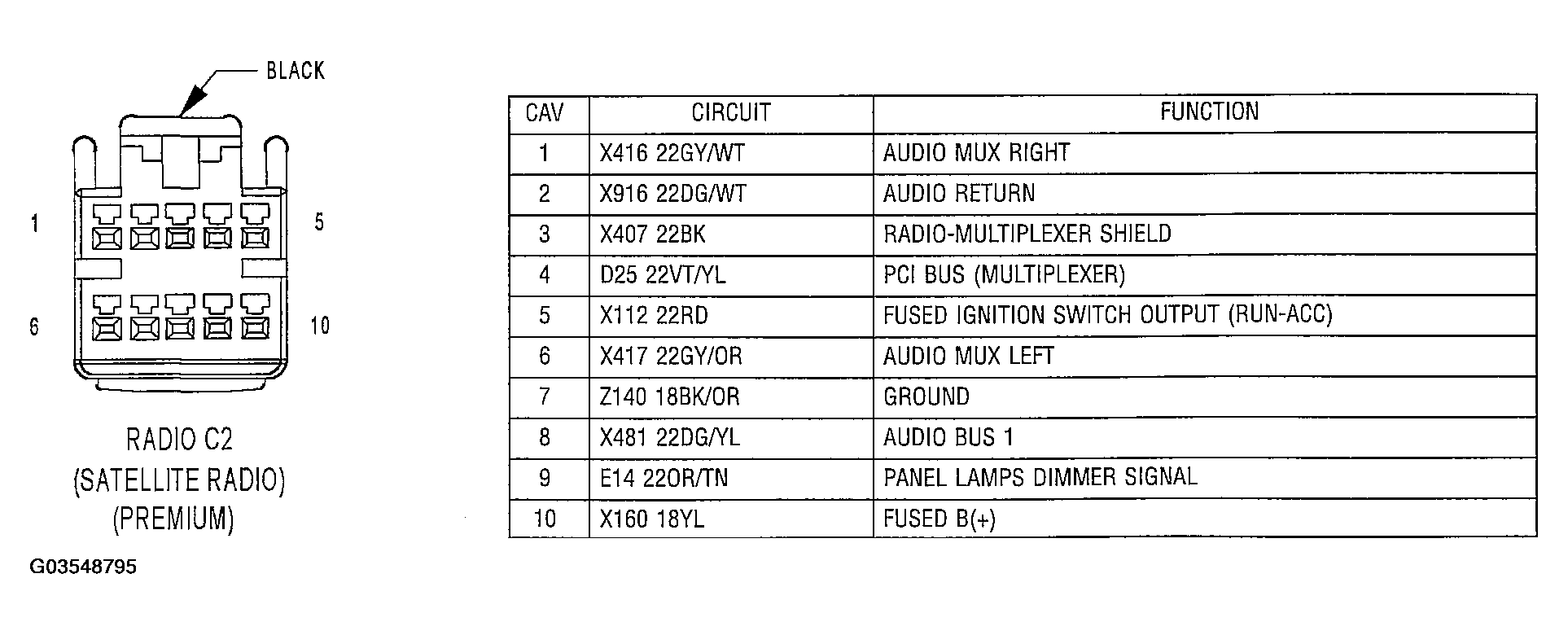

Fig 103: Identifying Radio C2 (Satellite Radio) (Premium) - Black 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 104: Identifying Rear Window Defogger Relay - Natural 9 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 105: Identifying Rear Window Defogger/Antenna Module - Black 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 106: Identifying Recirculation Door Actuator - Natural 5 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 107: Identifying Right Front Door Sail Speaker - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 108: Identifying Right Front Door Speaker - 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 109: Identifying Right Horn - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

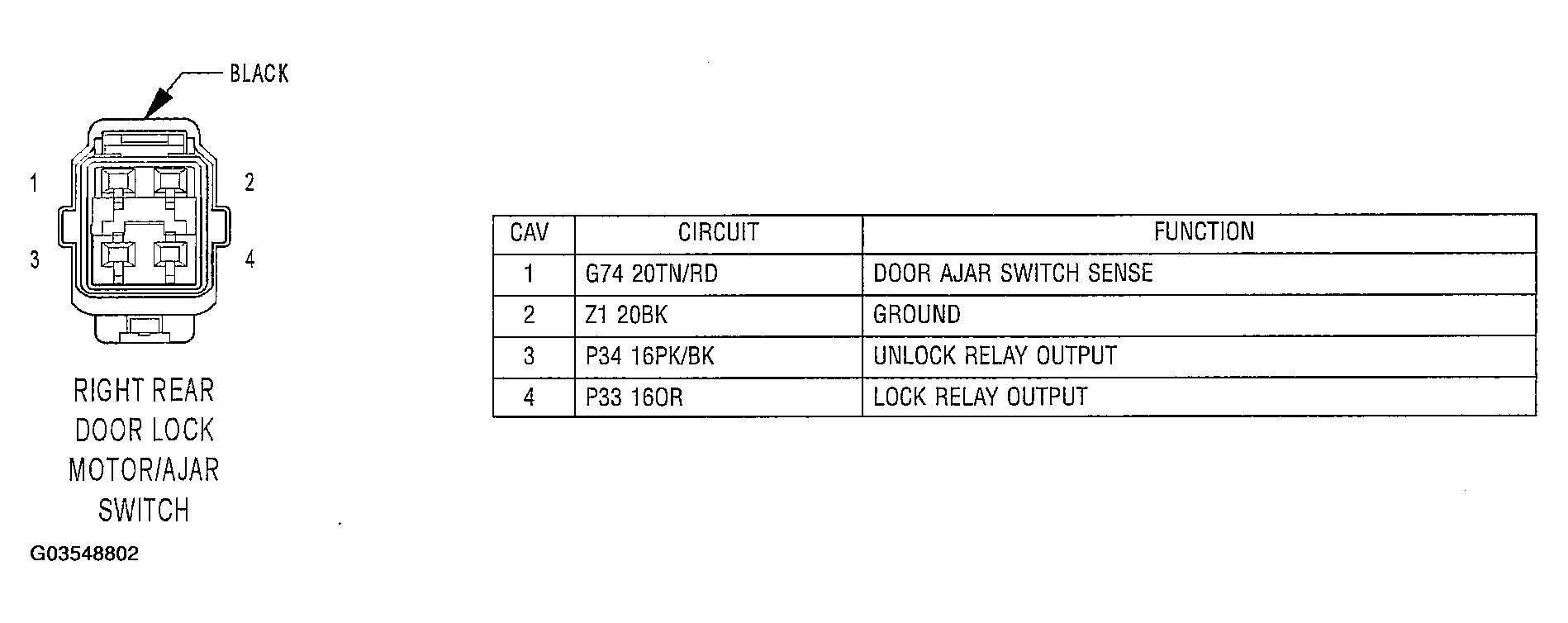

Fig 110: Identifying Right Rear Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 111: Identifying Right Rear Door Speaker - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

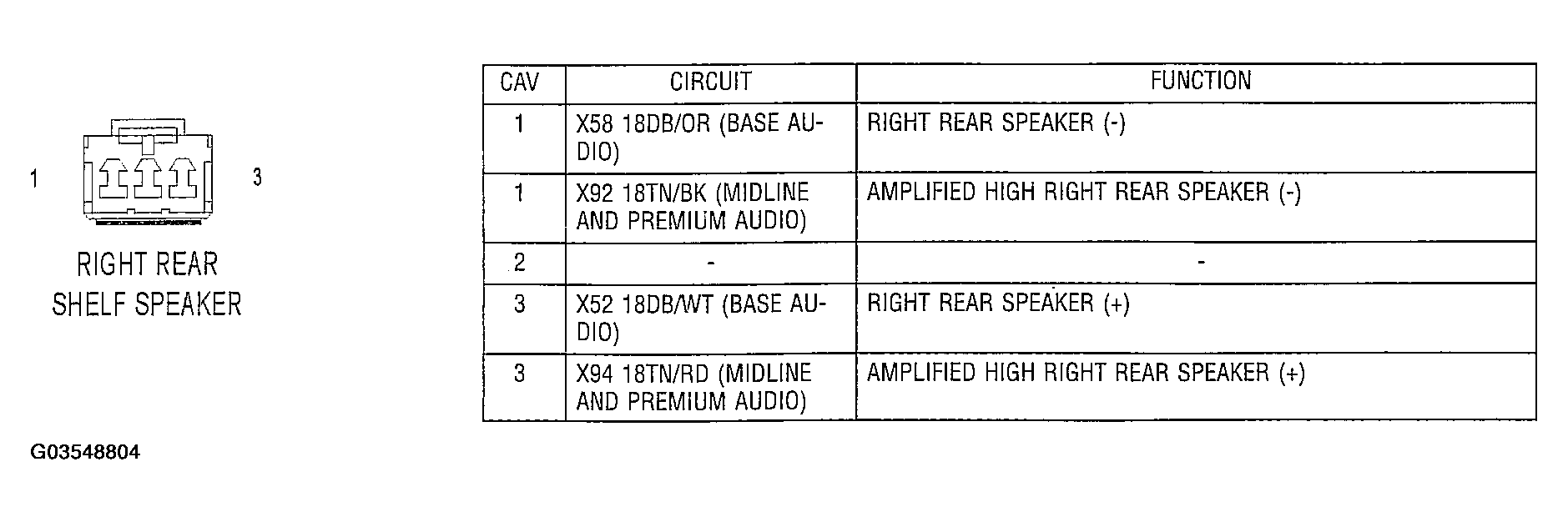

Fig 112: Identifying Right Rear Shelf Speaker - 3 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 113: Identifying Right Remote Radio Switch - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 114: Identifying Right Seat Airbag Squib - Yellow 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 115: Identifying Right Side Impact Airbag Control Module - Yellow 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

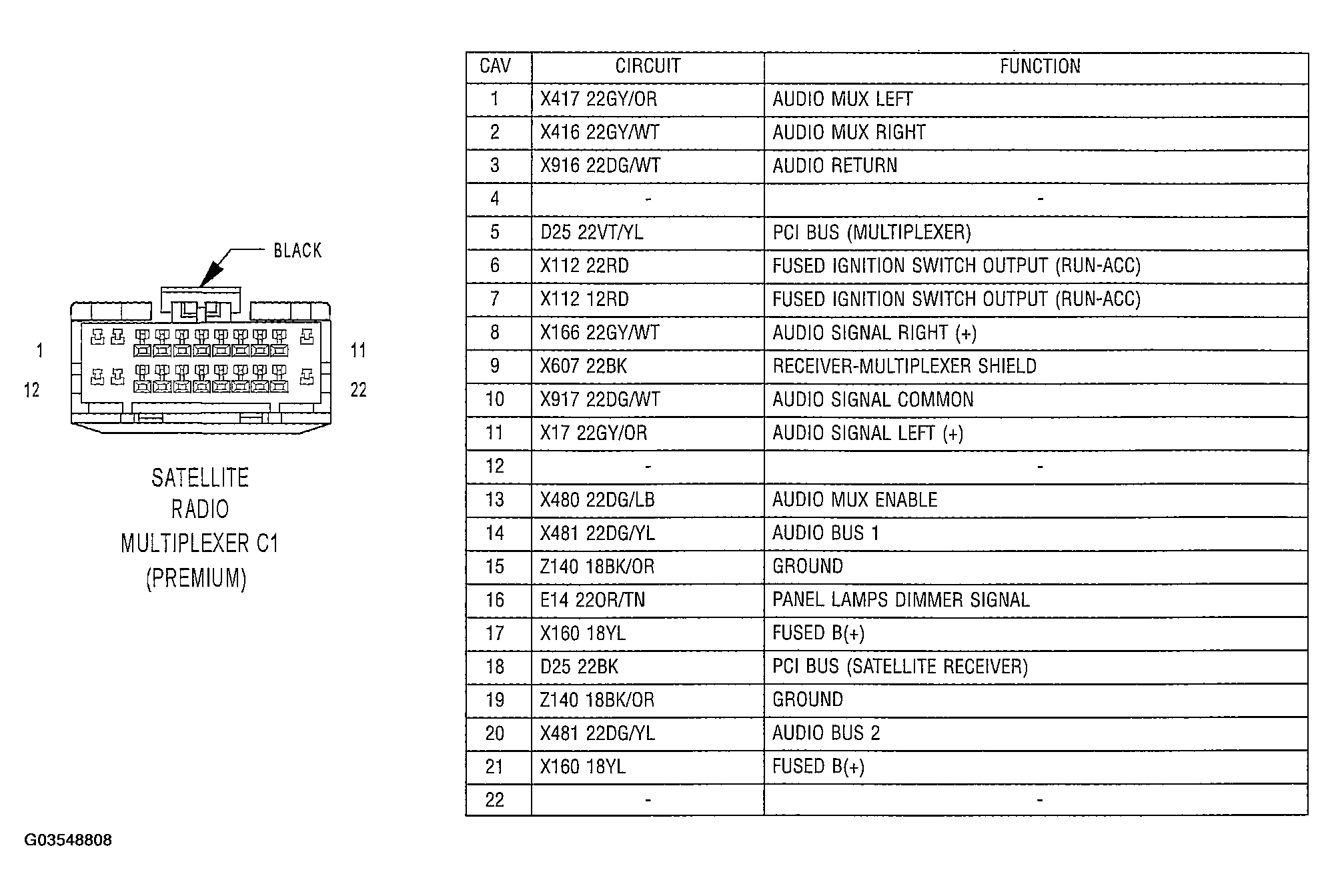

Fig 116: Identifying Satellite Radio Multiplexer C1 (Premium) - Black 22 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 117: Identifying Satellite Radio Multiplexer C2 (Premium) - 10 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 118: Identifying Satellite Receiver Module C1 (Premium) - Black 12 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 119: Identifying Seat Belt Switch - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 120: Identifying Sentry Key Immobilizer Module - Black 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 121: Identifying Sun Sensor/VTSS LED - Black 4 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 122: Identifying Trunk Knock Out Switch - Natural 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 123: Identifying Washer Fluid Level Sensor - Gray 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.
