Washer Nozzle Spray Pattern
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
During adjustment, be careful not to damage inside opening of jet.

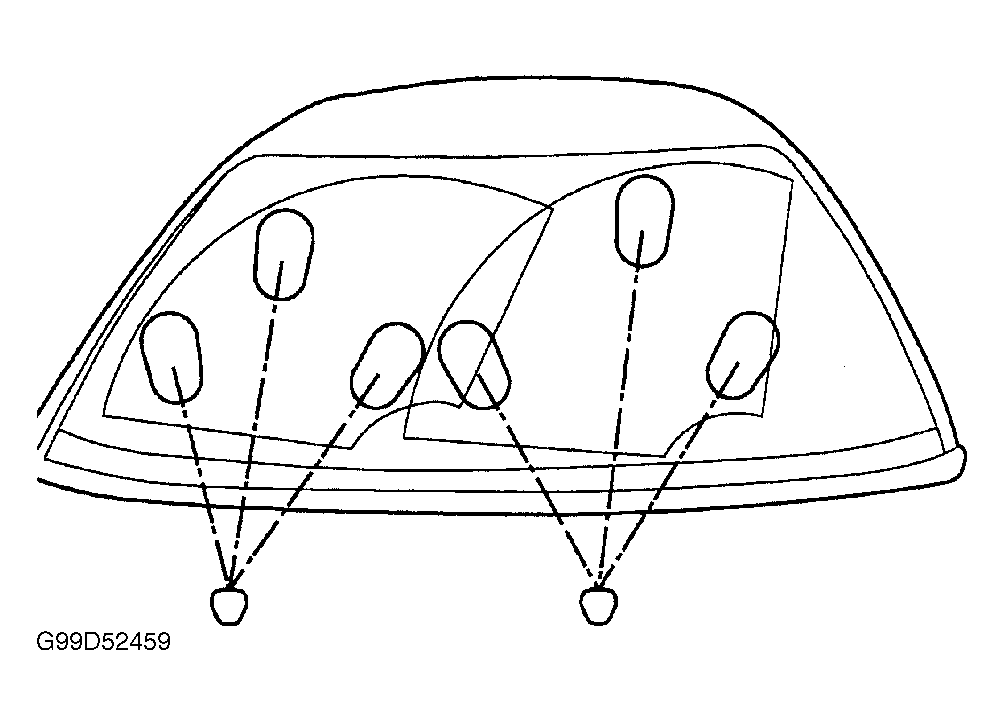

Vehicle is equipped with 2 windshield washer spray nozzles, each with 3 adjustable spray jets. See Fig 1
. To adjust jets to proper locations, use safety pin (or similarly sized pin) and adjust to pattern shown. See Fig 2
.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
