Solenoid Assembly: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

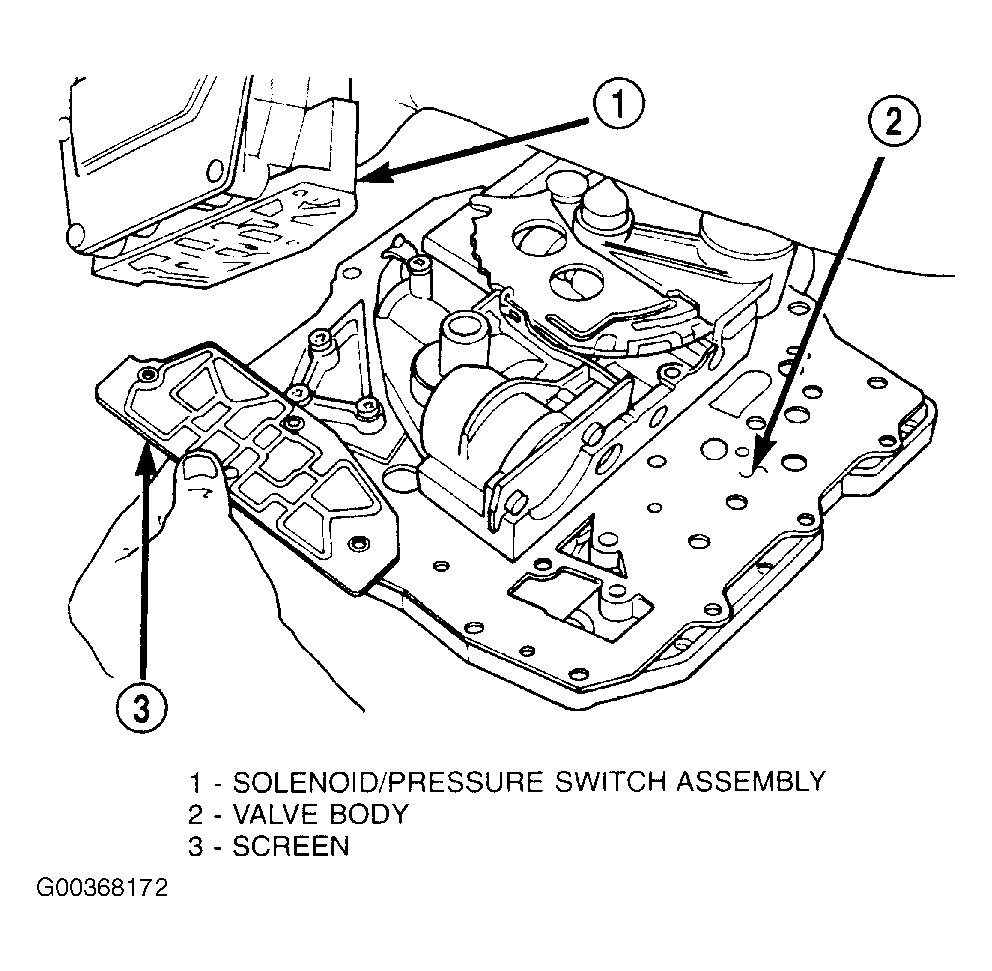

  1. Install Solenoid/Pressure Switch Assembly and screen to the separator and transfer plates. See Figure .

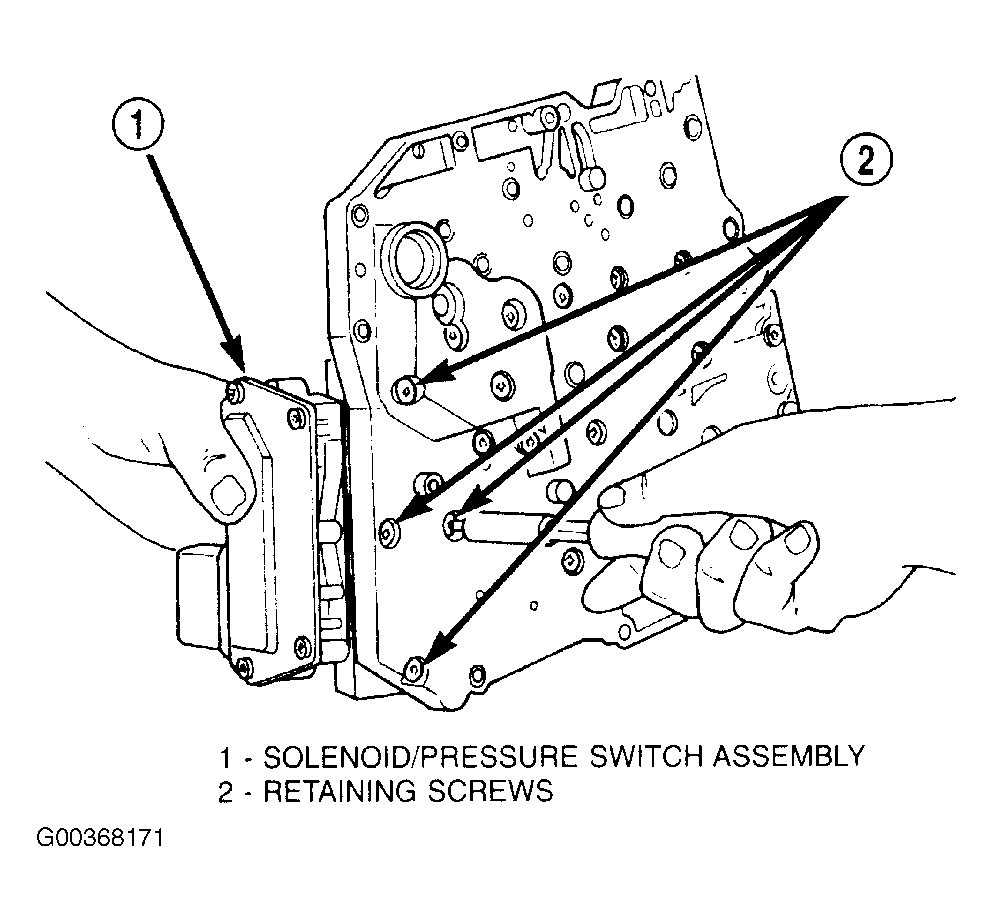

  2. Install and tighten retaining screws to 35 INCH Lbs. (6 N.m). See Figure .
  3. Install valve body. See VALVE BODY  .
