Radiator DRAINCOCK: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DO NOT REMOVE THE CYLINDER BLOCK PLUG OR THE RADIATOR DRAINCOCK WITH THE SYSTEM HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.

CAUTION: Use of pliers on draincock is not recommended. Damage may occur to part. Draincock should not be removed unless leakage is observed.

Drain the cooling system (Refer to STANDARD PROCEDURE ).
Turn the draincock stem counterclockwise 180 degrees to the 9:00 o'clock position.
With the stem at the 9:00 o'clock position, pull the draincock assembly from the radiator tank (Fig 1).

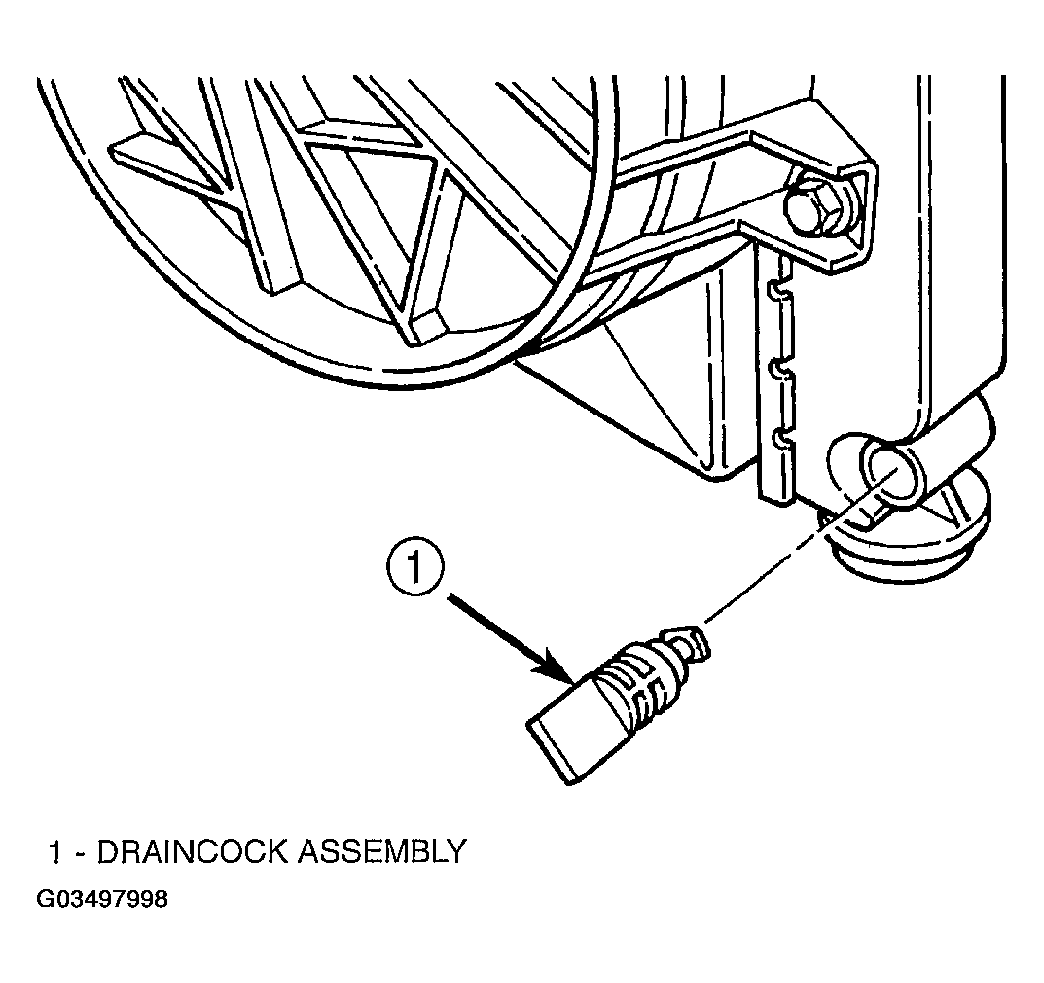

Fig 1: Draincock
Courtesy of DAIMLERCHRYSLER CORP.
