Section 88 (Antenna System): Radio: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel center trim bezel. (Refer to INSTRUMENT PANEL CENTER BEZEL ).
  3. Remove four radio mounting screws.
  4. Pull radio from panel and disconnect wiring from radio.
    CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
  5. Disconnect the antenna cable by pulling the locking antenna connector away from the radio (Fig 1).

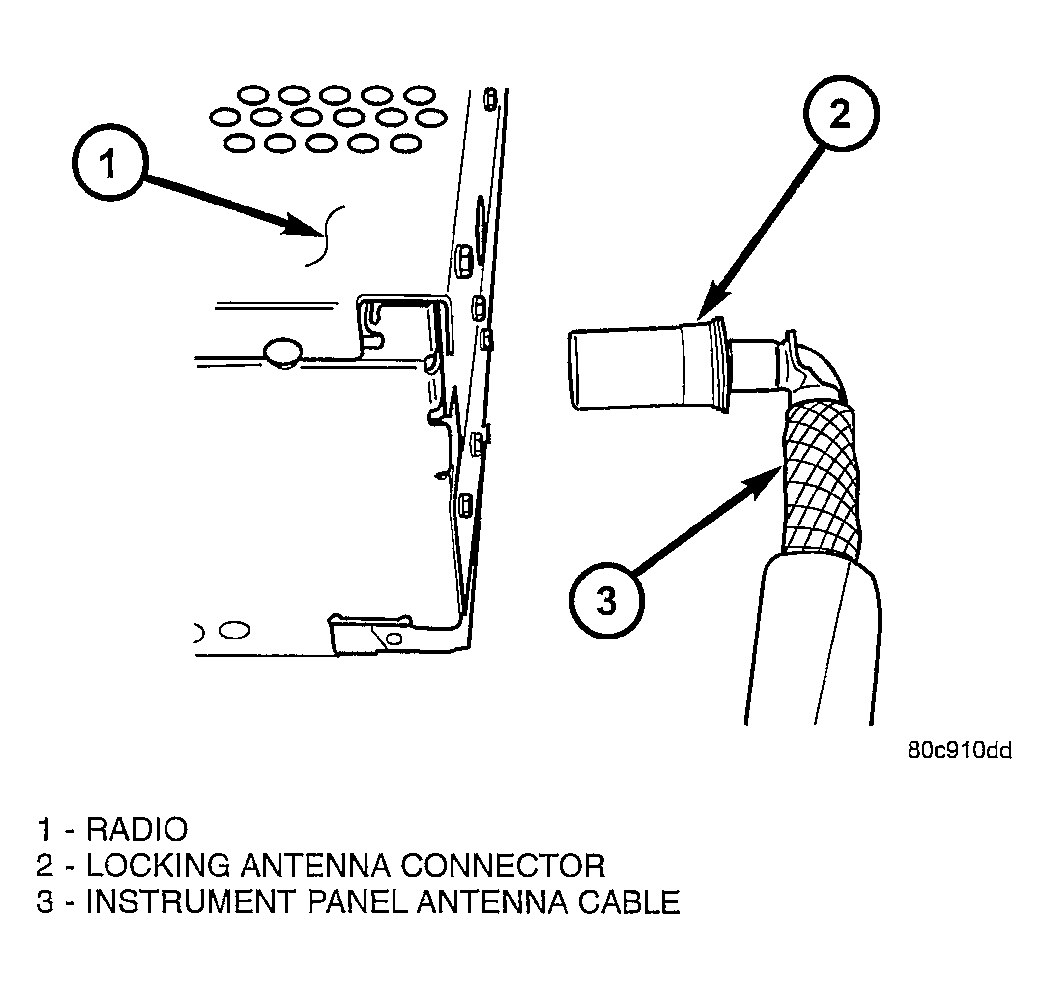

    Fig 1: Connecting Wiring And Antenna Lead To Radio
    G04184433Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove radio from vehicle.
