Brake Lamp Switch: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to installing the brake lamp switch into it's bracket, the plunger must be moved to its fully extended position using the procedure in Step 1.
- Hold the brake lamp switch firmly in one hand. Using your other hand, pull outward on the plunger of the switch until it has ratcheted out to its fully extended position.
- Connect the wiring harness connector to the brake lamp switch.

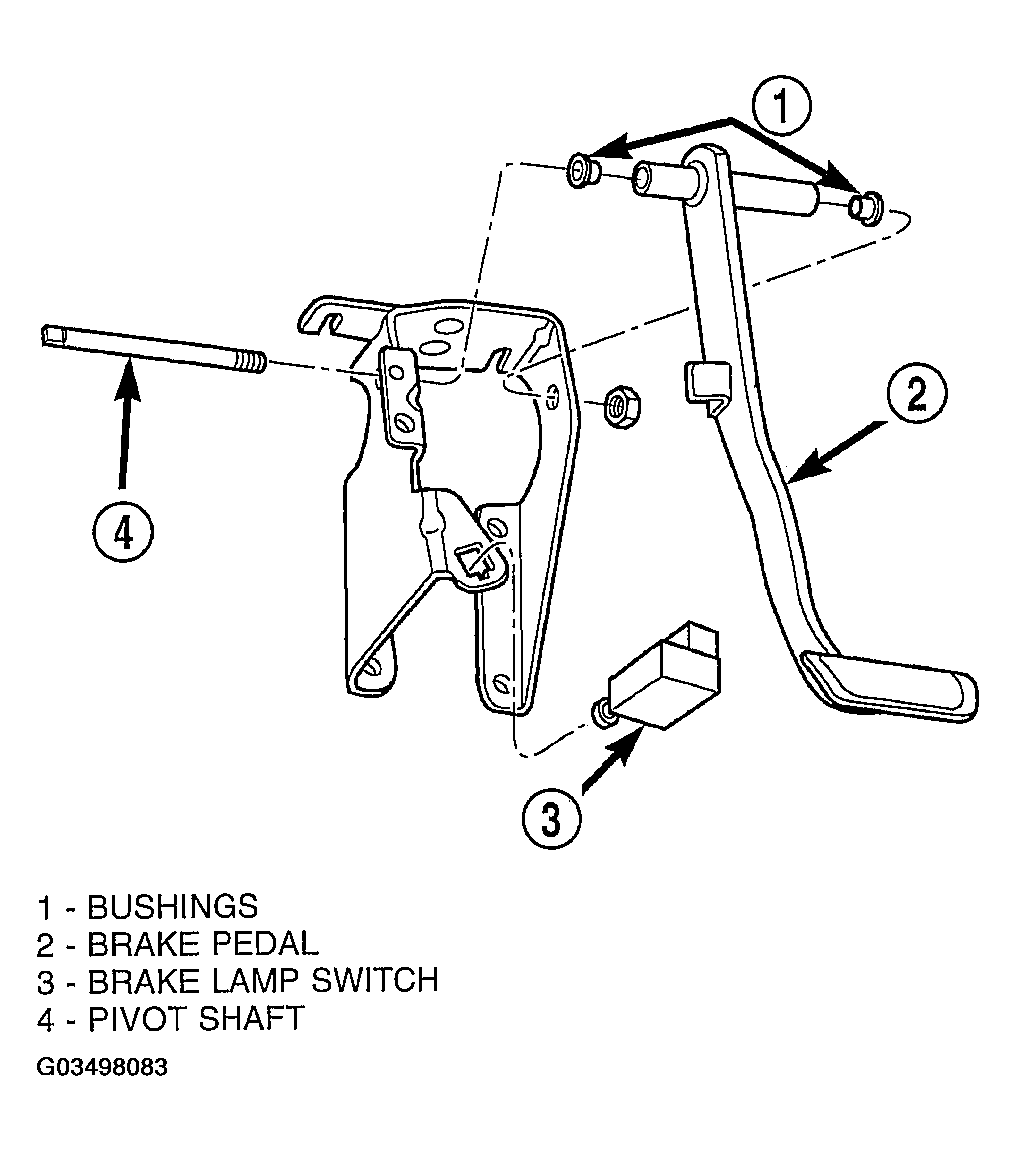

- Mount the brake lamp switch into the bracket as follows: Depress the brake pedal as far down as possible. Install the switch in it's bracket by aligning the index key on switch with the notch in the square mounting hole of the mounting bracket (Figure). Once the switch is fully seated, rotate the switch clockwise approximately 30° to lock the switch into the bracket.CAUTION: Do not use excessive force when pulling back on the brake pedal to adjust the brake lamp switch. If to much force is used, damage to the brake lamp switch or striker can result.
- Gently pull back on brake pedal until the pedal stops moving. This will cause the switch plunger to ratchet backward to the correct position.
- Check for proper operation of the brake lamps and speed control.
