Section 95 (Lighting Systems - Exterior): Headlamp: Installation: Intrepid
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
- Rotate bulb (High beam or Low beam) and push into headlamp unit.

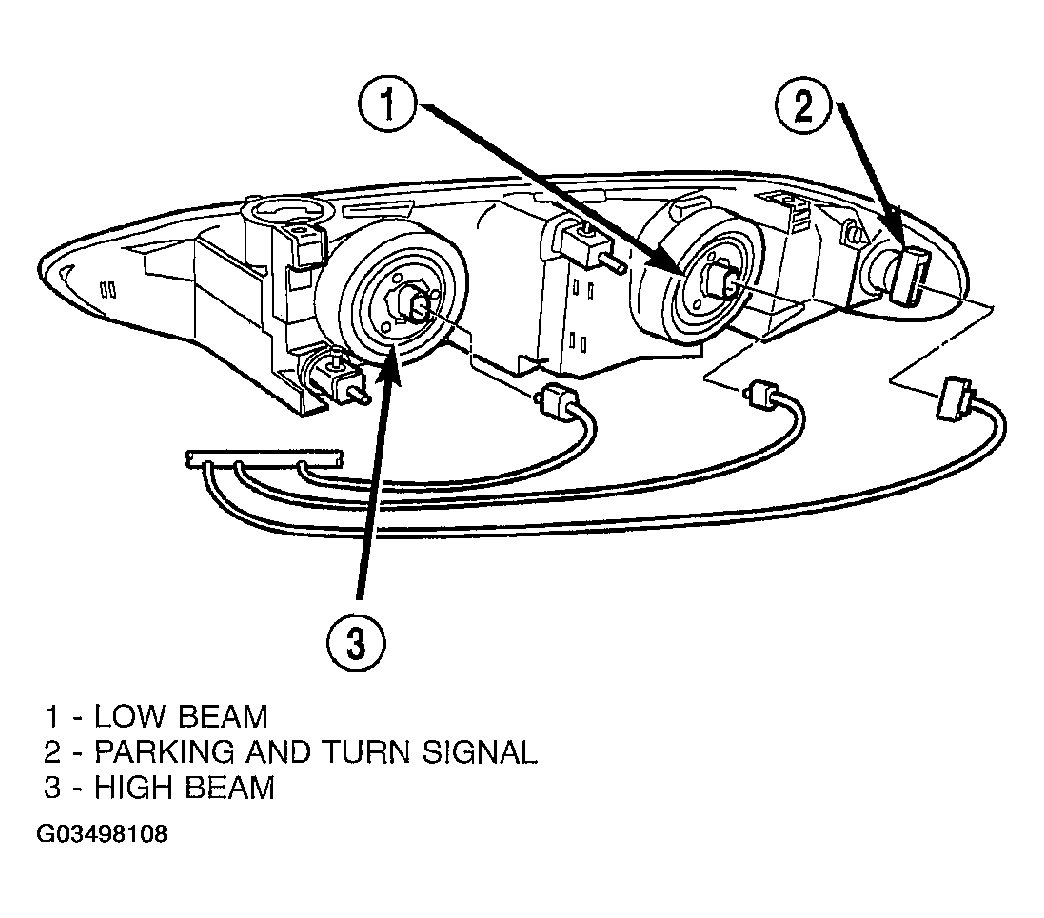

- Connect wire connector to the back of lamp socket (Figure).
- Install the jackscrews attaching headlamp unit to crossmember.
- Connect the battery negative cable.
- Close the hood.
