Washer Pump Motor - Intrepid: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When replacing the pump, make sure to use a new grommet for proper sealing and to avoid leaks.
- Install the new pump grommet (Figure ).
- Position pump motor over grommet and firmly snap into place.
- Place reservoir into position in engine compartment, pivot the inboard side of the reservoir rearward.
- Connect the washer filler hose.
- Connect the washer hose.
- Connect the pump and sensor wire connectors.

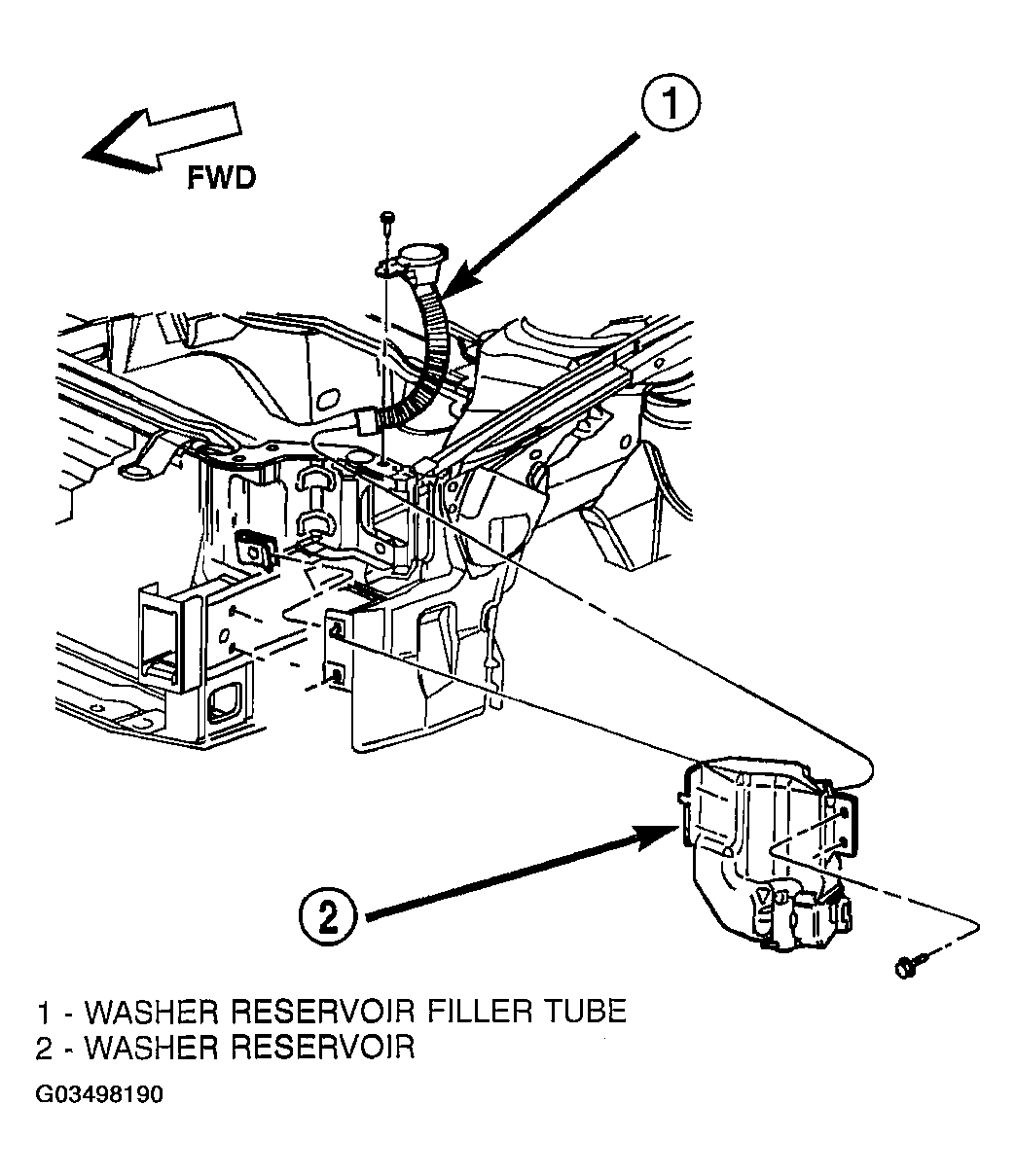

- Install the four retaining bolts to the washer reservoir (Figure ).
- Install the left headlamp assembly. Refer to HEADLAMP UNIT .
- Connect the negative battery cable remote terminal to the remote battery post.
