Front Fender Liner: Service and Repair

FRONT END SPLASH SHIELDS

REMOVAL

1. Hoist and support vehicle on safety stands. Refer to Vehicle Lifting.
2. Remove front wheel.

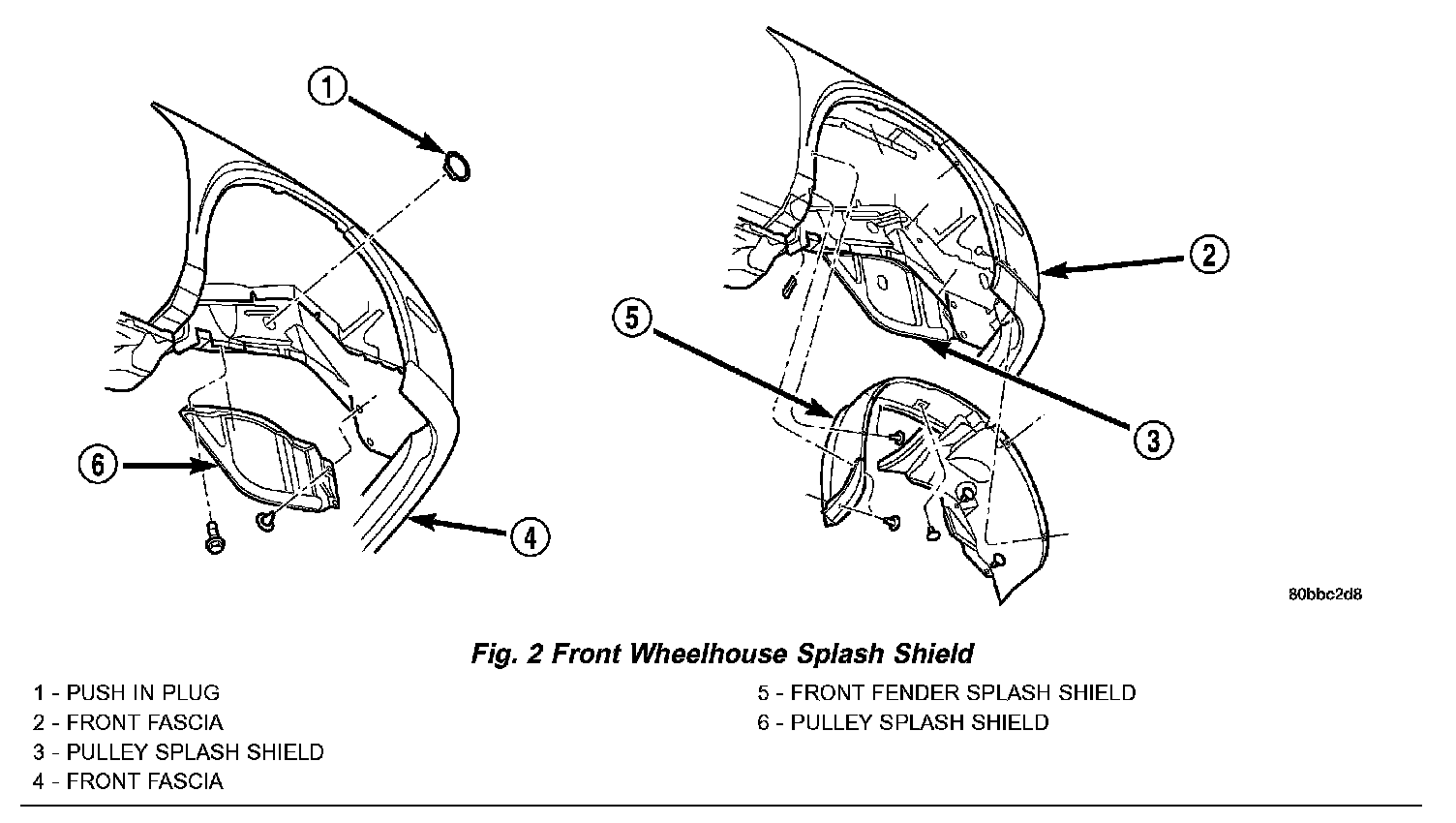

Fig. 2:

3. Remove push-in fasteners attaching splash shield to frame rail forward of suspension (Fig. 2).
4. Remove push in fasteners attaching splash shield to frame rail rearward of suspension.
5. Remove screws attaching wheelhouse splash shield to front fender.
6. Remove splash shield from vehicle.

INSTALLATION

1. Place splash shield in position on vehicle.
2. Install screws attaching wheelhouse splash shield to front fender.
3. Install push in fasteners attaching splash shield to frame rail rearward of suspension.
4. Install push in fasteners attaching splash shield to frame rail forward of suspension.
5. Install front wheel.
6. Lower vehicle.
