Blower Motor Resistor: Service and Repair

CAUTION: Stay clear of the blower motor and resistor block (Hot). Do not operate the blower motor with the resistor block removed.

REMOVAL
1. Remove windshield wipers.
2. Remove cowl top screen.

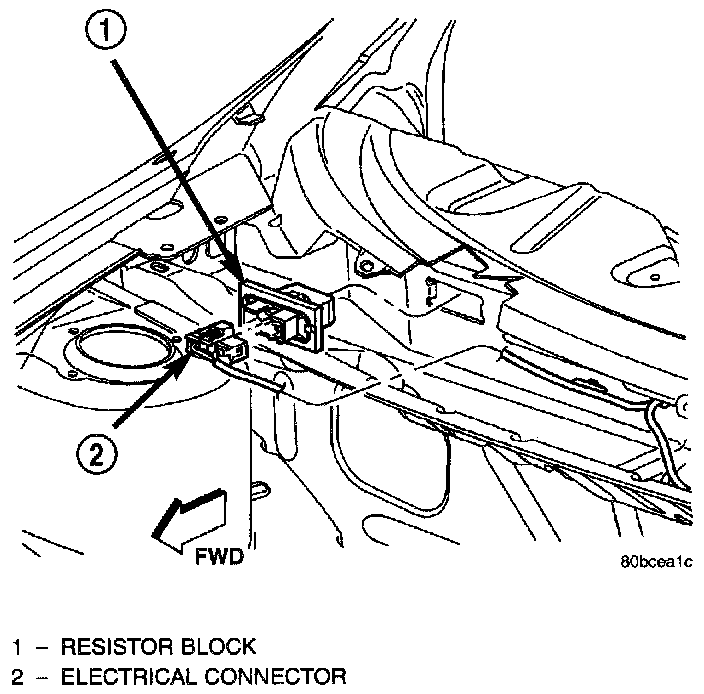

Blower Motor Resistor Block:

3. Disconnect the resistor block wiring connector.
4. Remove/unsnap resistor block from vehicle.

INSTALLATION
For installation, reverse the above procedures.
