Combination Switch: Service and Repair

REMOVAL

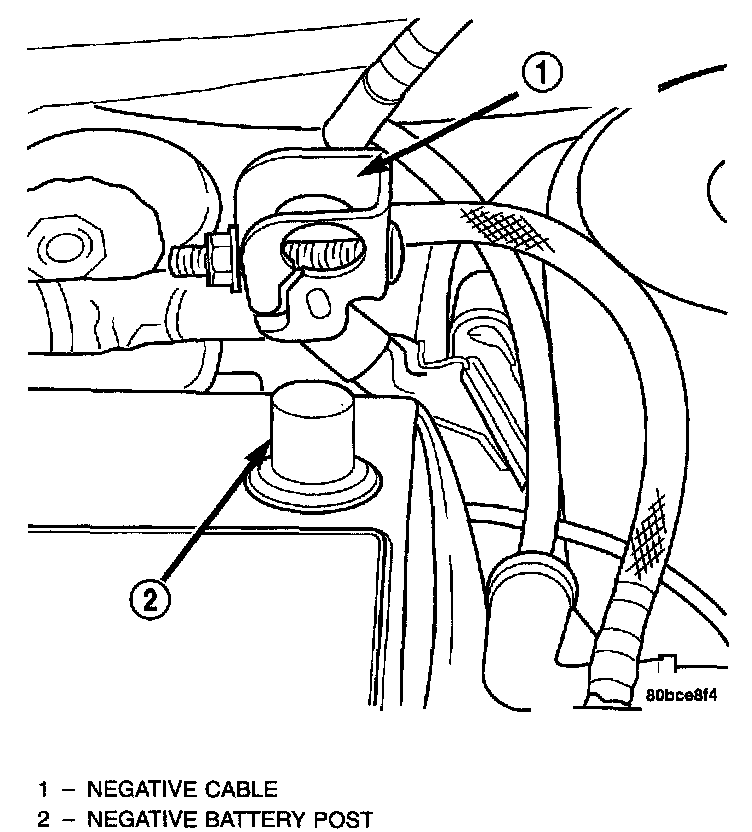

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove both upper and lower steering column shrouds. Refer to Instrument Panel Systems, Steering Column Shroud Removal and Installation.

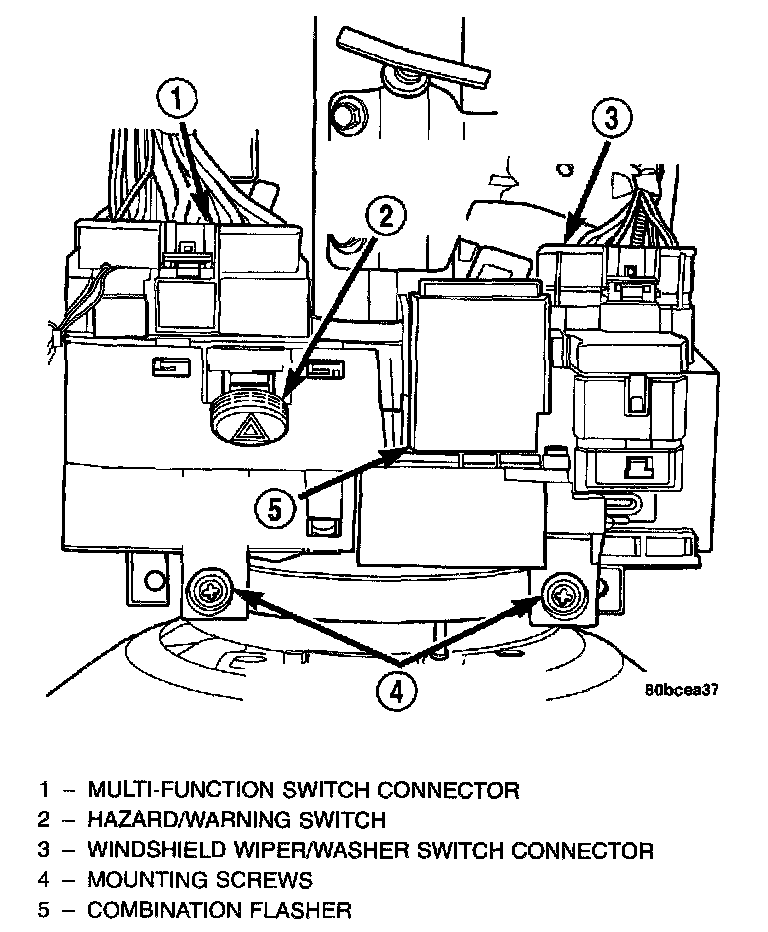

Multi-function Switch Remove/Install:

3. Disconnect both posi-lock harness connectors at the rear of the multi-function switch.
4. Remove multi-function switch mounting screws.
5. The combination flasher must be transferred to new multi-function switch if replacing.
6. The windshield wiper/washer switch must be transferred to the new multi-function switch.

INSTALLATION
For installation, reverse the above procedures.
- Tighten multi-function switch to column retaining screws to 3 Nm (27 in. lbs.) torque.
- Tighten steering column shroud retaining screws to 2 Nm (18 in. lbs.) torque.
