Battery Tray: Service and Repair

REMOVAL
1. Remove battery.

Battery Tray Terminal:

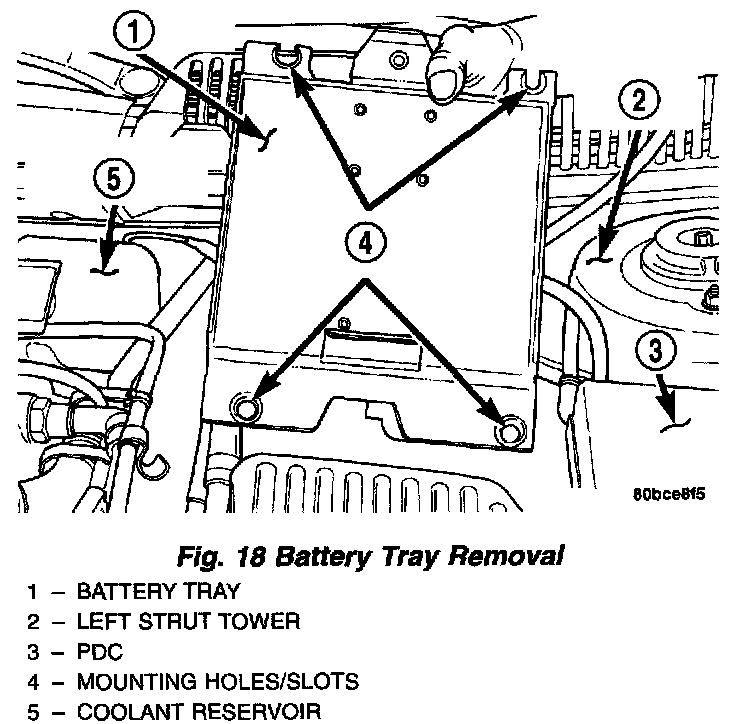

2. Remove two nuts to the rear and two bolts to the front of the battery tray.
3. Slide battery tray out form under the air cleaner assembly. Do not remove the air cleaner assembly.
4. Remove battery tray from vehicle.

INSTALLATION
For installation reverse the above procedures.
